Carbon Road Bike Frame X10 Flash Sale

1 Reviews
$ 849.99
In stock
Warranty policy, Learn More

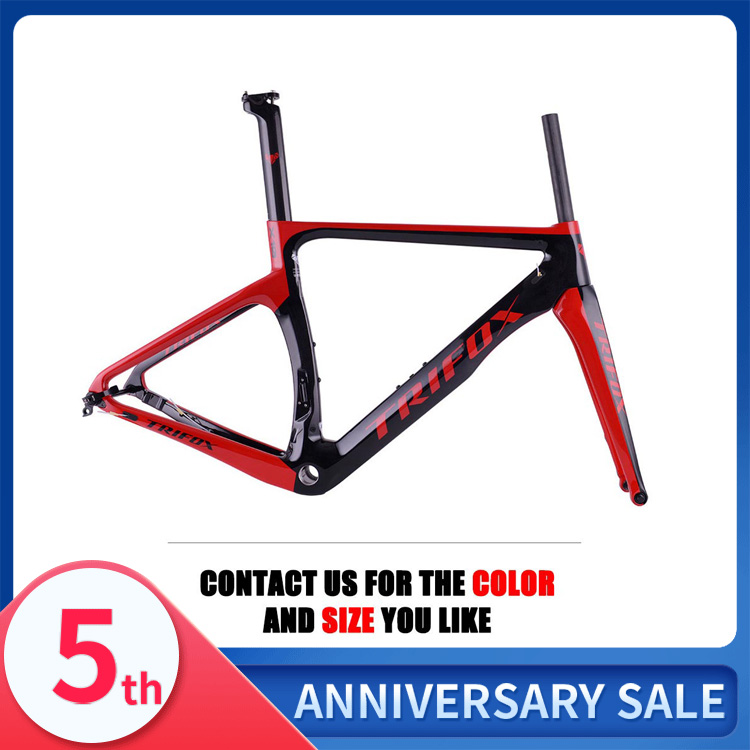

700C Carbon Road Bike Frameset X10

Product NameBike Frameset X10TA
TypeRoad Bike Frame
MaterialT800 Carbon Fibre
Max Wheels & Tire Size700 x 25C
StyleThru Axle
Fork Rake / Offset45mm
Derailleur Cables RoutingInternal
Available sizesXS / S / M / L XL
saddle installation methodLock up and down
InstallableDI2 / Mechanical derailleurs
Bottom BracketBSA - BB68 φ34mm Length:68mm
Braking SystemDisc Brake
Available ColorsRed / Camo / White
Package Content1 x Carbon Fiber Road Bike Frame X10 (Disc Brake)
1 x Fork
1 x Headset
1 x Seat Post
1 x Seatpost Clamp
1 x Derailleur Hanger
2 x Thru Axle (Front and Rear)
  • High rigid, lightweight combination.
    The frame adopts one-piece molding technology, so that the frame has a good force distribution performance.And the high-rigidity geometric structure of the frame makes the stability of the frame, the lateral rigidity of the front fork, the rigidity of the bottom bracket, and the comfort of the frame all achieve harmony and unity, the frame incorporates every tube and every detail into aerodynamics and ergonomics. The design concept is to reduce the hand offset from the tube shape, enhance the lateral rigidity, and provide pedaling efficiency, more like A comprehensive and high-performance tank, its advantage lies in its compatibility.

  • The carbon fiber raw materials is derived from Toray T800 high-quality. The carbon fiber is flexible on the outside and rigid on the inside. It is lighter than aluminum alloy, but more strength than steel. It has the characteristics of corrosion resistance, shock resistance and high modulus. It is important materials and always used in national defense, military and civilian applications. It not only has the inherent characteristics of carbon materials, but also has the soft processability of textile fibers. It is a new generation of reinforcing fibers which has many excellent properties.

  • 2-year warranty service.
  • Carbon Fibre Road Bike Frameset X10 Parameter

    A(mm)BB center to the top of seat tube455475495515535
    B(mm)Top tube length horizontal515530545560575
    C(°)Seat tube angle74.257473.57372.75
    D(°)Head tuhe angle717272.57373
    E(mm)Chainstay length405405405405405
    F(mm)BB Drop7171717171
    G(mm)Front Center573.5577.7583.5590598.5
    H(mm)Fork offset4545454545
    S(mm)Head tube length112125138152167

    700C Carbon Fibre Bike Frameset X10 Details 1
    Disc Carbon Road Bike Frame X10 Details 2
    Road Disc Trifox Carbonb Fibre Framesets X10 Details 3
    Size / ComponentsWeight
    XS - 49cm1157g ± 20g
    S - 52cm1188g ± 20g
    M - 54cm1247g ± 20g
    L - 56cm1271g ± 20g
    XL - 58cm1279g ± 20g
    Fork442g ± 2g
    Seatpost228g ± 2g
    Trifox 700C Carbon Frame Road Bike X10 Real Shot
    Trifox Carbon Fibre Road Bike Frame X10 Package Content
