700C Aluminium Road Bike C Brake R241
-
44 (155-170mm)
-
46 (165-180mm)
- Overview
- Specs
- Sizing
- Geometry
- Customers Reviews
- Ultralight seamless tube aluminium
- Large head tube, internal cable routing
- Aluminum alloy integrated handlebar with full internal cable routing and streamlined design
- TRIFOX hollow integrated cassette
- Shimano Tiagra 4700 Groupset 2x10-speed
*Please note - spec applies to all sizes unless listed separately
; ?>){kind=icon}
COCKPIT | Seatpost | Aluminum alloy, Internal Lock, 350mm, round rail saddle |
|---|---|
| Saddle | TRIFOX Road Bicycle Saddle, Comfortable,lightweight, Silica Gel |
| Handlebar | Aluminum alloy Integrated Handlebar, W:400*80mm, 23.8mm, Internal wiring, Aluminum alloy T4-T6 heat treatment, Black |
| Handlebar Tape | PU or Polyurethane, high quality EVA rubbing material, 2150*30mm |
| Fork | Aluminum Alloy, 700C; φ9x100 mm Quick Release |
| Weight | About 9.75kg |
DRIVETRAIN | Shifter | S-Ride SF-R500-L; SF-R500-R, TRIFOX U brake caliper, 2*10SPD |
|---|---|
| Front Derailleur | SHIMANO TIAGRA R4700 FD-4700-2S |
| Rear Derailleur | SHIMANO TIAGRA RD-4700-GS-10S |
| Cassette | SUNSHINE-10S, 11-32T |
| Cranksets | Aluminum alloy, 10-speed, 34-50T, 170m, Hollow integrated chainring |
| Chain | YBN-10S, 1/2"*3/32"*110L |
| Bottom Bracket | TRIFOX BSA - BB68 (φ 34mm, L 68mm) |
WHEELS & TIRES | Wheel | TRIFOX Aluminium wheelset 700C v brake, 40mm Rim Height, 14mm Inner Width, 20.7mm Outer Width |
|---|---|
| Tire | CST 700*25C, Clincher, 48MM F/V |
| Hub | Front QRx100mm; Rear QRx130mm; Ceramic, Front 2 Bearings; Rear 4 Bearings; TTNAluminum Alloy AL6160(body)+AL7075(Alxe); 4 Pawls, 30 HD SYSTEM |
| Spokes/Nipples | 14G*20H; 14G*24H, TW Stainless Steel, J bend |
| Freehub Body Material | 7075 aluminium alloy; Shimano/SRAM 8-11S; Compatible: SRAM XD 12S / SHIMANO MS MICRO SPLINE 12S |
FRAMESET | Frame | Alloy lightweight bicycle frame, AL6061 Aluminum Alloy, U brake caliper system, BSA-BB68(φ34mm,L68mm), Aluminum alloy T4-T6 heat treatment, φ10x130 mm Quick Release, Ultralight seamless tube aluminium |
|---|---|
| Size | 155-170mm（44）; 165-180mm （46） |
| Color | Blue/White/Champagne Gold |
| Size | Rider Height | Inseam |
|---|---|---|
| 44cm | 155-170mm | 65-80mm |
| 46cm | 165-180mm | 75-89mm |
| Place | Frame | 44cm | 46cm |
|---|---|---|---|
| A (°) | Head Tube Angle | 72 | 72 |
| B (°) | Seat Tube Angle | 74 | 74 |
| C (mm) | Chainstay Length | 410 | 410 |
| D (mm) | BB Drop | 70 | 70 |
| E (mm) | Wheel Base | 989.8 | 999.9 |
| F (mm) | Seat Tube Length | 440 | 460 |
| G (mm) | Stack | 523.6 | 542.7 |
| H (mm) | Top Tube Length Horizontal | 546.5 | 555.9 |
| I (mm) | Reach | 396.3 | 400.3 |
| J (mm) | Head Tube Length | 115 | 135 |
| K (mm) | Fork Length Full | 375 | 375 |
opiniones de los clientes ( 12 )
- All Reviews(12)
- with photos(1)
- 5 stars(11)
Por Antonio
Overall the bike is stable and reliable. after few rides I have good feeling with bike. brakes and gear is working fine, after several adjustments.
The champagne gold color is amazing I really like it.

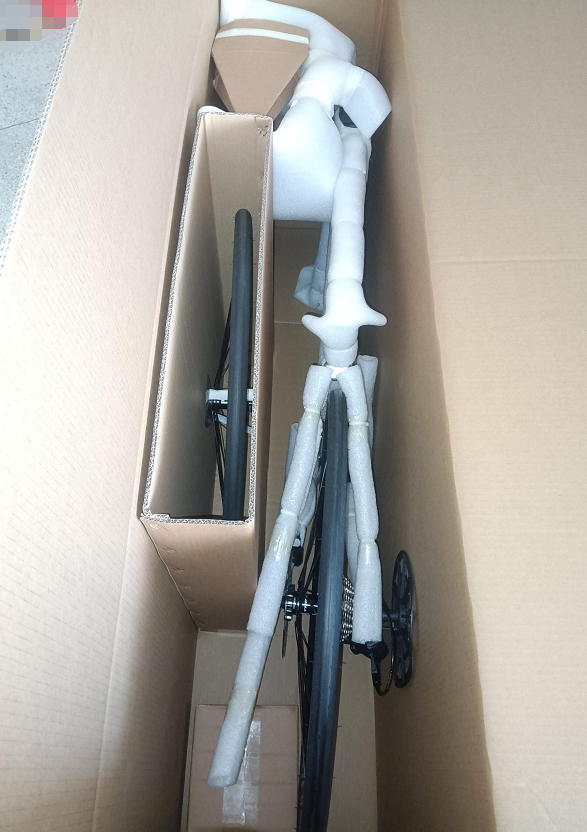

the Bike arrives almost assembled, and there are tools, but the minimum requirement is few screwdriver. Easy to assemble for everyone, but if you are not comfortable just go to a bike shop.
The chassis is Alluminium and the bike is light about 9.5kg
Overall I really recommend this bike for beginners and for everyone who wants to stars long routes.
Have a nice ride!
Por Mark
Por Diana Temerbulatova
Por YVES LAURION
Por Keiffer Nelson
Por Alejandro R.
Pros:
- Assembly isn't bad at all. Crank, chain, and brakes are already on the frame. Need to tighten some screws up as well as connect some pieces and your good. Handlebar is already set up with tape and brakes so there is no concern for setting that up.
- 2*10 speeds have a good high and low for the everyday rider
- Tires are 700x28 so they are a little more forgiving.
- Price point is great
- Shifter/brake from Shimano very easy to use and friendly for new rider.
- Quick release tires
Cons:
- Brakes needed fine tuning to work appropriately.
For you heavier riders out there: I'm 275 pounds and I'm able to ride this thing with no issues. This can help you get up and riding until you are ready for your next one!
I would recommend this bike to everyone and will update this comment if anything arises. Definitely 5 stars for the price.
Por Jimmy B
Por Rachel
Por Kathleen Bohan
Por lance boudoin
Por Antonio
Overall the bike is stable and reliable. after few rides I have good feeling with bike. brakes and gear is working fine, after several adjustments.
The champagne gold color is amazing I really like it.
the Bike arrives almost assembled, and there are tools, but the minimum requirement is few screwdriver. Easy to assemble for everyone, but if you are not comfortable just go to a bike shop.
The chassis is Alluminium and the bike is light about 9.5kg
Overall I really recommend this bike for beginners and for everyone who wants to stars long routes.
Have a nice ride!
Por Antonio
Overall the bike is stable and reliable. after few rides I have good feeling with bike. brakes and gear is working fine, after several adjustments.
The champagne gold color is amazing I really like it.
the Bike arrives almost assembled, and there are tools, but the minimum requirement is few screwdriver. Easy to assemble for everyone, but if you are not comfortable just go to a bike shop.
The chassis is Alluminium and the bike is light about 9.5kg
Overall I really recommend this bike for beginners and for everyone who wants to stars long routes.
Have a nice ride!
Por Diana Temerbulatova
Por YVES LAURION
Por Keiffer Nelson
Por Alejandro R.
Pros:
- Assembly isn't bad at all. Crank, chain, and brakes are already on the frame. Need to tighten some screws up as well as connect some pieces and your good. Handlebar is already set up with tape and brakes so there is no concern for setting that up.
- 2*10 speeds have a good high and low for the everyday rider
- Tires are 700x28 so they are a little more forgiving.
- Price point is great
- Shifter/brake from Shimano very easy to use and friendly for new rider.
- Quick release tires
Cons:
- Brakes needed fine tuning to work appropriately.
For you heavier riders out there: I'm 275 pounds and I'm able to ride this thing with no issues. This can help you get up and riding until you are ready for your next one!
I would recommend this bike to everyone and will update this comment if anything arises. Definitely 5 stars for the price.
Por Jimmy B
Por Rachel
Por Kathleen Bohan
Por lance boudoin
Por Matt Hartman Sr.
