TRAIL II PRO

31 Reseñas
$ 969.00 $1599.00 -39%
Painting:
Tamaño:
  • 17（160-175cm）
  • 19（176-190cm）
Cant.:
Preventa (Acerca de 50 días hábiles)
Póliza de garantía, Aprende más
  • Product Details
  • Customers Reviews

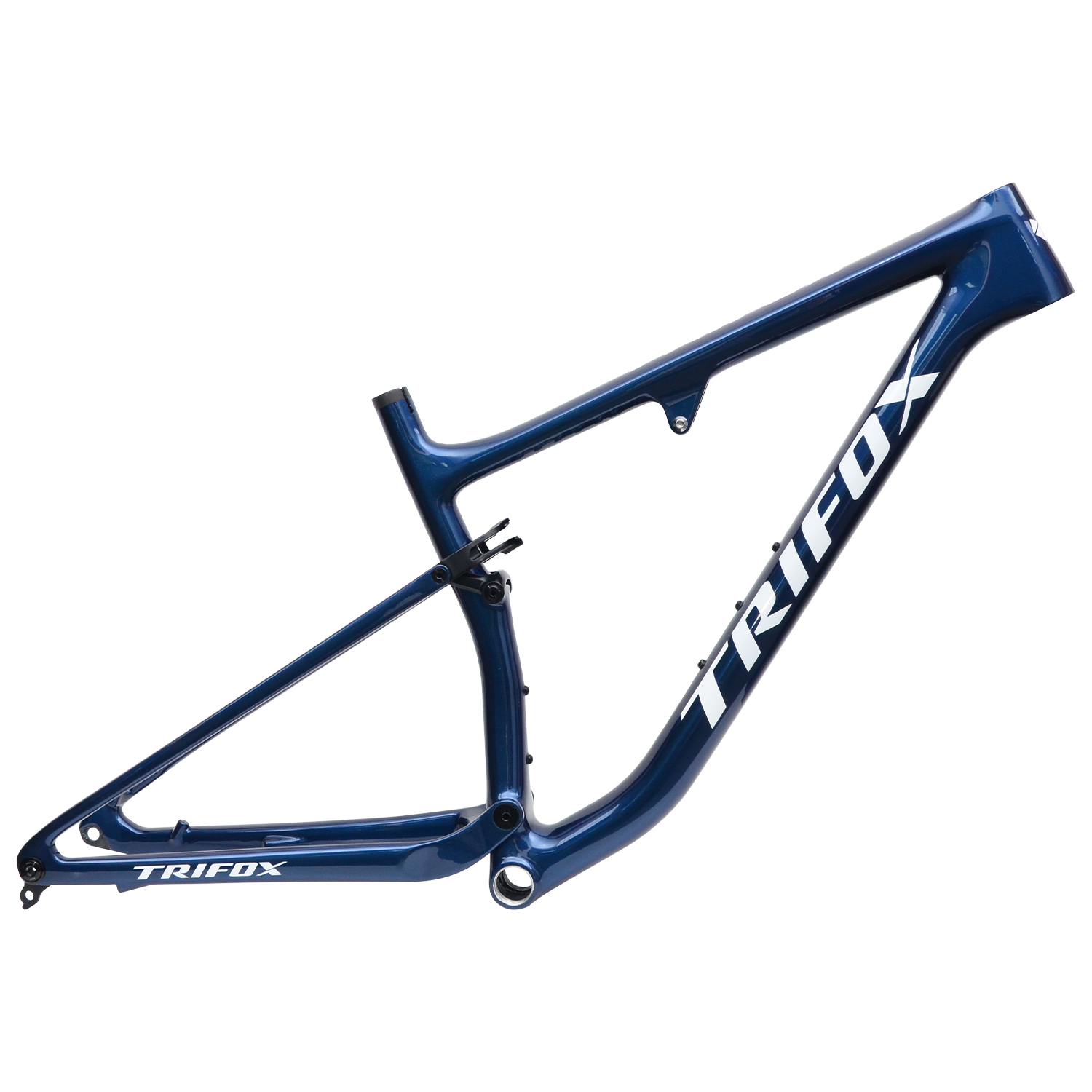

29er XC Full Suspension Carbon MTB Frame TRAIL II PRO

Parameter

BrandTRIFOX
ModelTRAIL II PRO
Product NameXC Dual Suspension Mountain Bike Frame
TypeMTB Frame
StyleFull Suspension
MaterialT800 Full Carbon Fiber
WaveUD
FinishGlossy
Sizes29er * 17/19''

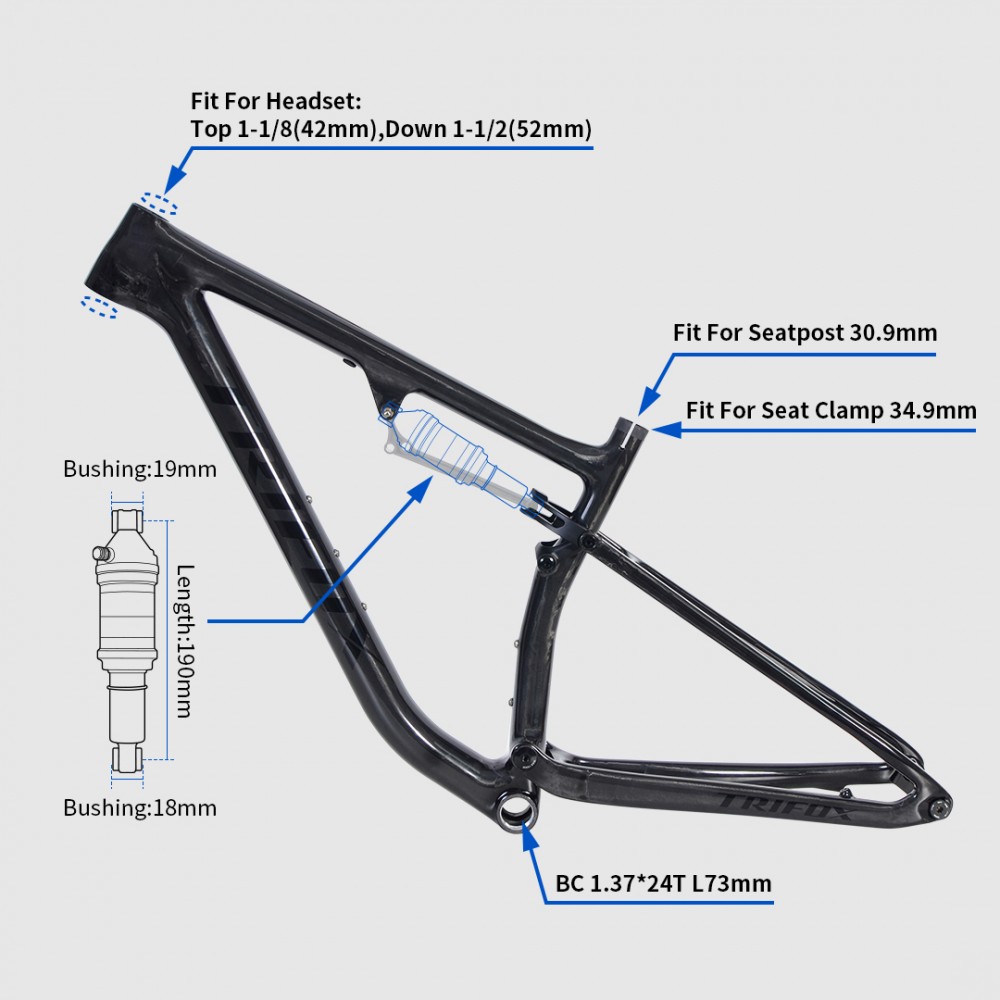

Head Tube1-1/8"-1-1/2"(42-52mm)

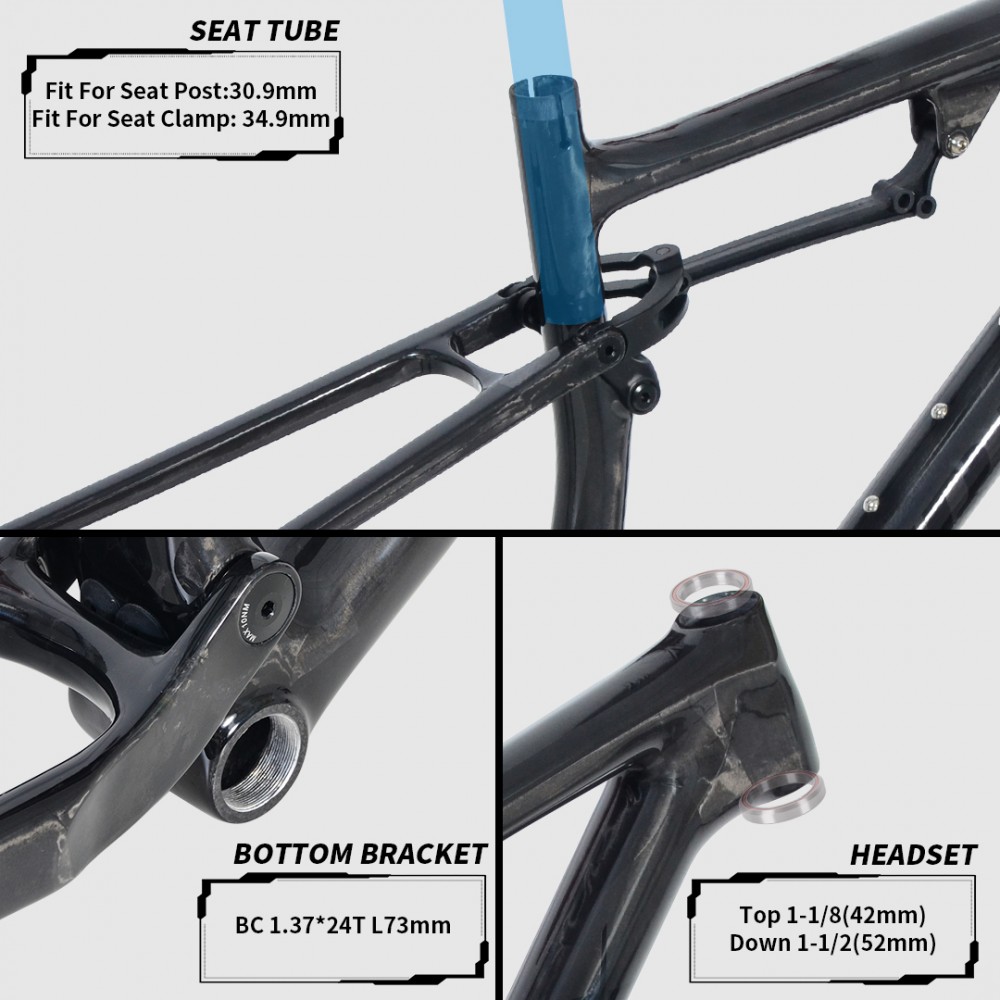

Suitable Seatpost30.9mm (Clamp: φ34.9mm)
Bottom BracketBC 1.37*24T(BB68)

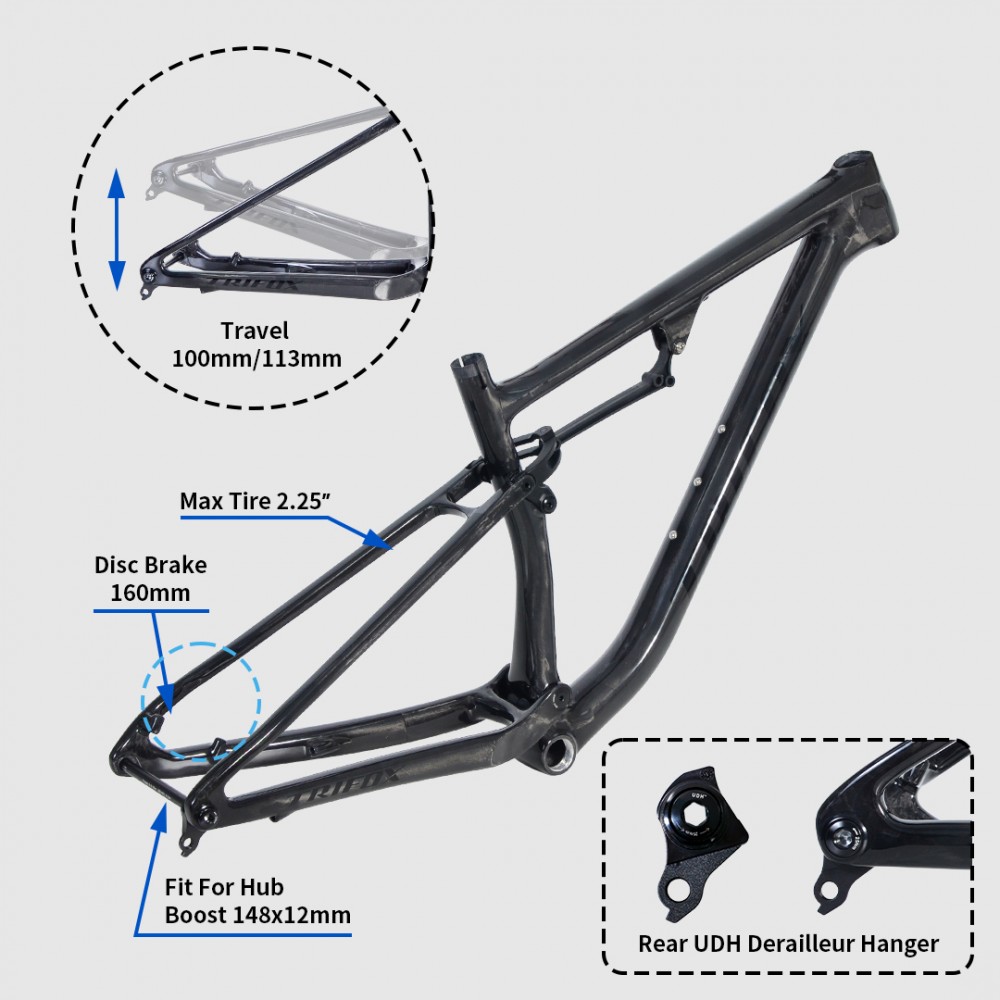

Disc Brake Rotor160mm / 180mm

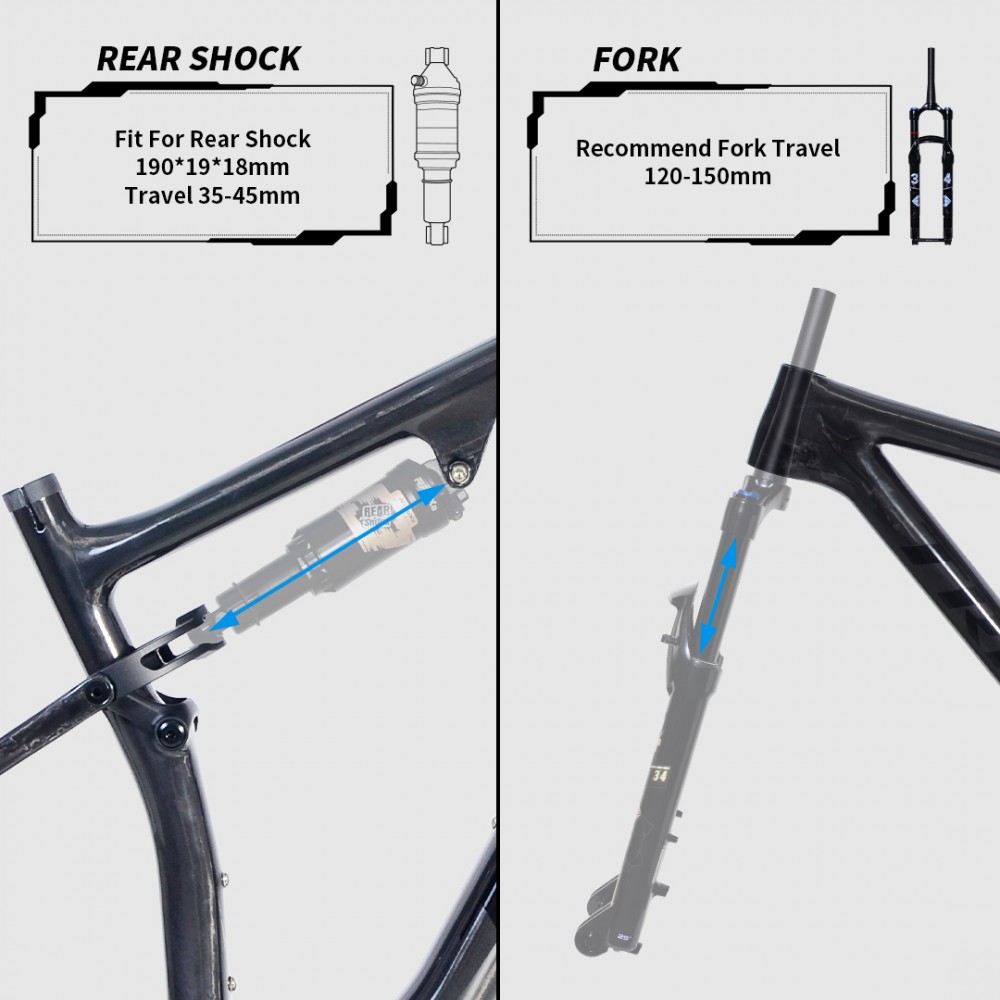

Rear Shock190mm; travel: 35mm-45mm
Max Tire29"*2.25"
CranksetMax 36T
O.L.D (BOOST)Axle: Ø12*148mm
Cable RoutingInternal Cable Routing
Dropout StyleUDH; Thru Axle
Braking SystemDisc Brake
Warranty2 years
Seatpost insertion length7cm to 12cm
Weight (Hanger, Thru-axle, Frameset)17'' - 1680g±20g
19'' - 1700g±20g

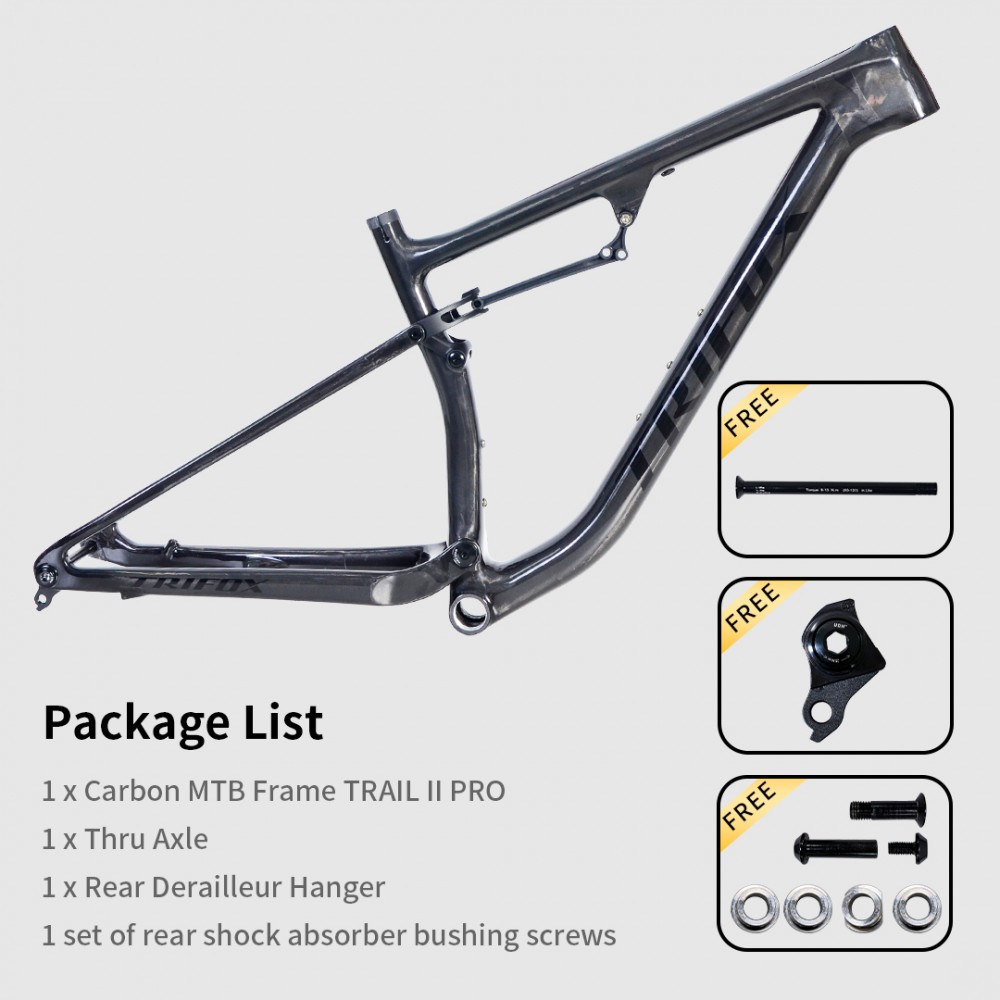

Package Content1 x Carbon MTB Frame TRAIL II PRO
1 x Thru Axle Skewer
1 x Rear Derailleur Hanger
1 x use for Brand Bushings
1 x Headset

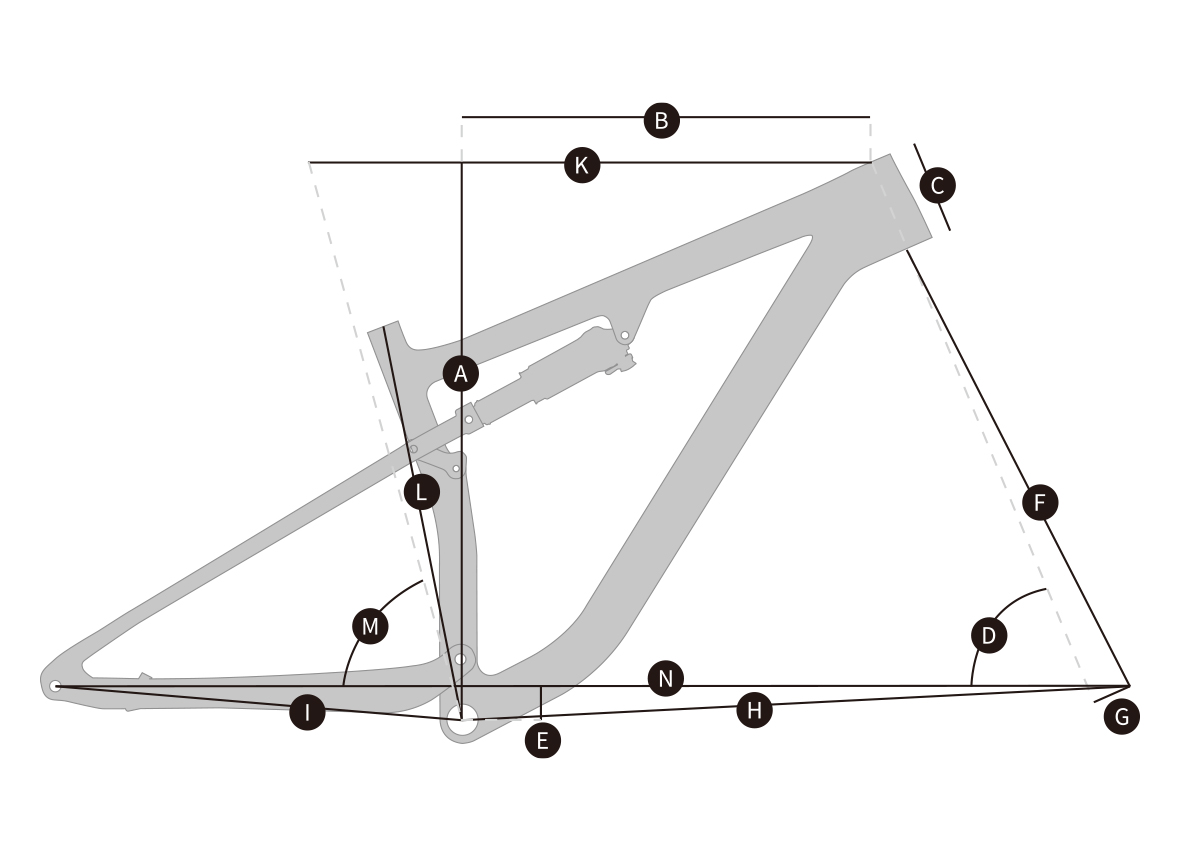

Product Geometry

T800 Carbon full suspension bike frame TRAIL II PRO Geometry

PlaceName17''19''
A(mm)Stack597.1606.1
B(mm)Reach436.8470.0
C(mm)Head Tube Length100115
D(°)Head Tube Angle67.5°67.5°
E(mm)BB Drop87.287.2
F(mm)Fork Length Full523.9523
G(mm)Fork Rake / Offset42.542.5
H(mm)Front Center716.2754.6
I(mm)Chainstay Length437.2436.7
K(mm)Top Tube Length Horizontal602.4638.1
L(mm)Seat Tube Length430.6470
M(°)Seat Tube Angle74.574.5
N(mm)Wheel Genter Distance1150.91189.5
(CM)Size160-175175-190

opiniones de los clientes ( 31 )

5.0 / 5.0
5 estrellas 96.8%
4 estrellas 3.3%
3 estrellas 0%
2 estrellas 0%
1 estrellas 0%
  • All Reviews(31)
  • with photos(2)
  • 5 stars(30)

Por Alberto

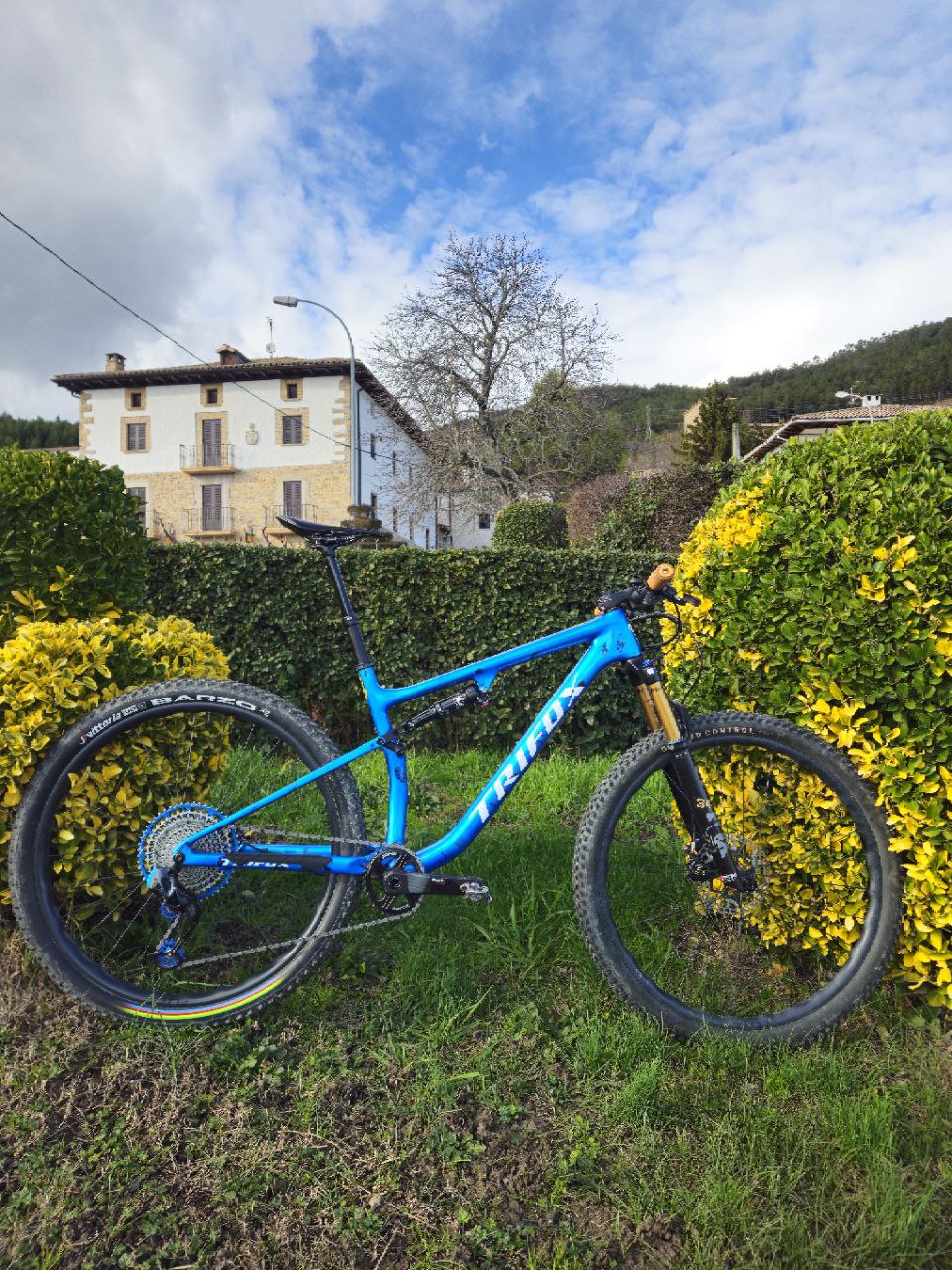

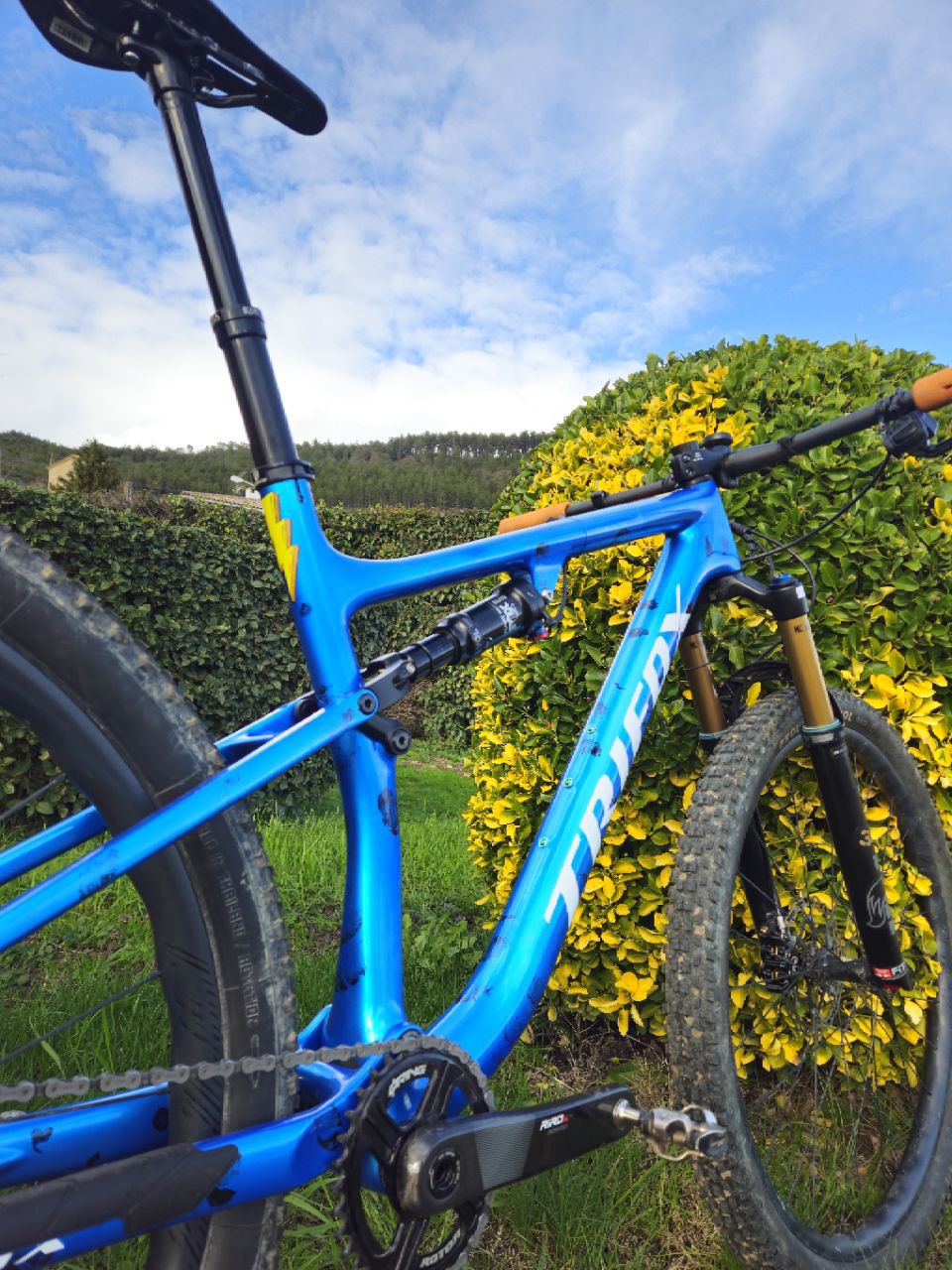

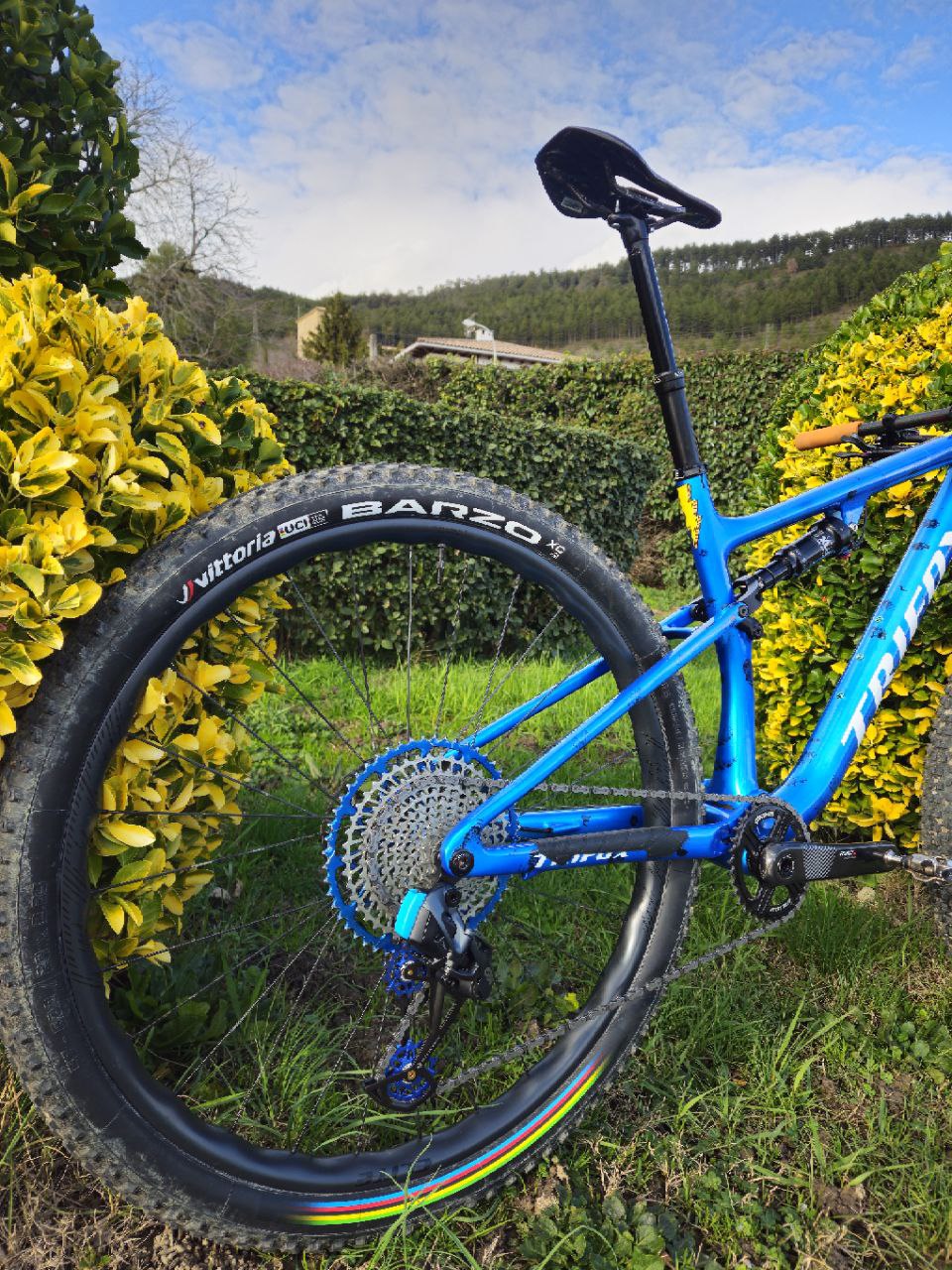

Cuadro ligero, en cuanto llego me puse manos a la obra para montarlo, pasar los cables traseros con guia cables mas facil y comodo. El basculante se me hizo un poco duro antes de montarle el amortiguador, IMPORTANTE desmontar los tornillos, engrasar todo bien y echar una gota de pegamento de roscas para evitar que se suelten. por lo demas estoy contento he creado una bici de 10.8kg RECOMENDABLE 100% A DIA DE HOY!! Prueba con 300km a fecha de hoy.
Review
Review
Review
Review
2026-02-24 22:38:24

Por c.roundy u.

[ Painting : Orange & Blue + Size : 17（160-175cm） ]
The frame came well packaged and fairly quickly.    The frame itself is well painted,  the whole thing looks solid. The frame feels stiff while driving.  Good quality for a good price. I recommend.
Review
2025-11-12 15:35:40
We bought this frame to build an XC race bike that my son will use to compete the upcoming season.The weight of the frame is 1700gr. It looks really good and the bearings in the linkage feel smooth.From my measurments the rear travel will be around 90mm with a 190X45 shock since the shock connects directly to the seatstays. There is 74mm between the chainstays so we will try to run Rick XC 2.4 tires.I will update when we get all the parts and start to build the bike.
2026-02-09 05:35:56

Por Danail I.

[ Painting : White Glossy + Size : 19（176-190cm） ]
Thank you for the frame, I started assembling it the same evening. The frame is very light! I'm looking forward to the other private ones for him.
2025-11-19 15:35:10

Por Szilbereki Z.

[ Painting : White Glossy + Size : 17（160-175cm） ]
Superior quality frame, intuitive selling, perfetto!
2025-11-19 13:50:20

Por Sergey s.

[ Painting : stellar blue + Size : 17（160-175cm） ]
This frame is pretty sold! I've been working at a bike shop for the past 10 years and had some parts laying around for a slope style build.I wanted to keep the price down and so far this has exceeded my expectations! It's well built and we'll thought out. From someone working in the industry I would rate this frame highly! The only issue I had was the frame arrived after the expected delivery date. This came to no surprise because the USA importing regulations
2025-11-12 11:35:20

Por Vladislav

[ Painting : White Glossy + Size : 17（160-175cm） ]
At this moment- I'm really positive suprised about qualitty and  fast shipping, Good support service as well. Frame (Ma) weight with axle  1698 grams (17"), today- I had got first ride - It was impresive, really fast bike with weight 10,95 kg.  Color od frame is awesome
2025-11-07 19:30:10

Por Denis M.

[ Painting : Orange & Blue + Size : 17（160-175cm） ]
Very happy with the quality of the frame.The clear coat is weak compared to my name brand bikes. Aside from those issues, this bike has completely exceeded my expectations. There is no binding on the suspension and the frame looks well manufactured. I bought a size 17' and couldn't be happier with the choice.  I've ripped this bike into berms and done some 10-15ft jumps. Solid bike, great choice. Worth the cost.
2025-11-05 22:45:50

Por Yoko F.

[ Painting : Orange & Blue + Size : 19（176-190cm） ]
At first sight very good quality.  19 size, glossy whitet. There was a litle delay, but the frame is realy good.
2025-11-04 14:35:50

Por Dmitran H.

[ Painting : Orange & Blue + Size : 19（176-190cm） ]
Super frame, I made her a cross King bike. All very well matched, bearing holes and support as well! Beautiful color with gloss. I have 185 cm and more than 90 kg of weight, the frame calmly holds! Thanks Trifox!
2025-11-03 13:30:40

Por Alberto

Cuadro ligero, en cuanto llego me puse manos a la obra para montarlo, pasar los cables traseros con guia cables mas facil y comodo. El basculante se me hizo un poco duro antes de montarle el amortiguador, IMPORTANTE desmontar los tornillos, engrasar todo bien y echar una gota de pegamento de roscas para evitar que se suelten. por lo demas estoy contento he creado una bici de 10.8kg RECOMENDABLE 100% A DIA DE HOY!! Prueba con 300km a fecha de hoy.
Review
Review
Review
Review
2026-02-24 22:38:24

Por c.roundy u.

[ Painting : Orange & Blue + Size : 17（160-175cm） ]
The frame came well packaged and fairly quickly.    The frame itself is well painted,  the whole thing looks solid. The frame feels stiff while driving.  Good quality for a good price. I recommend.
Review
2025-11-12 15:35:40

Por Alberto

Cuadro ligero, en cuanto llego me puse manos a la obra para montarlo, pasar los cables traseros con guia cables mas facil y comodo. El basculante se me hizo un poco duro antes de montarle el amortiguador, IMPORTANTE desmontar los tornillos, engrasar todo bien y echar una gota de pegamento de roscas para evitar que se suelten. por lo demas estoy contento he creado una bici de 10.8kg RECOMENDABLE 100% A DIA DE HOY!! Prueba con 300km a fecha de hoy.
Review
Review
Review
Review
2026-02-24 22:38:24

Por c.roundy u.

[ Painting : Orange & Blue + Size : 17（160-175cm） ]
The frame came well packaged and fairly quickly.    The frame itself is well painted,  the whole thing looks solid. The frame feels stiff while driving.  Good quality for a good price. I recommend.
Review
2025-11-12 15:35:40
We bought this frame to build an XC race bike that my son will use to compete the upcoming season.The weight of the frame is 1700gr. It looks really good and the bearings in the linkage feel smooth.From my measurments the rear travel will be around 90mm with a 190X45 shock since the shock connects directly to the seatstays. There is 74mm between the chainstays so we will try to run Rick XC 2.4 tires.I will update when we get all the parts and start to build the bike.
2026-02-09 05:35:56

Por Danail I.

[ Painting : White Glossy + Size : 19（176-190cm） ]
Thank you for the frame, I started assembling it the same evening. The frame is very light! I'm looking forward to the other private ones for him.
2025-11-19 15:35:10

Por Szilbereki Z.

[ Painting : White Glossy + Size : 17（160-175cm） ]
Superior quality frame, intuitive selling, perfetto!
2025-11-19 13:50:20

Por Sergey s.

[ Painting : stellar blue + Size : 17（160-175cm） ]
This frame is pretty sold! I've been working at a bike shop for the past 10 years and had some parts laying around for a slope style build.I wanted to keep the price down and so far this has exceeded my expectations! It's well built and we'll thought out. From someone working in the industry I would rate this frame highly! The only issue I had was the frame arrived after the expected delivery date. This came to no surprise because the USA importing regulations
2025-11-12 11:35:20

Por Denis M.

[ Painting : Orange & Blue + Size : 17（160-175cm） ]
Very happy with the quality of the frame.The clear coat is weak compared to my name brand bikes. Aside from those issues, this bike has completely exceeded my expectations. There is no binding on the suspension and the frame looks well manufactured. I bought a size 17' and couldn't be happier with the choice.  I've ripped this bike into berms and done some 10-15ft jumps. Solid bike, great choice. Worth the cost.
2025-11-05 22:45:50

Por Yoko F.

[ Painting : Orange & Blue + Size : 19（176-190cm） ]
At first sight very good quality.  19 size, glossy whitet. There was a litle delay, but the frame is realy good.
2025-11-04 14:35:50

Por Dmitran H.

[ Painting : Orange & Blue + Size : 19（176-190cm） ]
Super frame, I made her a cross King bike. All very well matched, bearing holes and support as well! Beautiful color with gloss. I have 185 cm and more than 90 kg of weight, the frame calmly holds! Thanks Trifox!
2025-11-03 13:30:40

Por Maks m

[ Painting : Orange & Blue + Size : 19（176-190cm） ]
The frame took a short time to arrive, less than a month. The box arrived dented, but everything inside was intact and without scratches. Overall, I really liked the frame. This is the first suspension I assembled, and I am very pleased with the performance of the suspension.
2025-11-02 10:34:47
