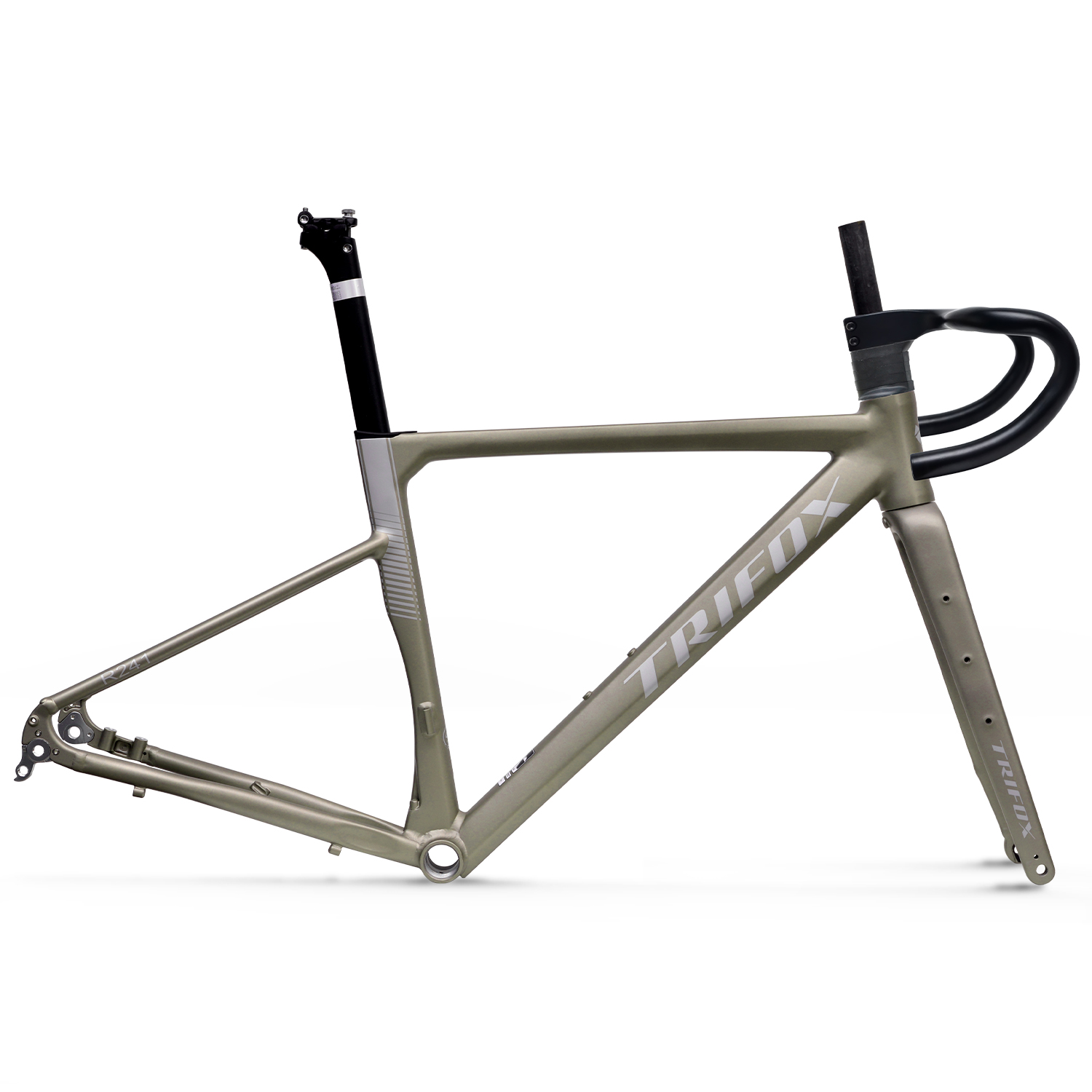

Aluminum Road Bike Frameset R241TA

Name: Aluminum Road Bike Frameset R241TA
Brand: Trifox
SKU: R241TAFS-Blue-155-170mm44cm
Price: 309.00 USD
Availability: InStock
Rating: 5.0 (15 reviews)

15 Reseñas

$ 309.00 $699.00 -56%

Painting:

Tamaño:

155-170mm（44cm)
165-180mm （46cm）

Cant.:

En stock

Póliza de garantía, Aprende más

Product Details
Customers Reviews

700c Aluminum Road Bike Disc Brake Frameset R241TA

Parameter

Brand	Trifox
Model	R241TA
Product Name	Aluminum Bike Frameset R241TA
Type	Road Bike Frame
Style	Aluminum Alloy Disc Brake Frameset, Triple butted
Material	6061 Lightweight Aluminum Alloy, Aluminum alloy T4-T6 heat treatment
Finish	Color Painting
Installable	DI2 and Mechanical
Headtube	52cm
Bottom Bracket	BSA - BB68 (φ 34mm, L 68mm)
Available sizes	44 / 46cm
Available Colors	Blue/White/Champagne Gold
Front O.L.D	φ12*100mm Thru Axle
Rear O.L.D	φ12*142mm Thru Axle
Braking System	Disc Brake
Max Wheels & Tire Size	700 * 32c
Dropout	Thru Axle
Warranty	2 Years
Seatpost insertion length	7cm to 12cm
Package Content	1 x Aluminum Road Bike Disc Brake Frameset R241TA
	1 x Aluminum Alloy Integrated Handlebar (400*80mm)
	1 x Carbon Fiber Fork
	1 x Aluminum Alloy SeatPost
	1 x Headset
	1 x Seatpost Clamp
	1 x Rear Derailleur Hanger(on the frame)

Trifox 6061 Lightweight Aluminum Alloy R241TA Banner

Product Geometry

Trifox Lightweight Aluminum Alloy R241TA Geometry

Frame Parts		44cm	46m
Head Tube Angle	A(°)	72	72
Seat Tube Angle	B(°)	74	74
Chainstay Length	C(mm)	410	410
BB Drop	D(mm)	70	70
Wheelbase	E(mm)	989.8	999.9
Seat Tube Lenght	F(mm)	440	460
Stack	G(mm)	523.6	542.7
Top Tube Lenght Horizontal	H(mm)	546.5	555.9
Reach	I(mm)	396.3	400.3
Head Tube Length	J(mm)	115	135
Fork Length Full	K(mm)	375	375

Internal wiring diagram

Product Weight

Frame Size	Weight
44cm	1790g ± 30g
46cm	1820g ± 30g
Fork	455g ± 30g
Handlebar	628g ± 30g
Seatpost	326g ± 30g

Product Details

Trifox carbon fibre bike R241TA Details 01

opiniones de los clientes ( 15 )

5.0 / 5.0

5 estrellas 93.4%

4 estrellas 6.7%

3 estrellas 0%

2 estrellas 0%

1 estrellas 0%

All Reviews(15)
with photos(0)
5 stars(14)

Por Derek

[ Painting : Blue + Size : 155-170mm（44cm) ]

Upgraded from an old steel frame. Wow. The weight saving is immediately noticeable, especially on climbs. The disc brake compatibility is future-proof, and the internal routing is so clean. It looks and feels like a frame costing three times as much. Zero complaints. Just pure value.

2025-12-07 10:48:03

Por Alex K.

[ Painting : White + Size : 155-170mm（44cm) ]

This is my first frame-up build and the R241TA made it incredibly accessible. For just over $300, you get a legit triple-butted aluminum frame, a full carbon fork, and even an integrated handlebar. The finish in champagne gold is way better in person. It rides stiff and responsive. An unbelievable gateway into custom builds.

2025-11-08 16:30:30

Por James A

[ Painting : Blue + Size : 155-170mm（44cm) ]

It took about 3 weeks to arrive in Belarus. The frame itself seems fine. The seller is tactful, polite, and responsible, and answered questions promptly. After the assembly is completed, I will add a review.

2025-10-22 19:35:30

Por Sabrina K

[ Painting : champagne gold + Size : 165-180mm （46cm） ]

So I finally built a bike from scratch and she is beautiful! All in all just under 9 kg plus pedals. Really happy with it. Shipping was faster than expected. Highly recommended!

2025-10-16 16:35:50

Por Andrew

[ Painting : White + Size : 165-180mm （46cm） ]

very light frame, everything was carefully packed and heavily wrapped with film, it arrived earlier than originally stated, the seller sent a photo of the frame before packaging.

2025-10-10 08:45:10

Por Konstantin

[ Painting : White + Size : 155-170mm（44cm) ]

Built up very well. Super clean look. Geometry is excellent rides fantastic

2025-10-08 13:35:20

Por Diego R.

[ Painting : Blue + Size : 155-170mm（44cm) ]

¡Proyecto completado! Montar la bicicleta con este cuadro fue sencillo. Los pasacables internos están bien diseñados. El conjunto de aluminio con horquilla de carbono le da una rigidez y confianza increíbles en los descensos. Para ciclistas que buscan algo bueno, bonito y sin pagar una fortuna, esta es la opción.

2025-10-04 15:40:50

Por Timur

[ Painting : Blue + Size : 165-180mm （46cm） ]

Wow. Great road frameset. Much better looking in the flesh than in the listing photos. Powder coat finish is excellent. Super well packed. What else can I say, great value . Will post built photos later hopefully

2025-10-02 23:40:30

Por Carlos G.

[ Painting : Blue + Size : 155-170mm（44cm) ]

¡Excelente relación calidad-precio! El cuadro R241TA es mucho más ligero de lo que esperaba y la horquilla de carbono funciona de maravilla. El acabado en azul es precioso. El envío desde China a España fue rápido y, lo mejor de todo, ¡sin problemas de aduanas ni tasas sorpresa! Muy contento con la compra, totalmente recomendable para un proyecto de montaje.

2025-09-24 13:30:50

Por Lucía M.

[ Painting : White + Size : 155-170mm（44cm) ]

Me encantó. Compré el color blanco y el cuadro es una pasada, muy bien acabado. La geometría es muy cómoda para rutas largas. Todo llegó perfectamente embalado, sin un solo rasguño. Por este precio en Europa, no encuentras nada parecido. Estoy deseando terminar de montar la bici y salir a rodar.

2025-09-17 14:30:50

Por Derek

[ Painting : Blue + Size : 155-170mm（44cm) ]

2025-12-07 10:48:03

Por Alex K.

[ Painting : White + Size : 155-170mm（44cm) ]

2025-11-08 16:30:30

Por James A

[ Painting : Blue + Size : 155-170mm（44cm) ]

2025-10-22 19:35:30

Por Andrew

[ Painting : White + Size : 165-180mm （46cm） ]

very light frame, everything was carefully packed and heavily wrapped with film, it arrived earlier than originally stated, the seller sent a photo of the frame before packaging.

2025-10-10 08:45:10

Por Konstantin

[ Painting : White + Size : 155-170mm（44cm) ]

Built up very well. Super clean look. Geometry is excellent rides fantastic

2025-10-08 13:35:20

Por Diego R.

[ Painting : Blue + Size : 155-170mm（44cm) ]

2025-10-04 15:40:50

Por Timur

[ Painting : Blue + Size : 165-180mm （46cm） ]

2025-10-02 23:40:30

Por Carlos G.

[ Painting : Blue + Size : 155-170mm（44cm) ]

2025-09-24 13:30:50

Por Lucía M.

[ Painting : White + Size : 155-170mm（44cm) ]

2025-09-17 14:30:50

Por Viktor G

[ Painting : champagne gold + Size : 155-170mm（44cm) ]

Everything looks great and I like the color very much, I will check it later.

2025-09-11 10:35:30

Ver todas las reseñas (15)

Descripción

700c Aluminum Road Bike Disc Brake Frameset R241TA

Parameter

Brand	Trifox
Model	R241TA
Product Name	Aluminum Bike Frameset R241TA
Type	Road Bike Frame
Style	Aluminum Alloy Disc Brake Frameset, Triple butted
Material	6061 Lightweight Aluminum Alloy, Aluminum alloy T4-T6 heat treatment
Finish	Color Painting
Installable	DI2 and Mechanical
Headtube	52cm
Bottom Bracket	BSA - BB68 (φ 34mm, L 68mm)
Available sizes	44 / 46cm
Available Colors	Blue/White/Champagne Gold
Front O.L.D	φ12*100mm Thru Axle
Rear O.L.D	φ12*142mm Thru Axle
Braking System	Disc Brake
Max Wheels & Tire Size	700 * 32c
Dropout	Thru Axle
Warranty	2 Years
Seatpost insertion length	7cm to 12cm
Package Content	1 x Aluminum Road Bike Disc Brake Frameset R241TA
	1 x Aluminum Alloy Integrated Handlebar (400*80mm)
	1 x Carbon Fiber Fork
	1 x Aluminum Alloy SeatPost
	1 x Headset
	1 x Seatpost Clamp
	1 x Rear Derailleur Hanger(on the frame)

Product Geometry

Frame Parts		44cm	46m
Head Tube Angle	A(°)	72	72
Seat Tube Angle	B(°)	74	74
Chainstay Length	C(mm)	410	410
BB Drop	D(mm)	70	70
Wheelbase	E(mm)	989.8	999.9
Seat Tube Lenght	F(mm)	440	460
Stack	G(mm)	523.6	542.7
Top Tube Lenght Horizontal	H(mm)	546.5	555.9
Reach	I(mm)	396.3	400.3
Head Tube Length	J(mm)	115	135
Fork Length Full	K(mm)	375	375

Internal wiring diagram

Product Weight

Frame Size	Weight
44cm	1790g ± 30g
46cm	1820g ± 30g
Fork	455g ± 30g
Handlebar	628g ± 30g
Seatpost	326g ± 30g
