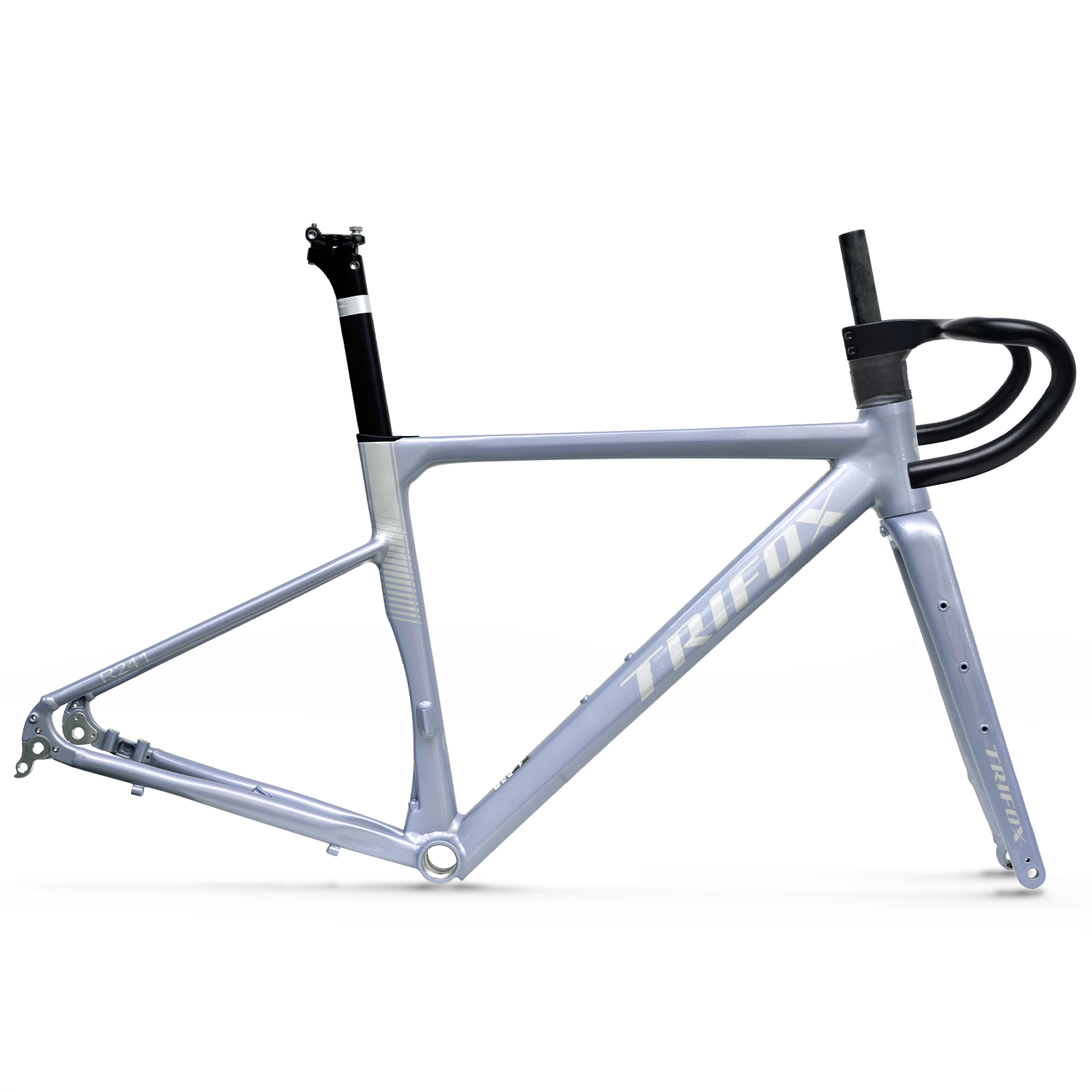

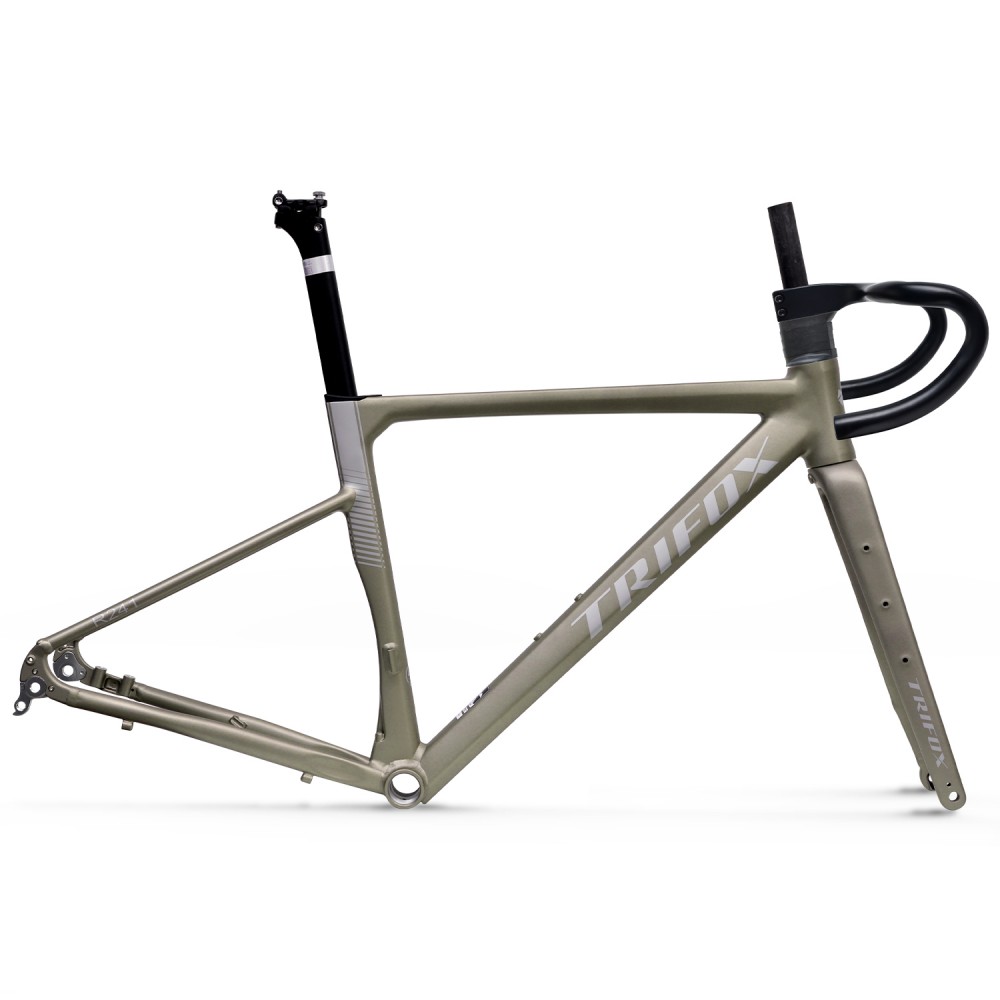

Aluminum Road Bike Frameset R241TA
-
155-170mm（44cm)
-
165-180mm （46cm）
- Product Details
- Customers Reviews

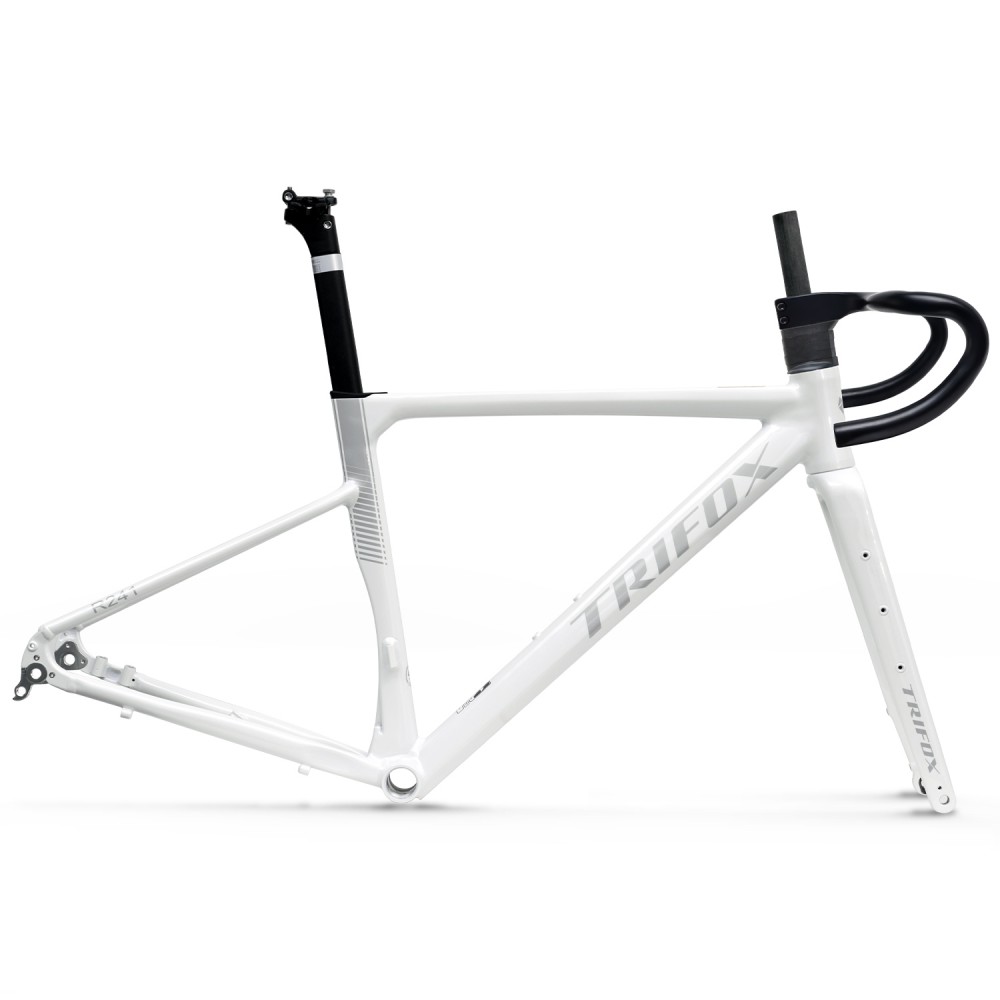

700c Aluminum Road Bike Disc Brake Frameset R241TA
Parameter
| Brand | Trifox |
| Model | R241TA |
| Product Name | Aluminum Bike Frameset R241TA |
| Type | Road Bike Frame |
| Style | Aluminum Alloy Disc Brake Frameset, Triple butted |
| Material | 6061 Lightweight Aluminum Alloy, Aluminum alloy T4-T6 heat treatment |
| Finish | Color Painting |
| Installable | DI2 and Mechanical |
| Headtube | 52cm |

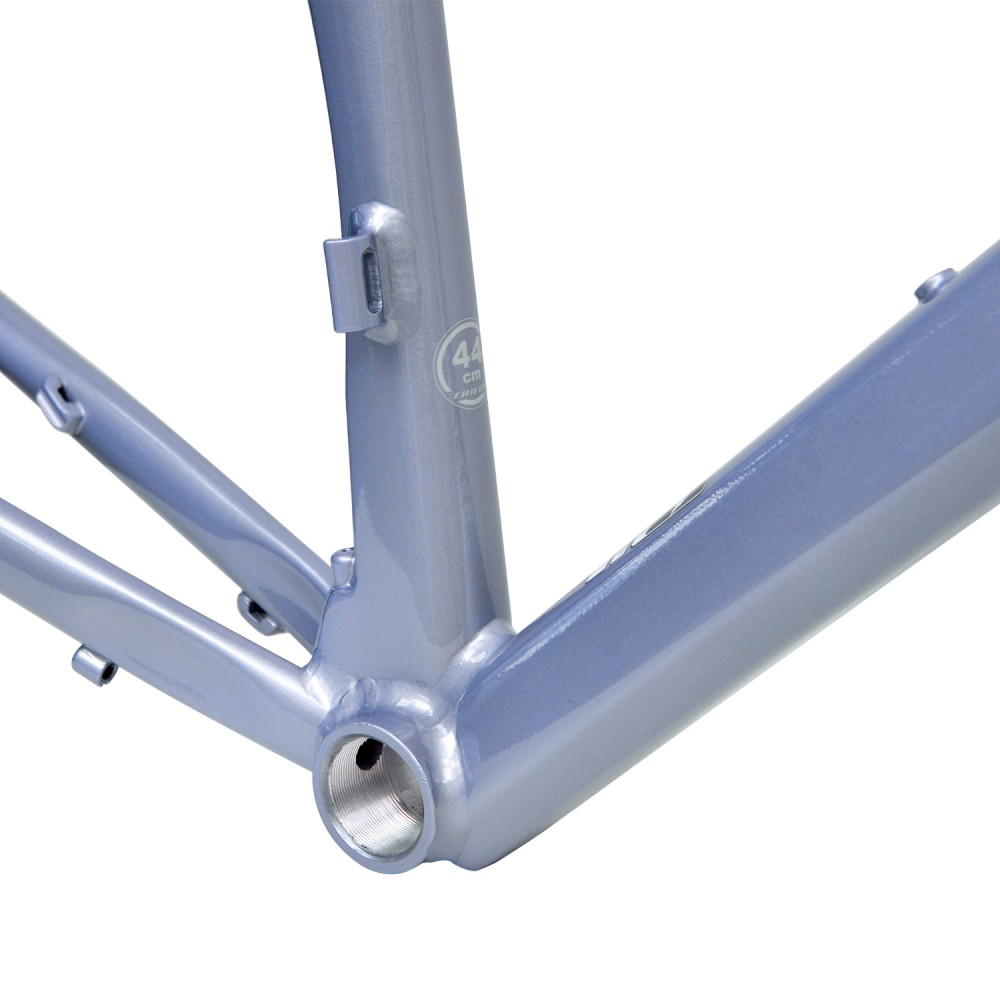

| Bottom Bracket | BSA - BB68 (φ 34mm, L 68mm) |
| Available sizes | 44 / 46cm |
| Available Colors | Blue/White/Champagne Gold |
| Front O.L.D | φ12*100mm Thru Axle |
| Rear O.L.D | φ12*142mm Thru Axle |
| Braking System | Disc Brake |
| Max Wheels & Tire Size | 700 * 32c |
| Dropout | Thru Axle |
| Warranty | 2 Years |
| Seatpost insertion length | 7cm to 12cm |
| Package Content | 1 x Aluminum Road Bike Disc Brake Frameset R241TA |

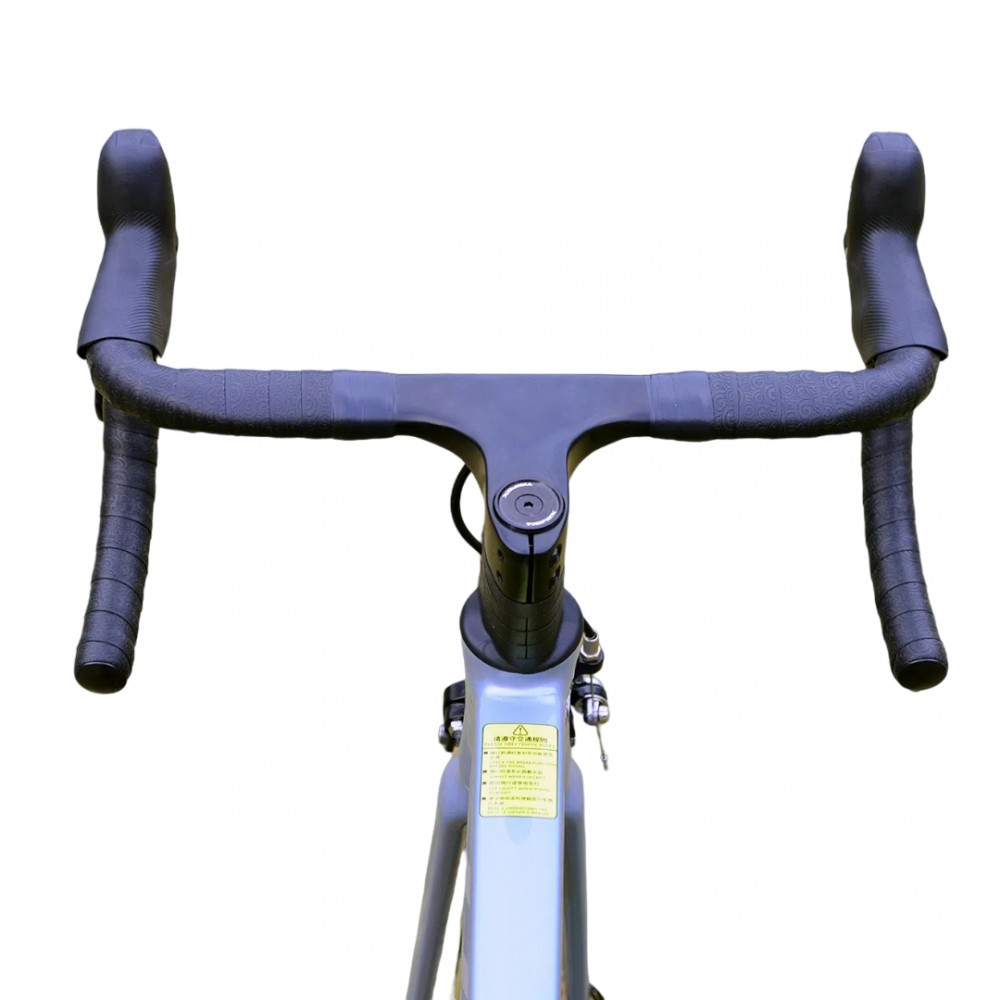

| 1 x Aluminum Alloy Integrated Handlebar (400*80mm) | |
| 1 x Carbon Fiber Fork | |
| 1 x Aluminum Alloy SeatPost | |
| 1 x Headset | |
| 1 x Seatpost Clamp | |
| 1 x Rear Derailleur Hanger(on the frame) |

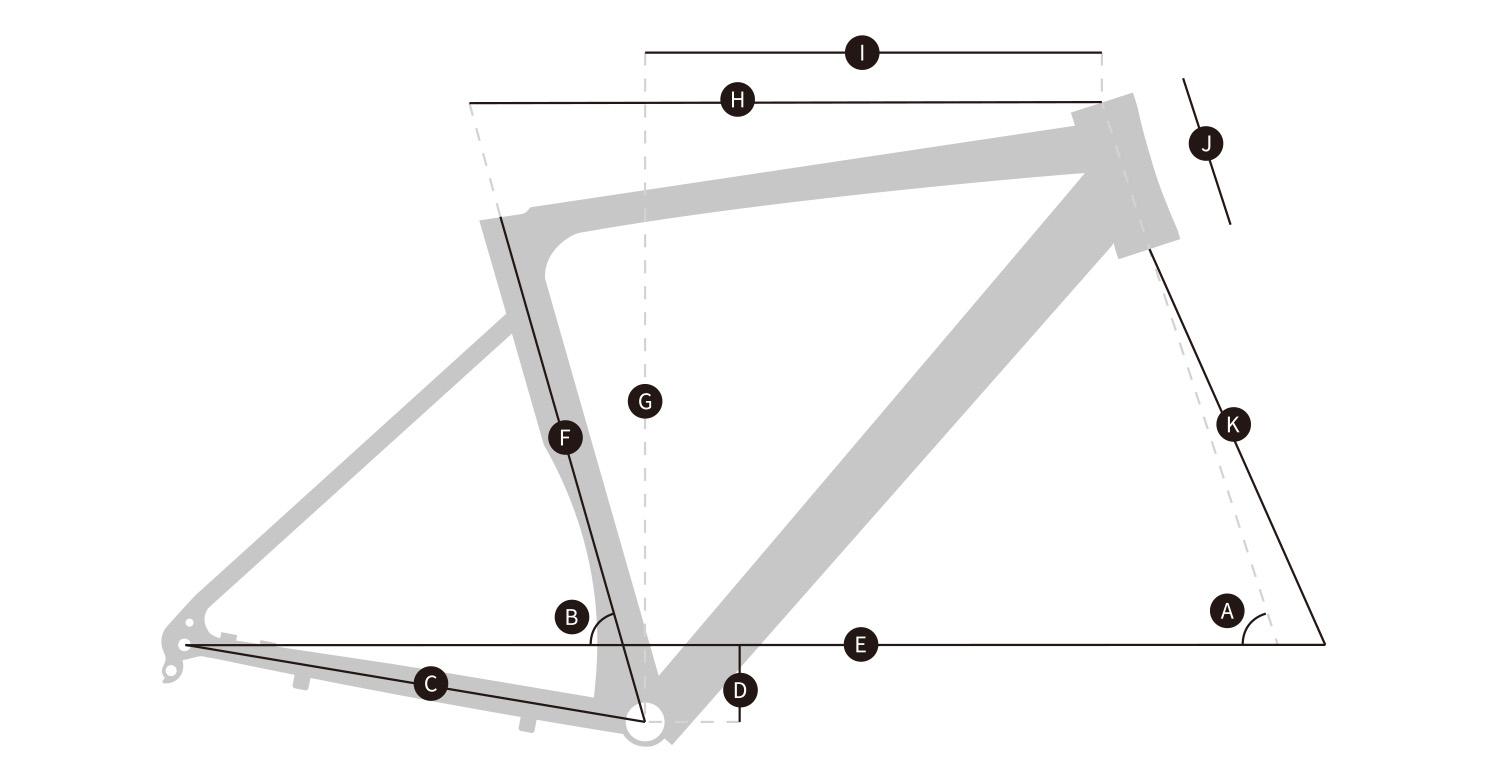

Product Geometry
| Frame Parts | 44cm | 46m | |
| Head Tube Angle | A(°) | 72 | 72 |
| Seat Tube Angle | B(°) | 74 | 74 |
| Chainstay Length | C(mm) | 410 | 410 |
| BB Drop | D(mm) | 70 | 70 |
| Wheelbase | E(mm) | 989.8 | 999.9 |
| Seat Tube Lenght | F(mm) | 440 | 460 |
| Stack | G(mm) | 523.6 | 542.7 |
| Top Tube Lenght Horizontal | H(mm) | 546.5 | 555.9 |
| Reach | I(mm) | 396.3 | 400.3 |
| Head Tube Length | J(mm) | 115 | 135 |
| Fork Length Full | K(mm) | 375 | 375 |

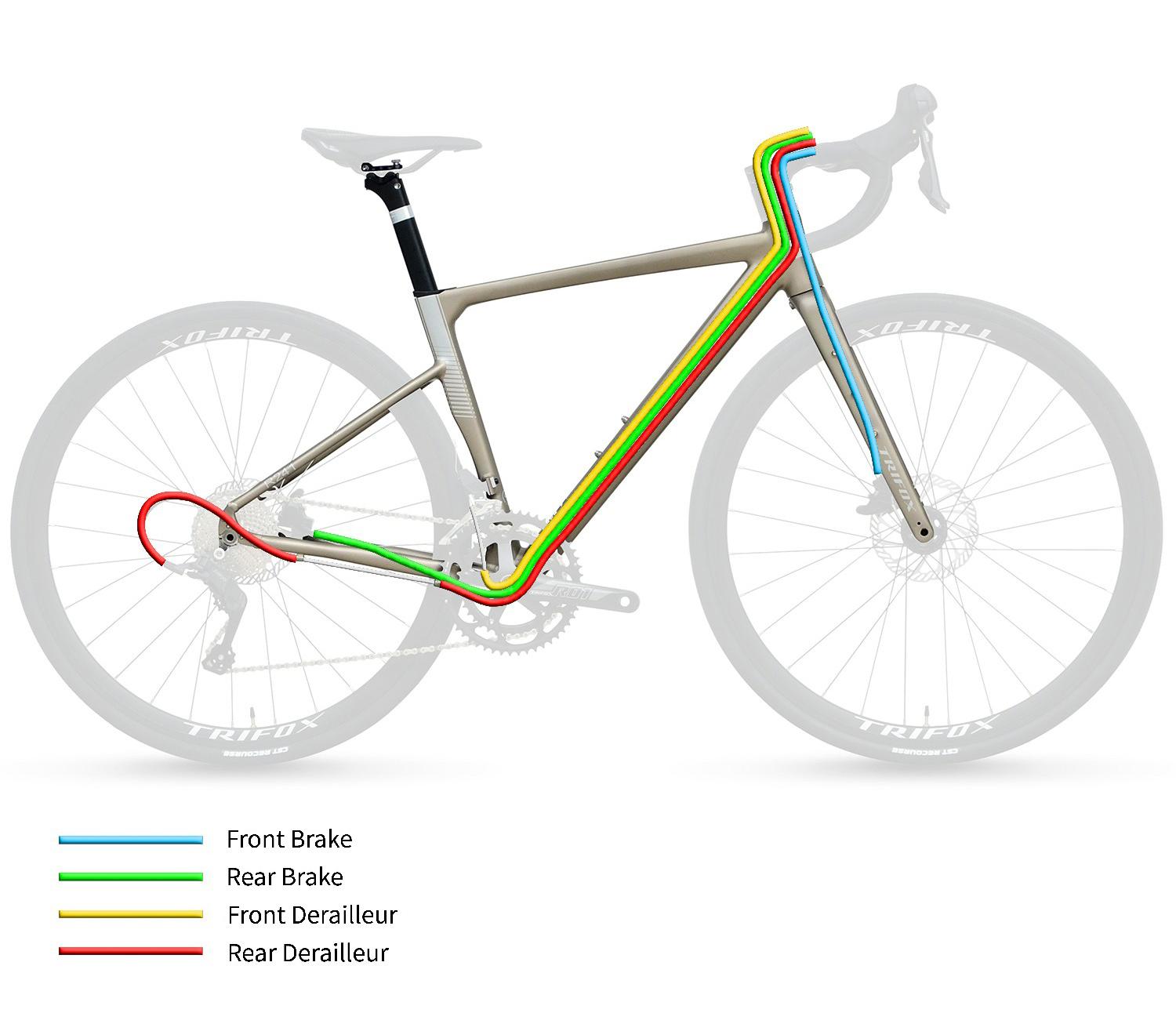

Internal wiring diagram
Product Weight
| Frame Size | Weight |
| 44cm | 1790g ± 30g |
| 46cm | 1820g ± 30g |
| Fork | 455g ± 30g |
| Handlebar | 628g ± 30g |
| Seatpost | 326g ± 30g |

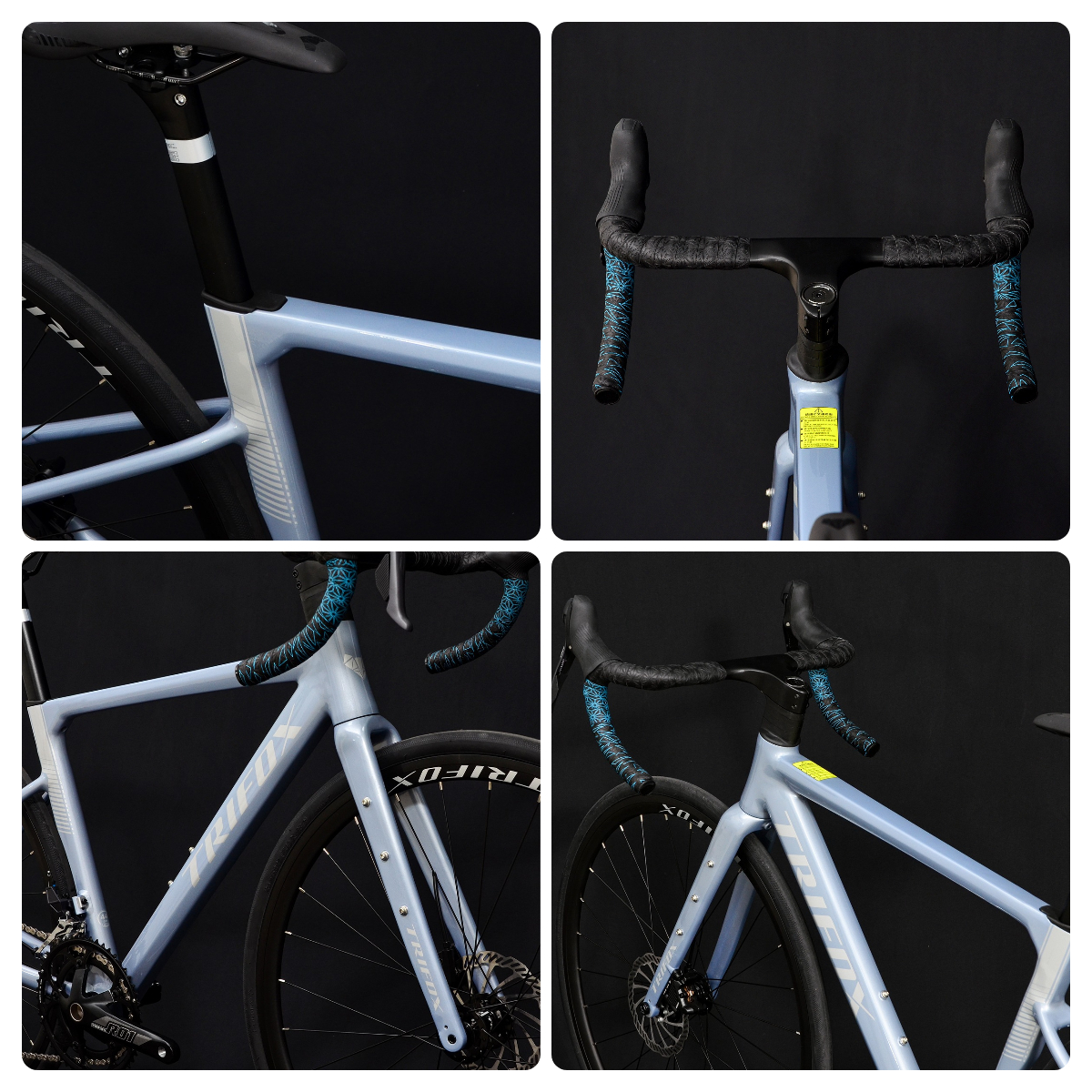

Product Details
