Carbon MTB Frame SDY21 Bundle Sale
-
142 TA
-
148 BOOST TA
-
15.5
-
19
-
17
- Product Details
- Customers Reviews

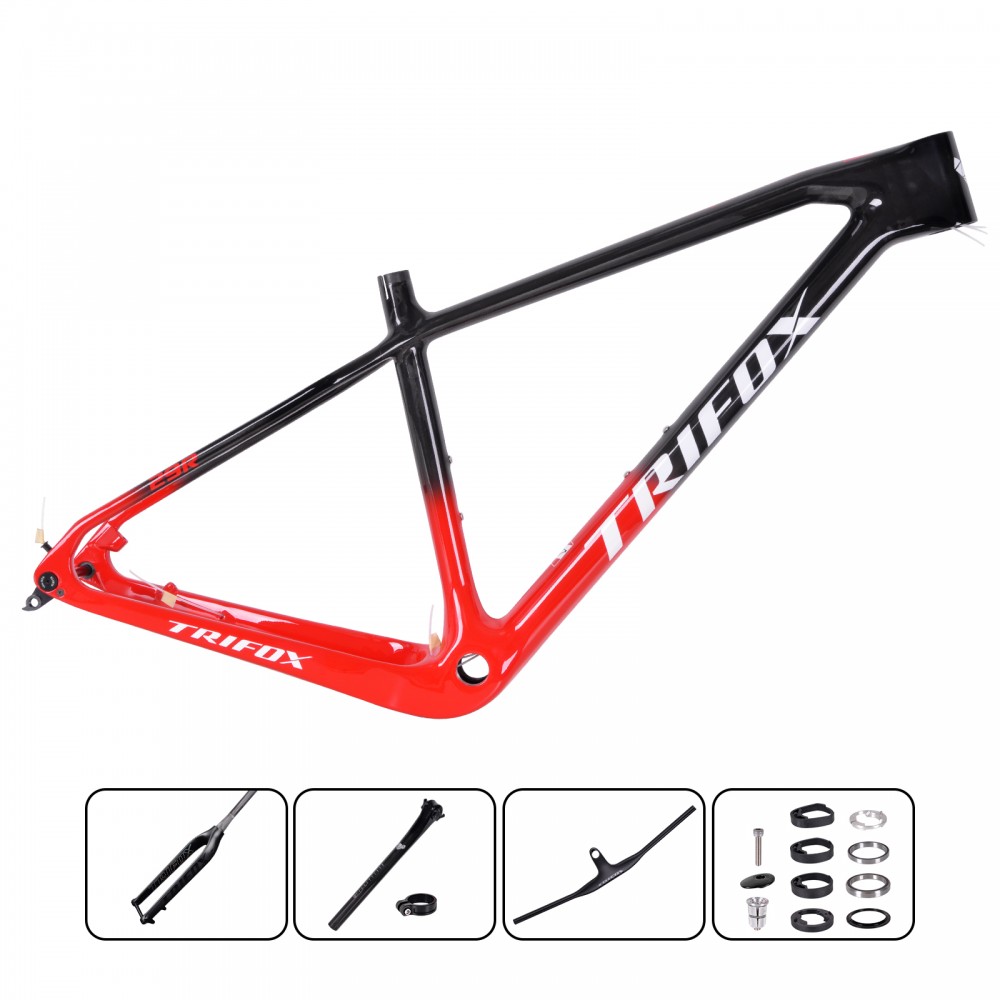

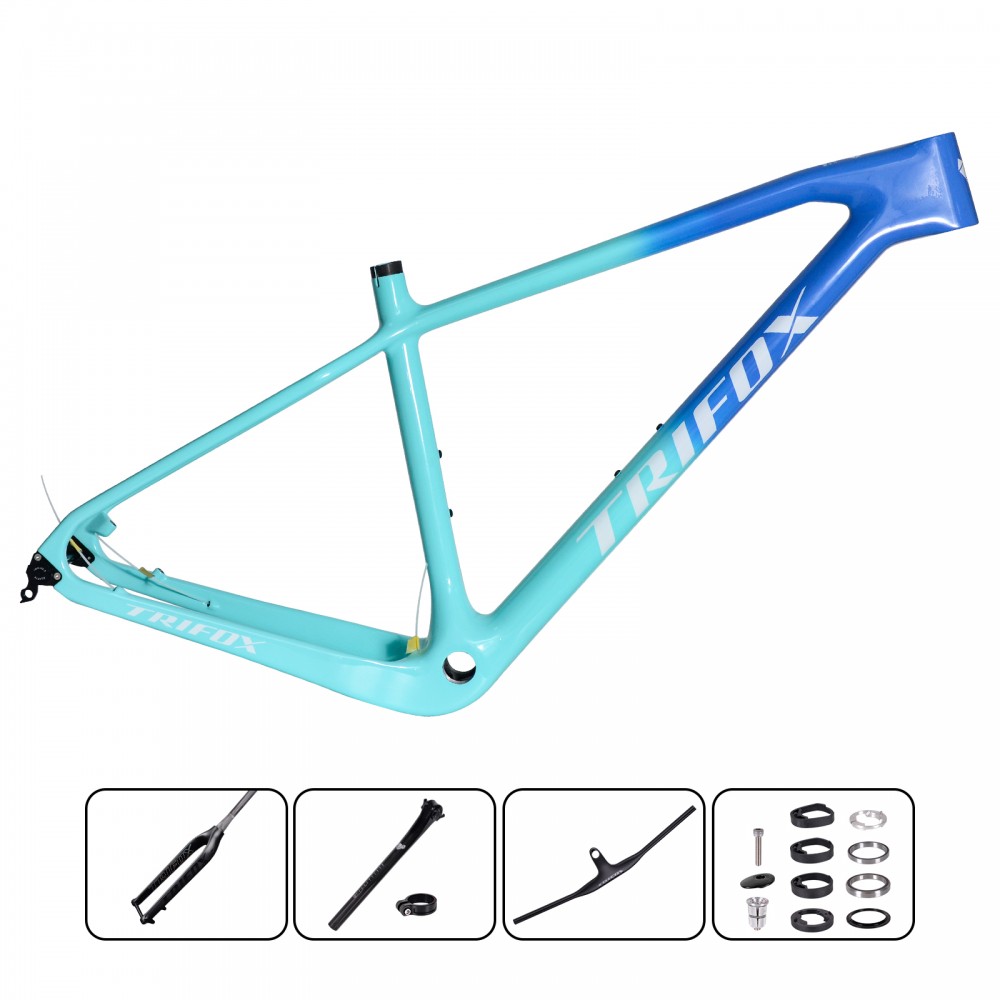

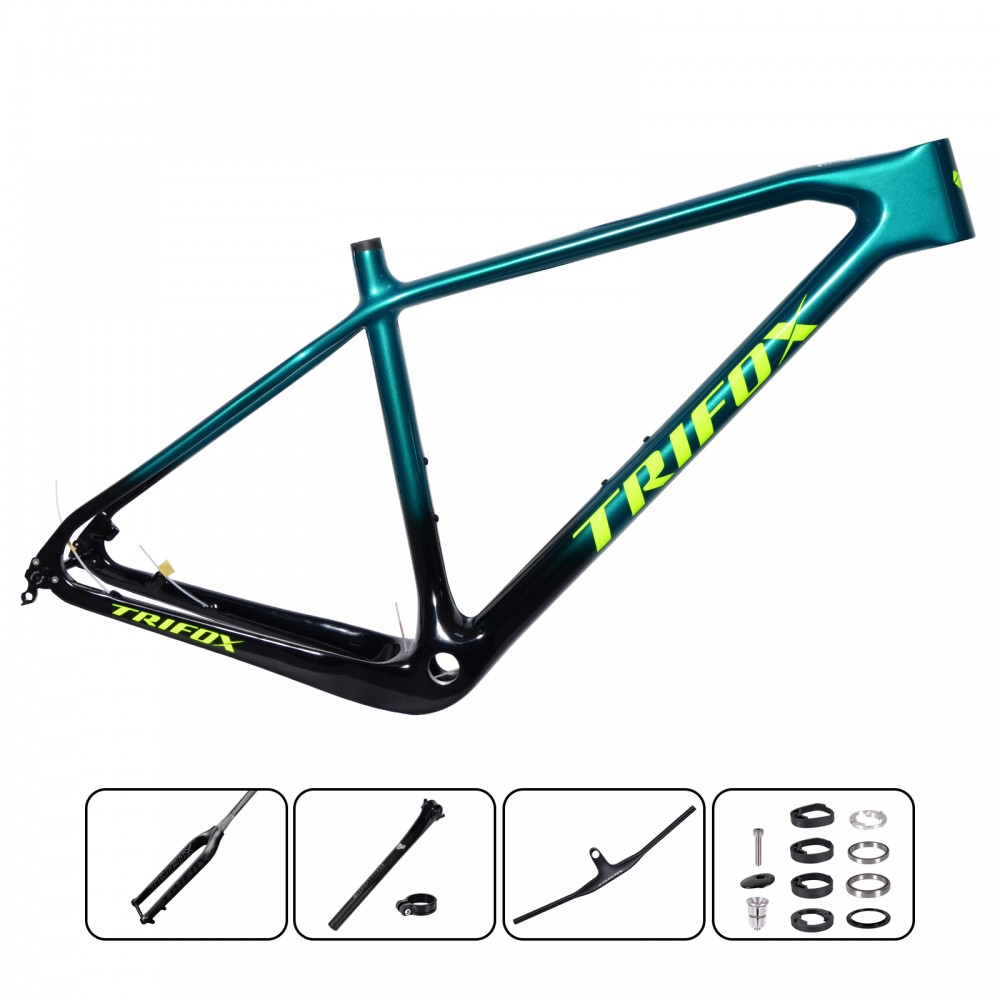

29er Carbon Hardtail MTB Frame SDY21 Bundle Sale
Parameter
| Carbon MTB Frame SDY21 | |
| Brand | Trifox |
| Type | Carbon MTB Frame |
| Model | SDY21 |
| Material | T800 Full Carbon |
| Routing | Full internal cable routing through the headset |
| Frame Size | 29er (15.5" / 17" / 19") |
| Single chainring drivetrain | Max 38T |
| Multi chainring drivetrain | Regular |
| Max Tires | 29 x 2.4" |

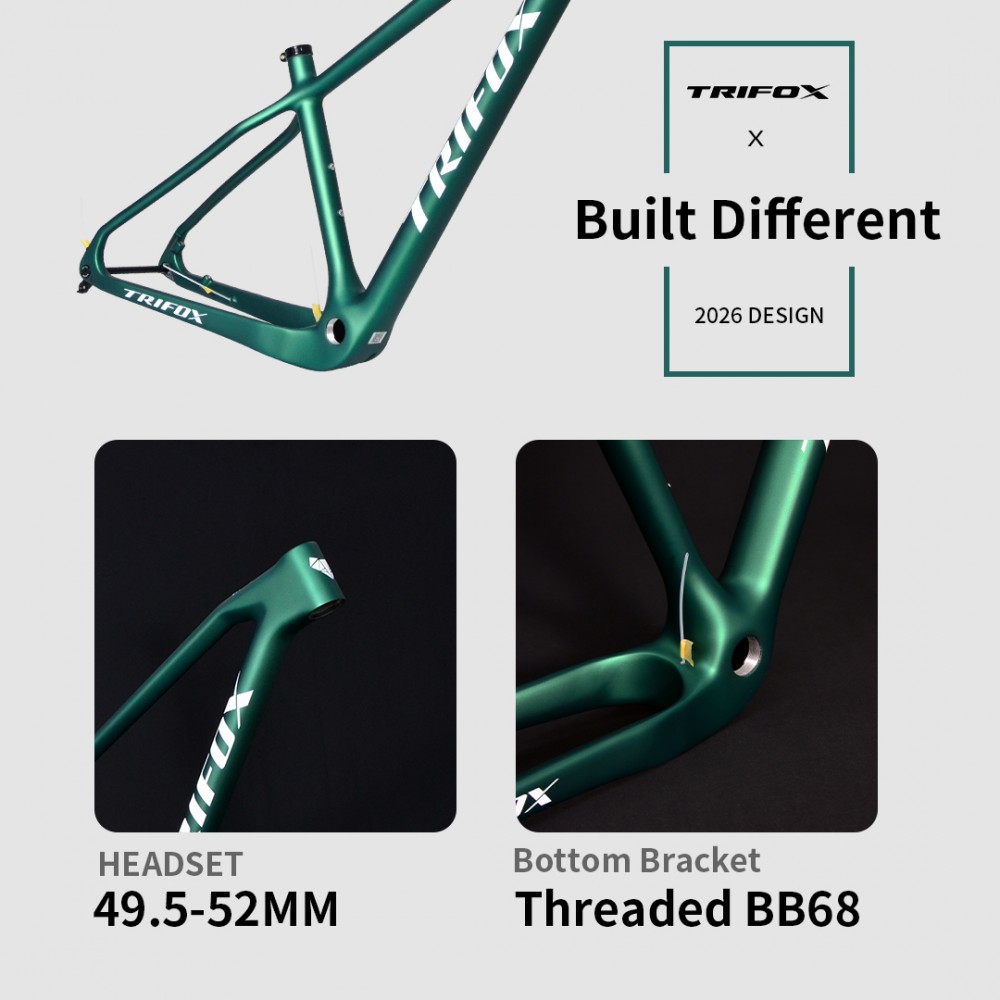

| Bottom Bracket | BB68 - BSA 1.37*24mm 73mm |
| Handlebar width | 800mm (Defeault) |
| 780, 760, 740 ... (need contact our customer service) | |
| Handlebar Stem | 90mm / 100mm / 110mm |
| Painting | Red gradient, full glossy |
| Support customized painting (above 10 units) | |
| Weight | 1020g ± 40g |
| O.L.D | 135 QR |
| 142 x 12 TA | |
| 148-BOOST x 12 TA | |
| Warranty | 2 years |
| Seatpost Diameter | 30.9mm |
| MTB Rigid Fork TMK200 | |
| Brand | Trifox |
| Model | TMK200 |
| Product Name | 29er Carbon MTB Rigid Boost Fork |
| Type | Tapered MTB Fork |
| Material | T800 Full Carbon |
| Finished | Matte (Laser Logo) |
| Weave | UD |
| Steerer Size | 1-1/8" to 1-1/2" |
| Size | 29er |
| Fork Rake / Offset | 45mm |
| Max Tire | 29*3.0" |
| Suitable Brake | Disc Brake, 160mm Rotor |
| Weight | 568 +/- 20g (include Alloy Thru Alex) 507 +/- 20g (Not included Alloy Thru Alex Skewer) |
| Thru Axle Size | 110 x 15mm (BOOST) |

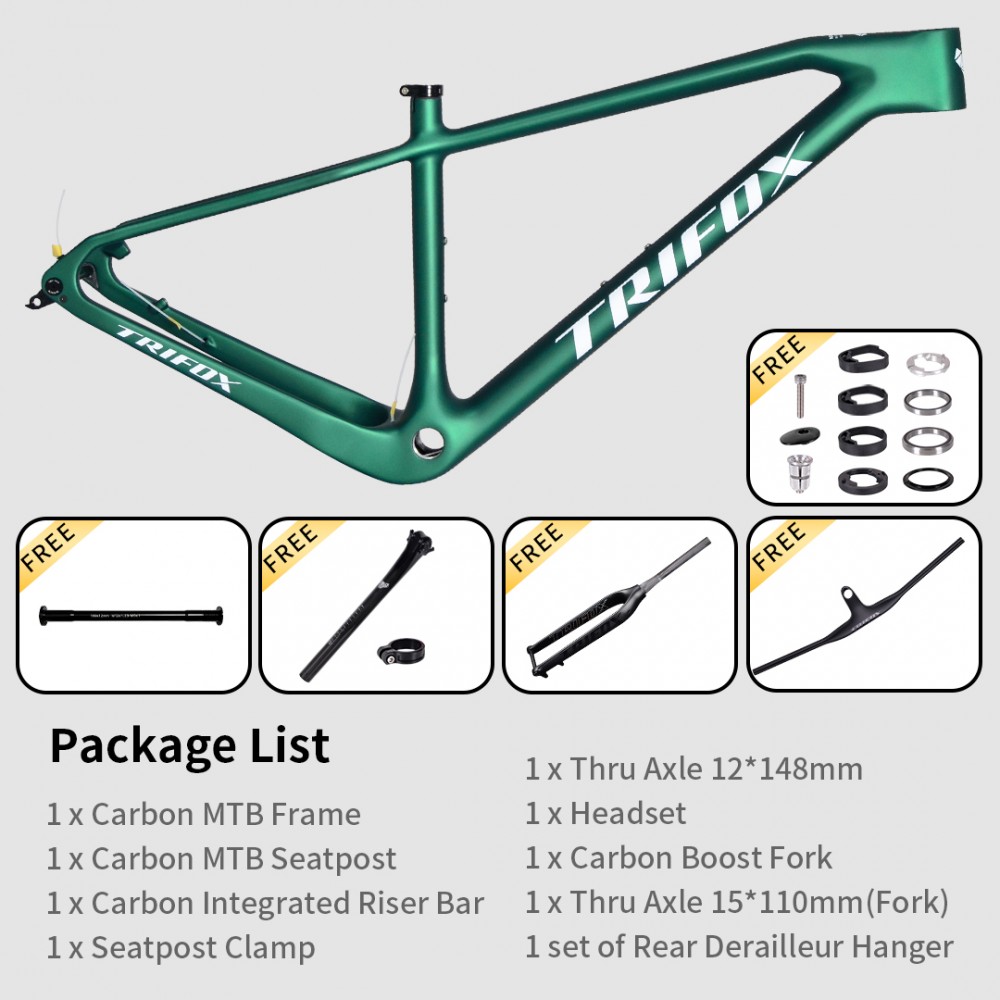

| Package Content | 1 x MTB Hardtail Frame |
| 1 x Layback Seatpost | |
| 1 x Integrated Riser Bar | |
| 1 x 29er Carbon Boost MTB Fork | |
| 1 x Fork Front Alloy Thru Alex Skewer | |
| 1 x Seatpost Clamp | |
| 1 x Frame Rear Alloy Thru Alex Skewer | |
| 1 x Headset | |
| 1 x Derailleur Hanger Protector | |
Product Geometry
| Place | Name | 15.5” | 17” | 19” |
| A(mm) | Stack | 596 | 606 | 615 |
| B(mm) | Rreach | 405 | 430 | 450 |
| C(mm) | Head tube length | 90 | 100 | 110 |
| D(°) | Head Tube Angle | 70 | 70 | 70 |
| E(mm) | BB Drop | 65 | 65 | 65 |
| F(mm) | Fork Lenght Full | 482 | 482 | 482 |
| G(mm) | Fork Rake/Offset | 45 | 45 | 45 |
| H(mm) | Front Center | 659 | 680 | 703 |
| I(mm) | Chainstay Length | 443 | 443 | 443 |
| J(mm) | Wheelbase | 1094 | 1115 | 1138 |
| K(mm) | Top Tube Length Horizontal | 587 | 615 | 638 |
| L(mm) | Seat Tube Lenght | 394 | 430 | 470 |
| M(°) | Seat Tube Angle | 73 | 73 | 73 |

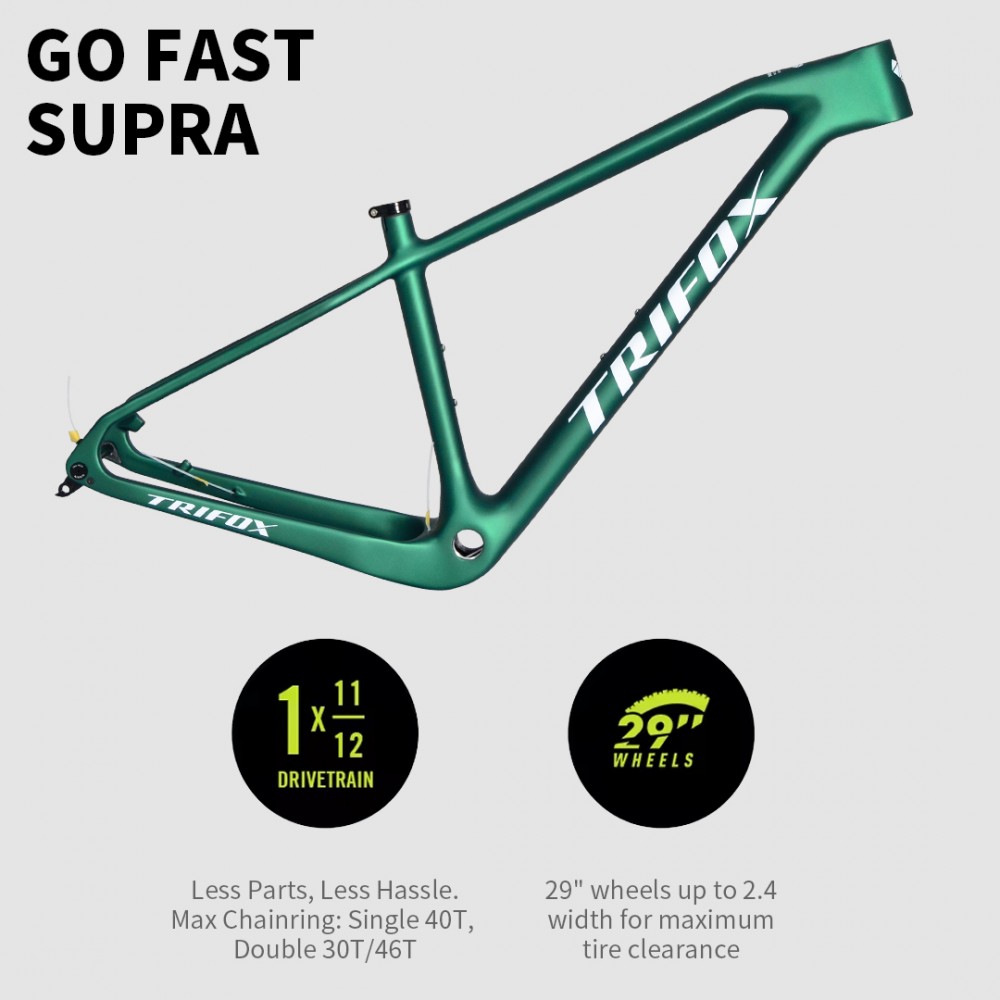

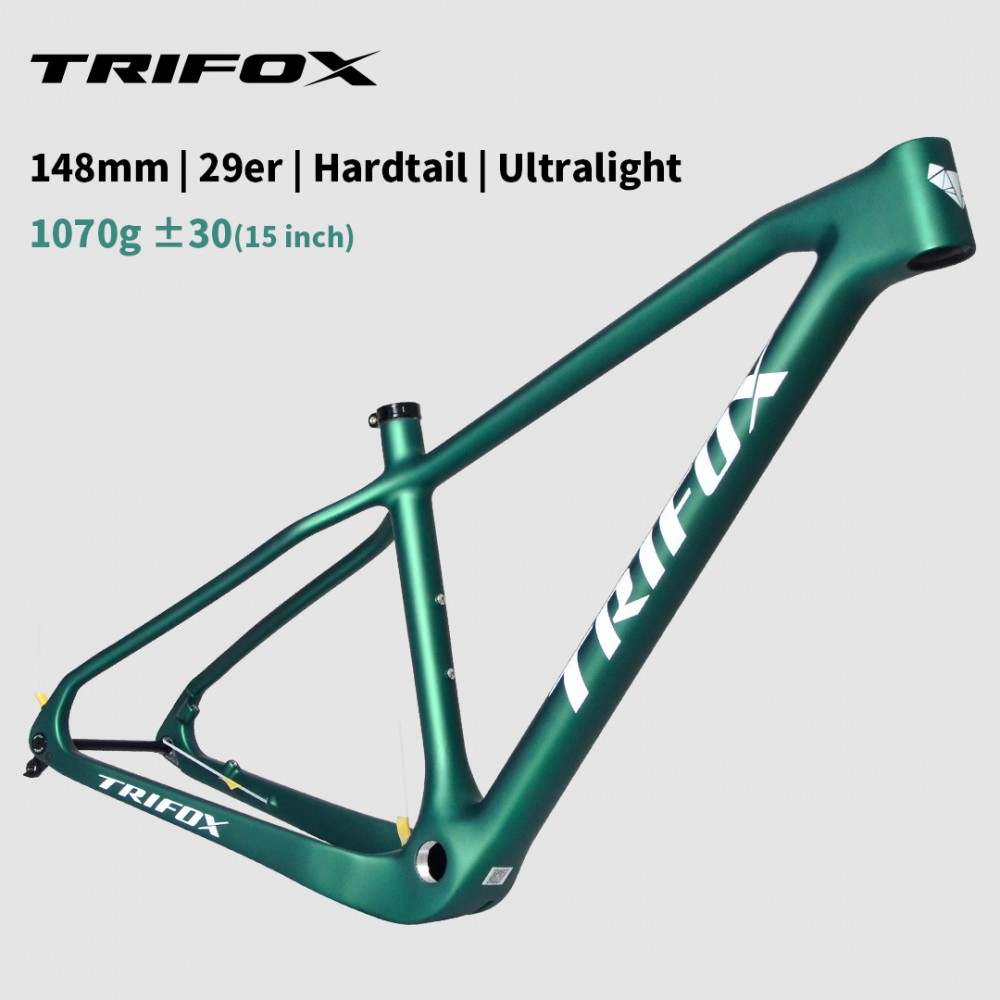

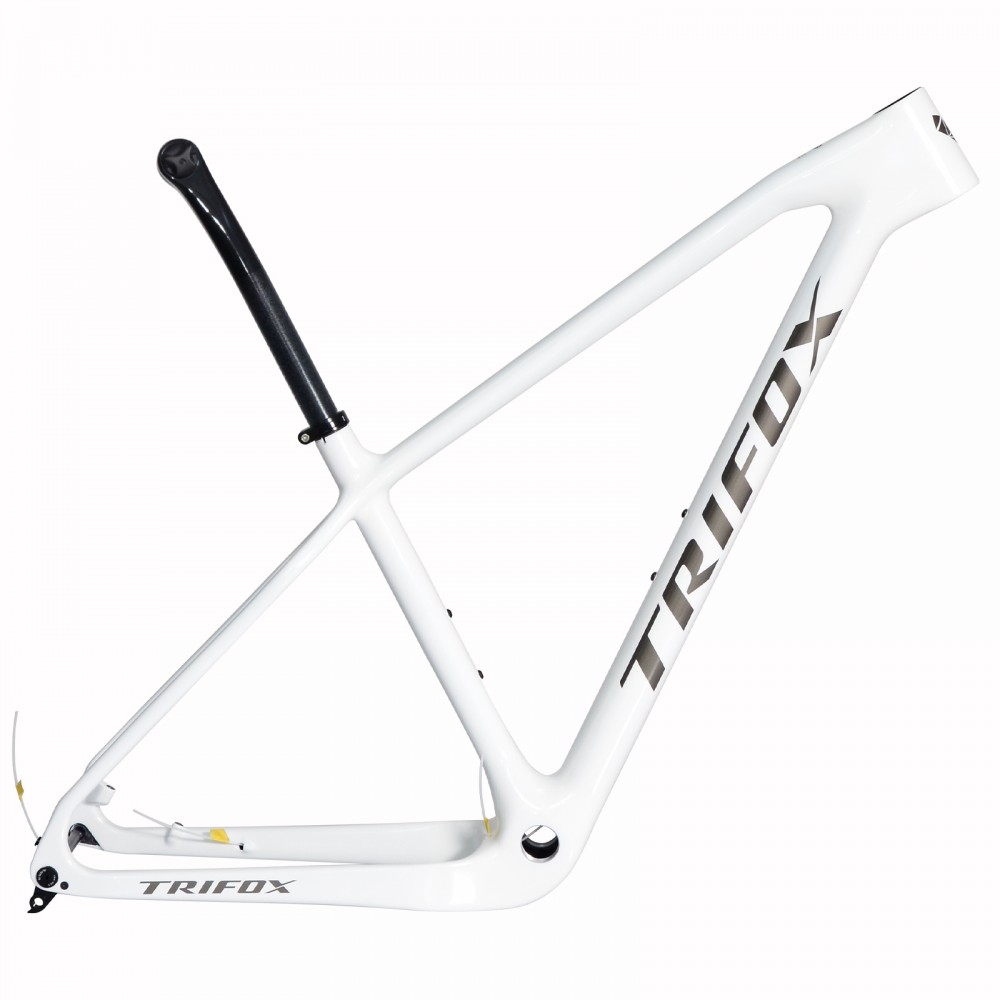

T800 29er carbon MTB hardtail frame

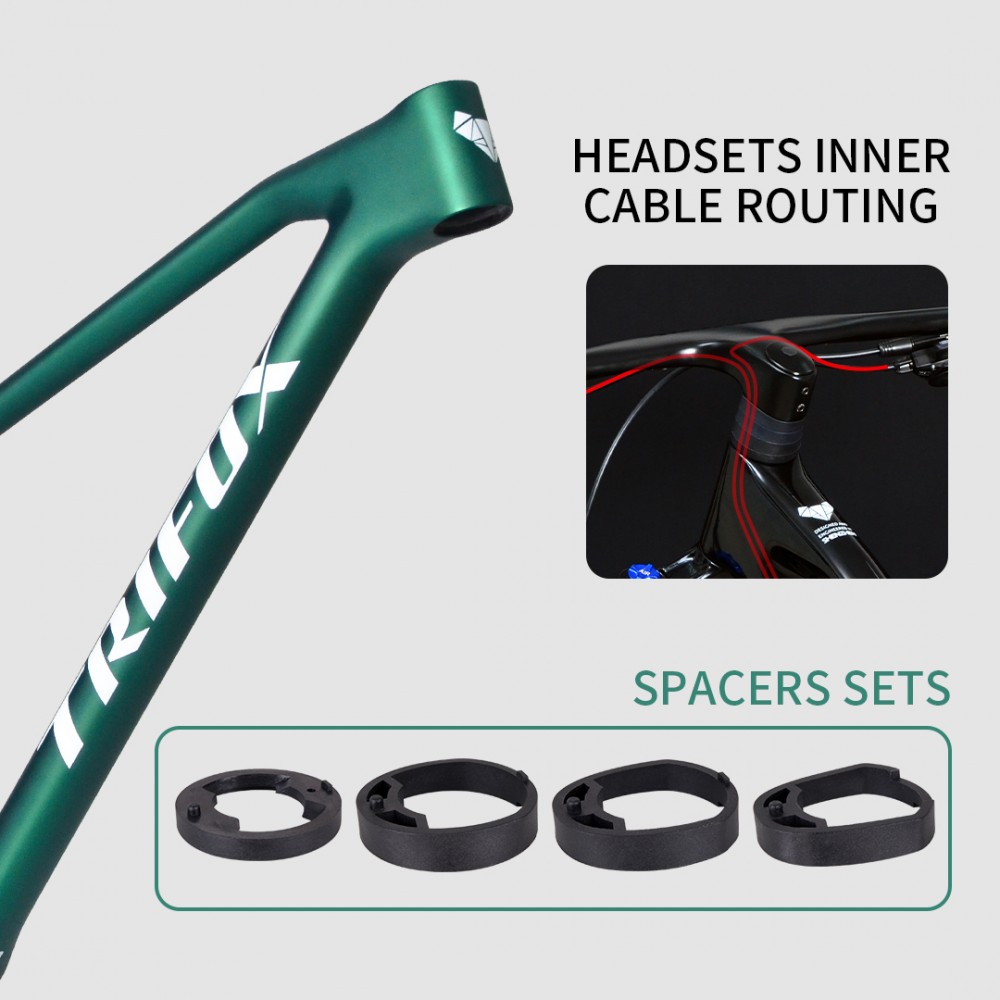

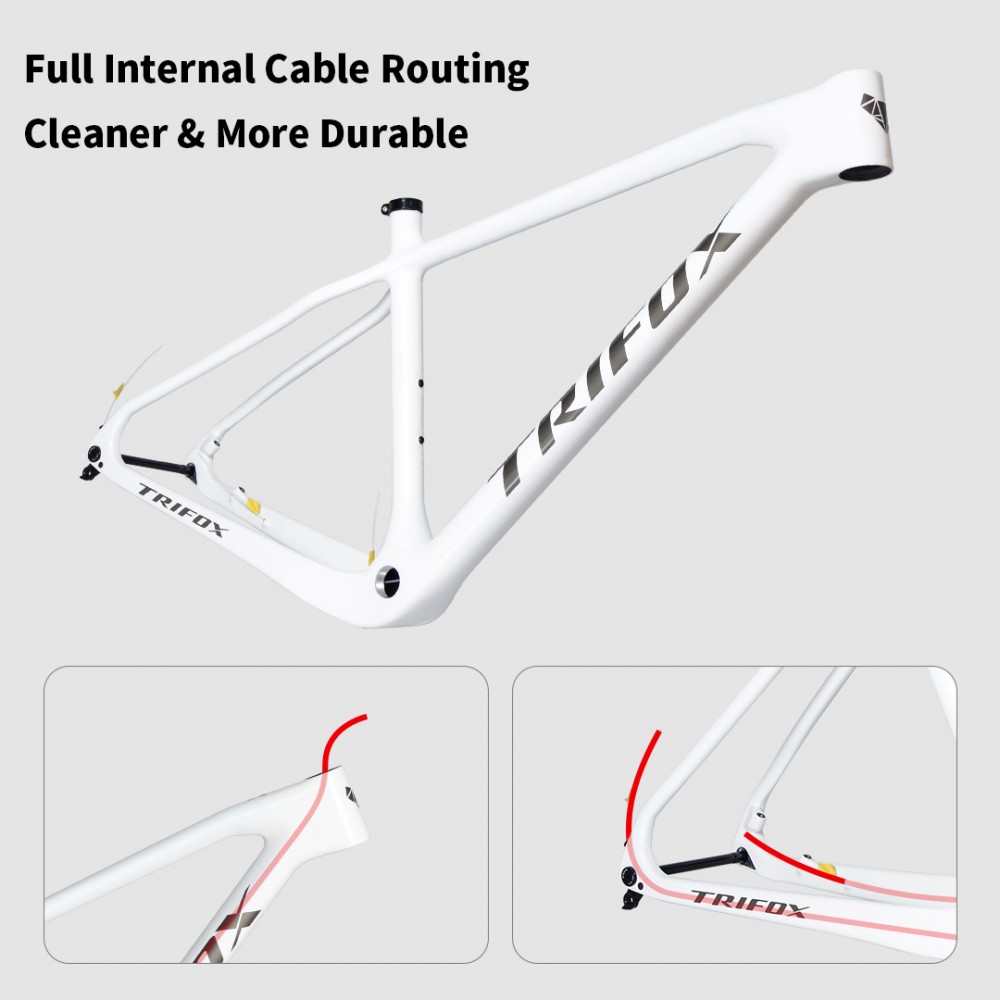

Full Internal Cable Routing and Unique Structure.
Features 3K Carbon Fiber Woven, stiffer and more textured.
The spray paint retains the effect of the 3K woven, which highlights the high quality of carbon fiber
suitable for seatpost with 30.9mm.
A variety of O.L.D space and a variety of stem size available for you
Ergonomic design providing you a safer and comfortable riding.
Switch between Quick Release and Thru Axle at will(135QR and 142TA), Quick Release Skewer and Thru Axle Skewer can be changed each other depends on the style of Derailleur Hanger.

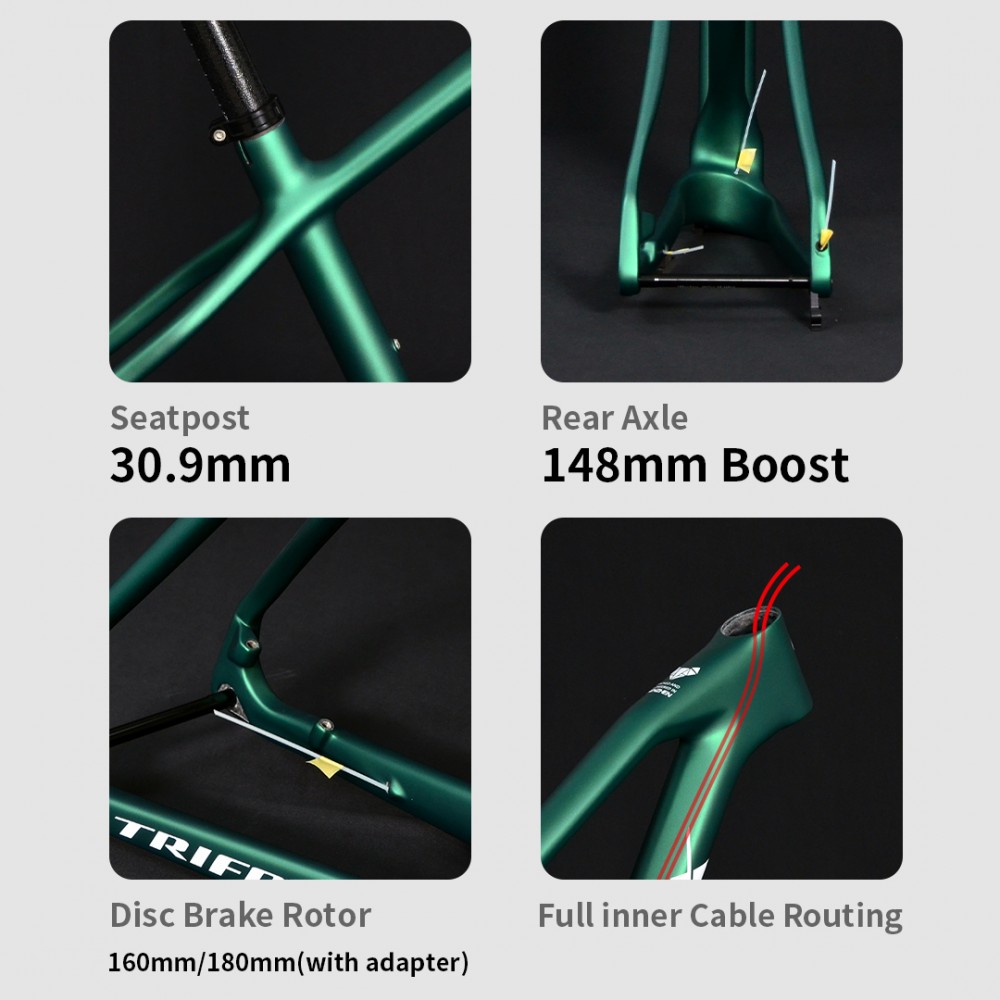

Frame Details

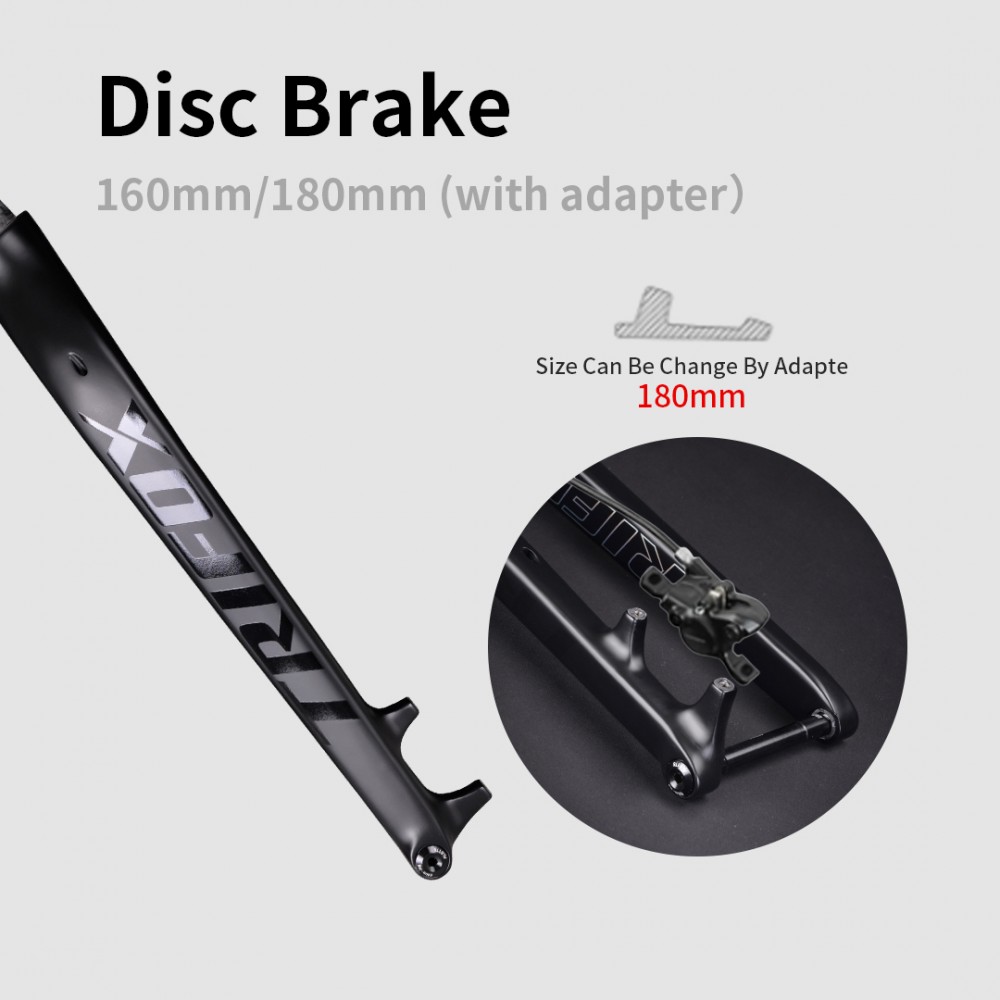

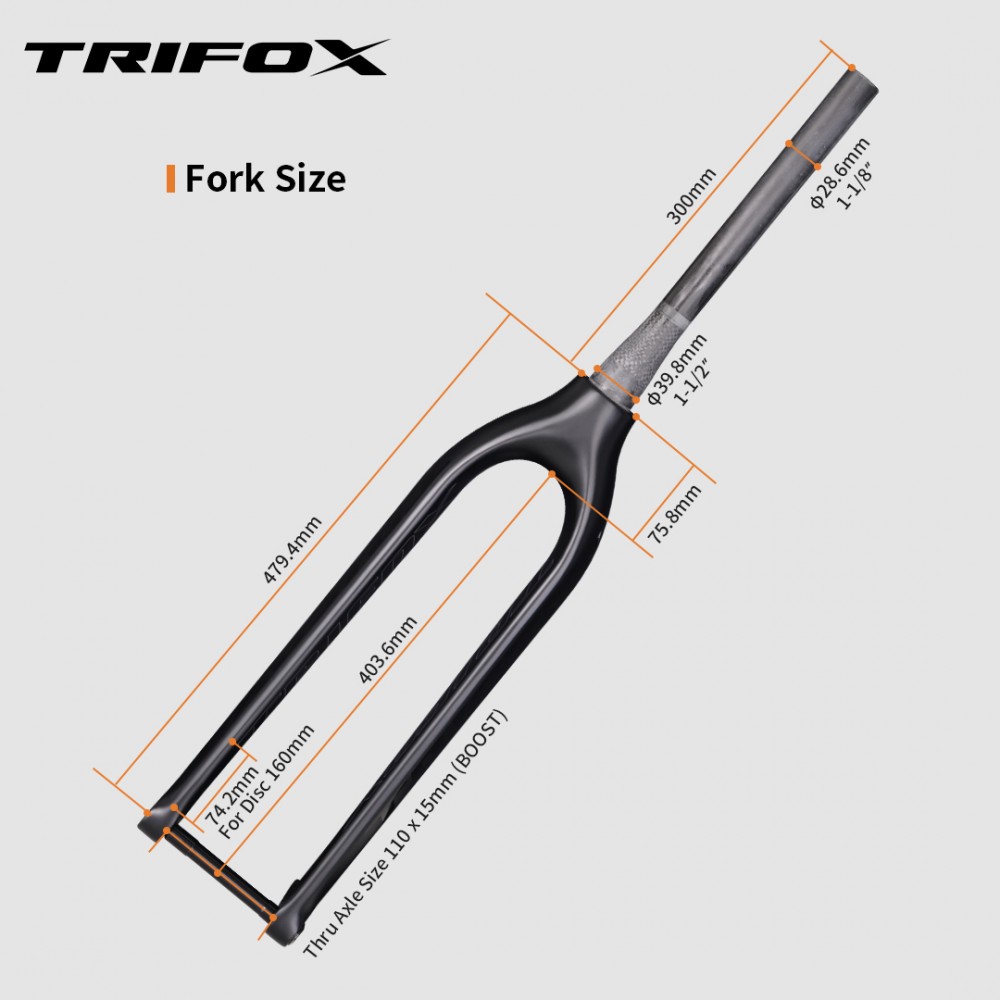

Fork Details
