Why Our Internally Routed Frame Rides Stiffer and Lighter

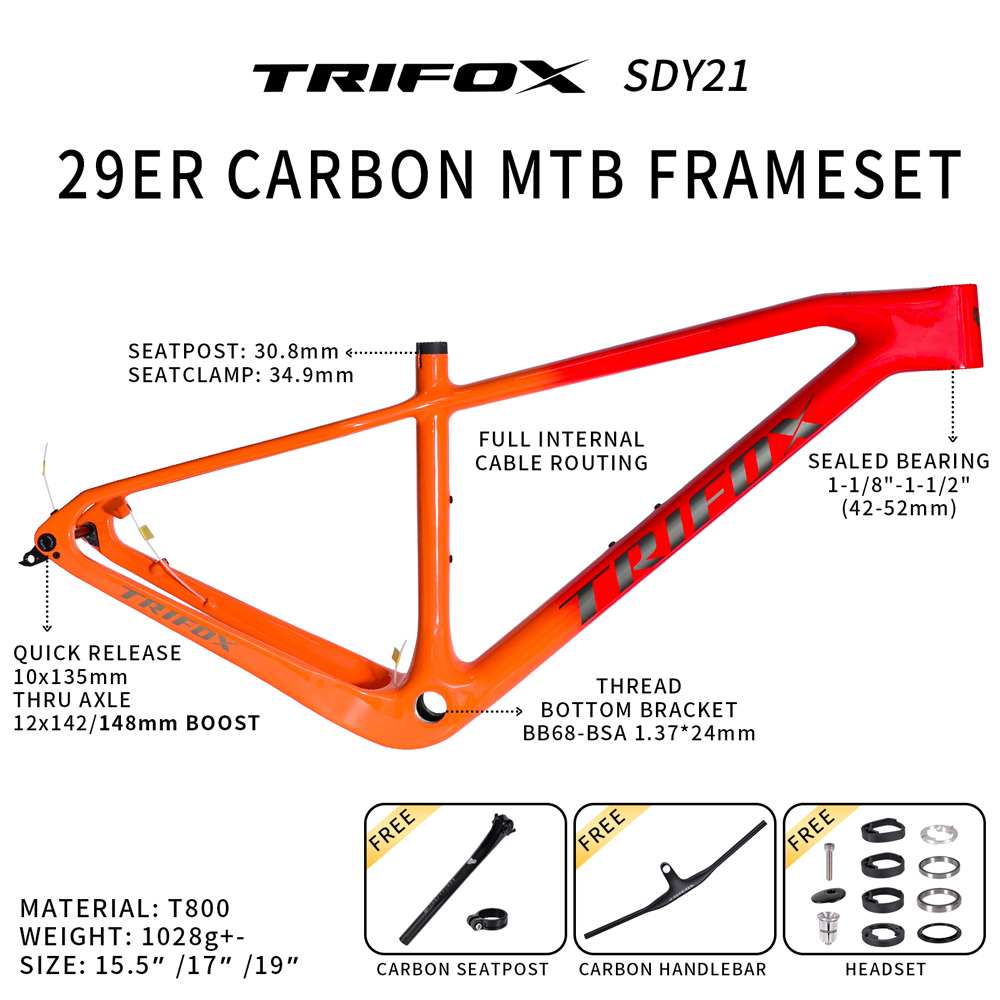

It’s a brilliant question: “If you’re drilling holes in the frame for cables, doesn’t that make it weaker?” It’s a completely reasonable assumption. In the world of modern carbon fiber engineering, however, the answer is a definitive "no." The key is that in a high-performance frame like the Trifox SDY21, these internal channels are not an afterthought or a destructive cut into a finished structure. Instead, they are precisely calculated engineering features integrated from the very first stages of Finite Element Analysis (FEA). Our goal is not to choose between beauty and performance, but to engineer a solution that wins on all fronts: superior aesthetics, enhanced rigidity, and reduced weight.



Localized Reinforcement & Structural Design: Think of it like the engineering of a modern building. A window isn't just a hole in a wall; it’s surrounded by a reinforced lintel that redistributes load. Similarly, around every critical entry and exit point in the SDY21 frame—especially the head tube—we apply additional carbon fiber layers and localized reinforcement. We use strategic patches of higher-modulus T800 carbon in these high-stress areas. This targeted reinforcement ensures the structure is actually stronger at its most vulnerable points, turning potential weaknesses into fortified zones. Furthermore, the internal channels themselves are designed with specific, stiffness-enhancing shapes, effectively becoming integrated structural elements rather than simple voids.

Holistic Engineering and Structural Integrity: A high-performance carbon frame is not a collection of tubes; it is a singular, unified monocoque structure. The rigidity comes from the entire shape and the continuous carbon fiber layup. By designing the internal routing paths as an integral part of this holistic structure from the start, we can model and mitigate any localized stress concentration. The frame’s overall stiffness and strength are engineered to meet or exceed rigorous international standards (such as ISO 4210) with the routing channels fully accounted for. This means the SDY21’s structural integrity is validated as a complete system, proving that intelligent design can incorporate functionality without sacrificing robustness.

The proof is in the performance. The Trifox SDY21 isn’t just about a clean look. This rigid frame mtb achieves an exceptional stiffness-to-weight ratio. The compact 19 inch mtb frame size weighs in at just 1075 grams, a benchmark that rivals many premium hardtails. This staggering lightness is achieved without sacrificing the direct, responsive feel that serious XC and trail riders demand. The clean internal routing eliminates external cable drag and snag points, contributing to a more aerodynamic and maintenance-friendly package.

Ultimately, a superior full-internal routing design like that of the SDY21 represents a higher level of engineering sophistication. It moves beyond the old compromise. The result is a frame that is not only sleeker and easier to maintain but also stiffer and lighter—a true triathlon of benefits that elevates your ride. It’s engineering that works smarter, delivering a lightweight hardtail frame where every element, including the cable paths, contributes to the ultimate goal: a faster, more efficient, and more connected ride on the trail.
