Description

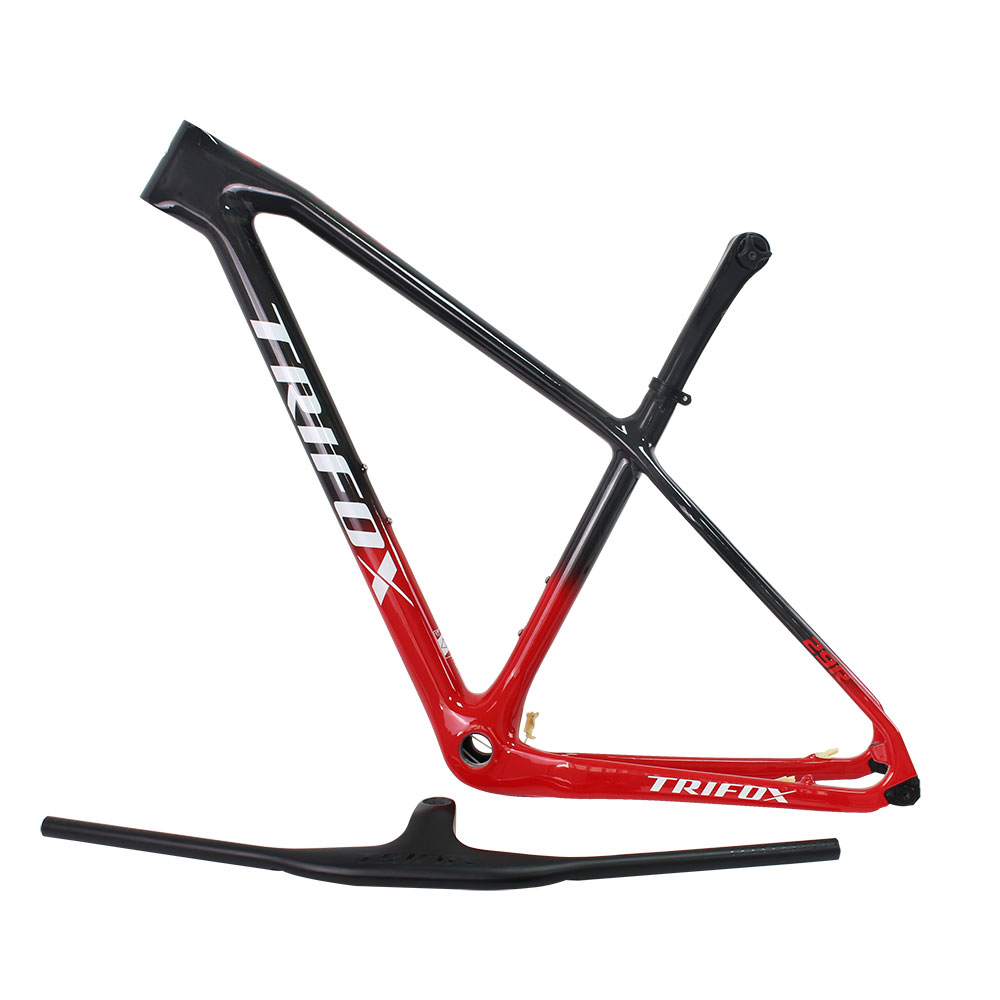

29er Carbon MTB Hardtail Frame SDY21
Parameter
| Brand | Trifox |
| Model | SDY21 |
| Product Name | Hardtail MTB Frame |
| Type | MTB Frame |
| Style | Hardtail Frame, Full Internal Cable Routing Frame |
| Material | T800 Full Carbon |

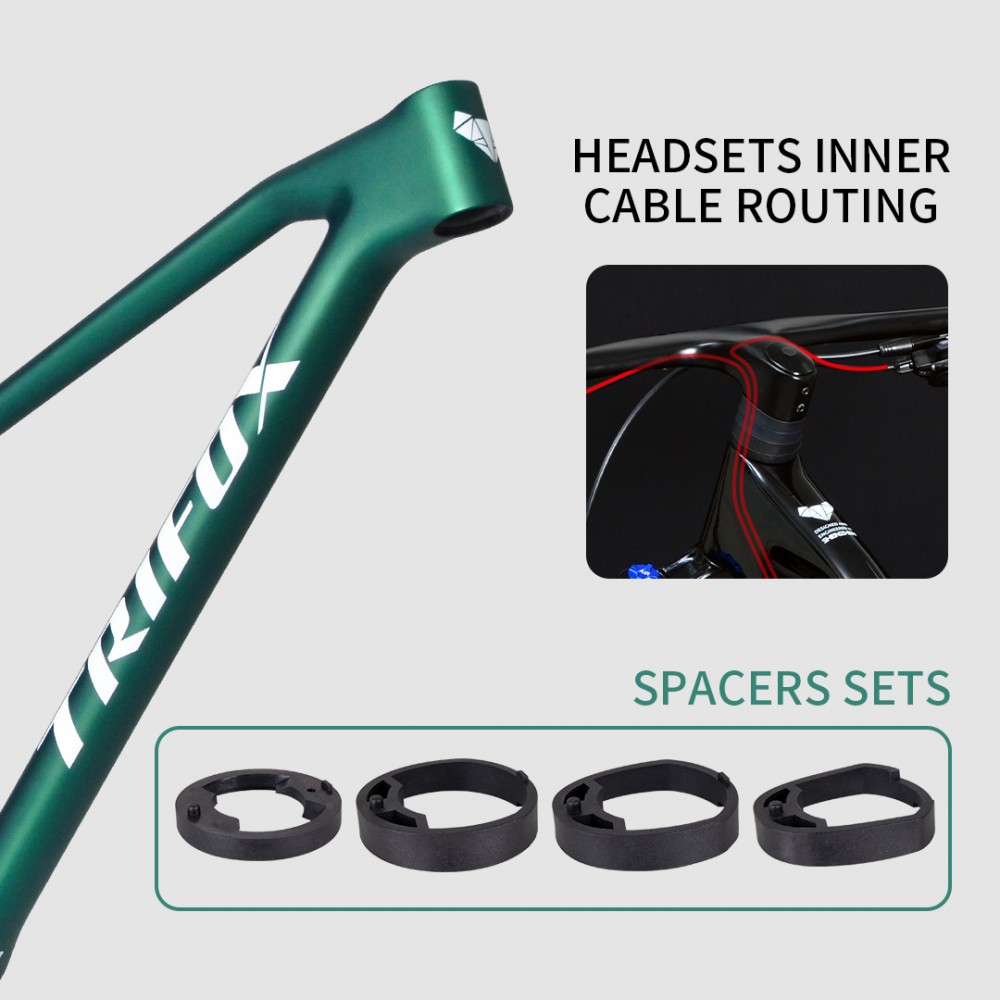

| Routing | Full internal cable routing through the headset |
| Frame Size | 29er (15.5" / 17" / 19") |
| Max Tires | 29 x 2.4" |

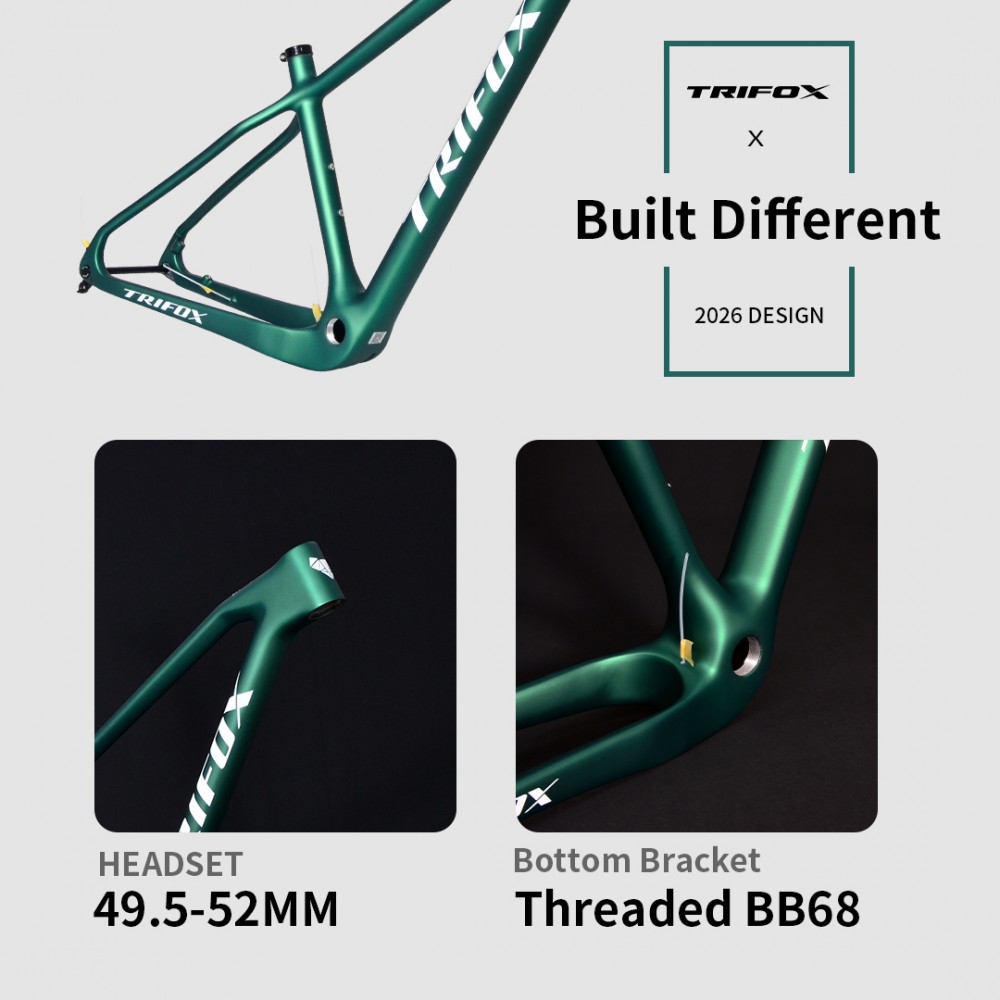

| Bottom Bracket | BB68 - BSA 1.37*24mm 73mm |
| Handlebar Width | 800mm (Defeault) |
| 780, 760, 740 ... (need contact our customer service) | |
| Handlebar Stem | 90mm / 100mm / 110mm |
| Painting | Red gradient, full glossy |
| Support customized painting (above 10 units) | |
| Weight | 1020g ± 40g |
| O.L.D | 135 QR |
| 142 x 12 TA | |
| 148-BOOST x 12 TA | |
| Seatpost Diameter | 30.8mm |
| Warranty | 2 Years |
| Seatpost insertion length | 7cm to 12cm |

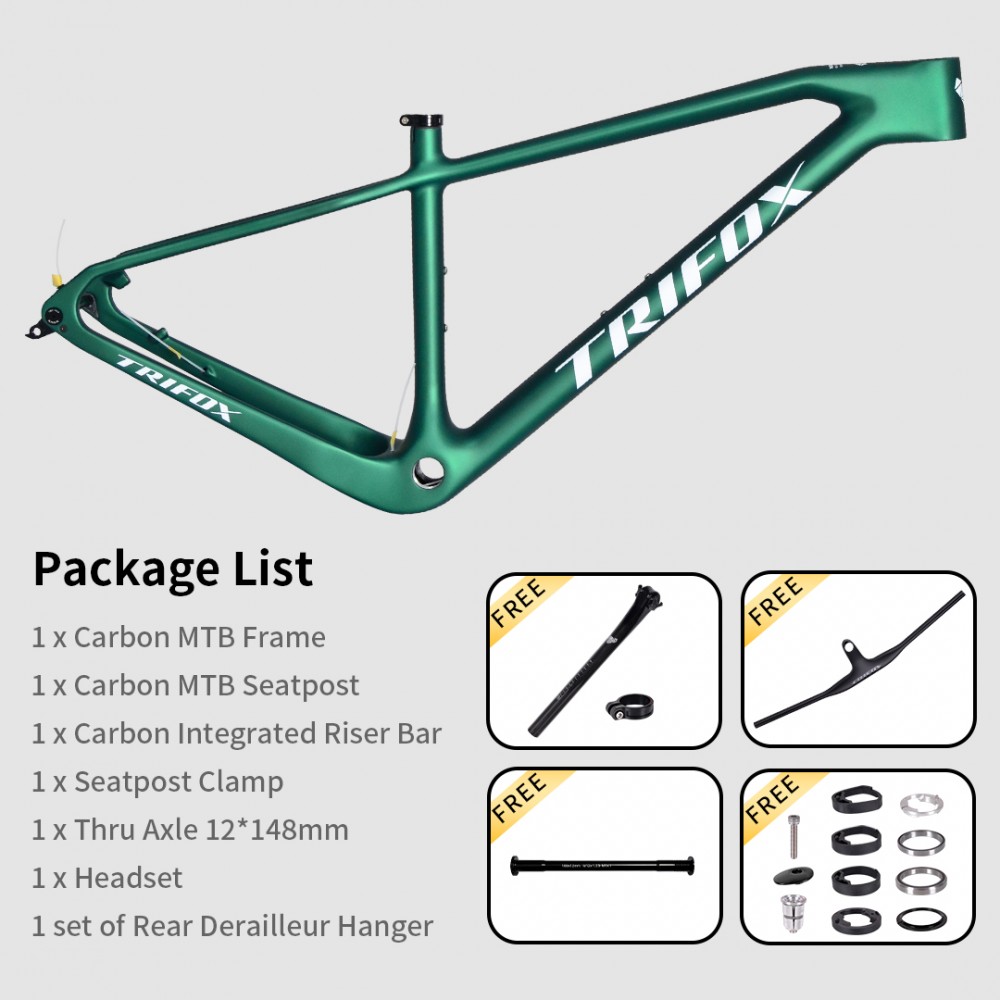

| Package Content | 1 x Carbon MTB Frame |
| 1 x Carbon MTB Seatpost | |
| 1 x Integrated Riser Bar | |
| 1 x Seatpost Clamp | |
| 1 x Thru Axle Skewer (142TA / 148TA) | |
| 1 x Headset | |
| 1 set of Rear Derailleur Hanger | |
| 1 x Derailleur Hanger Protector |

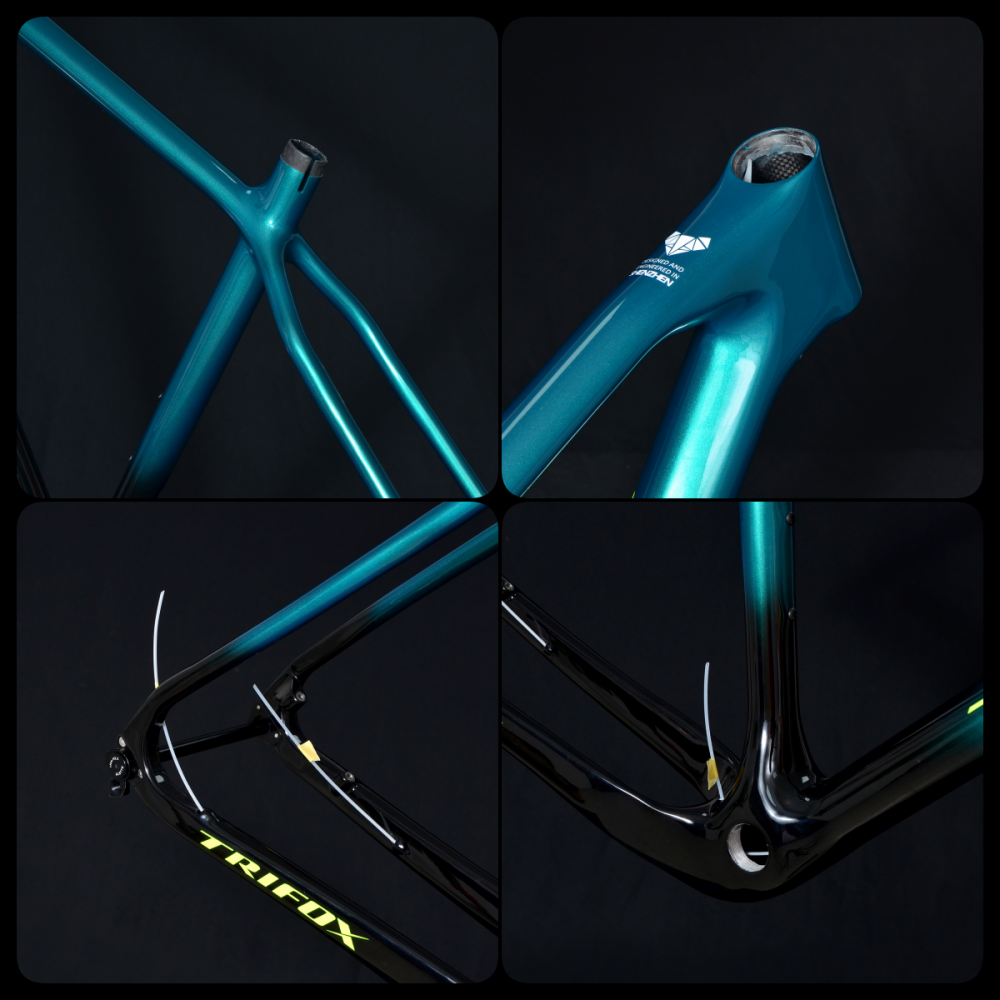

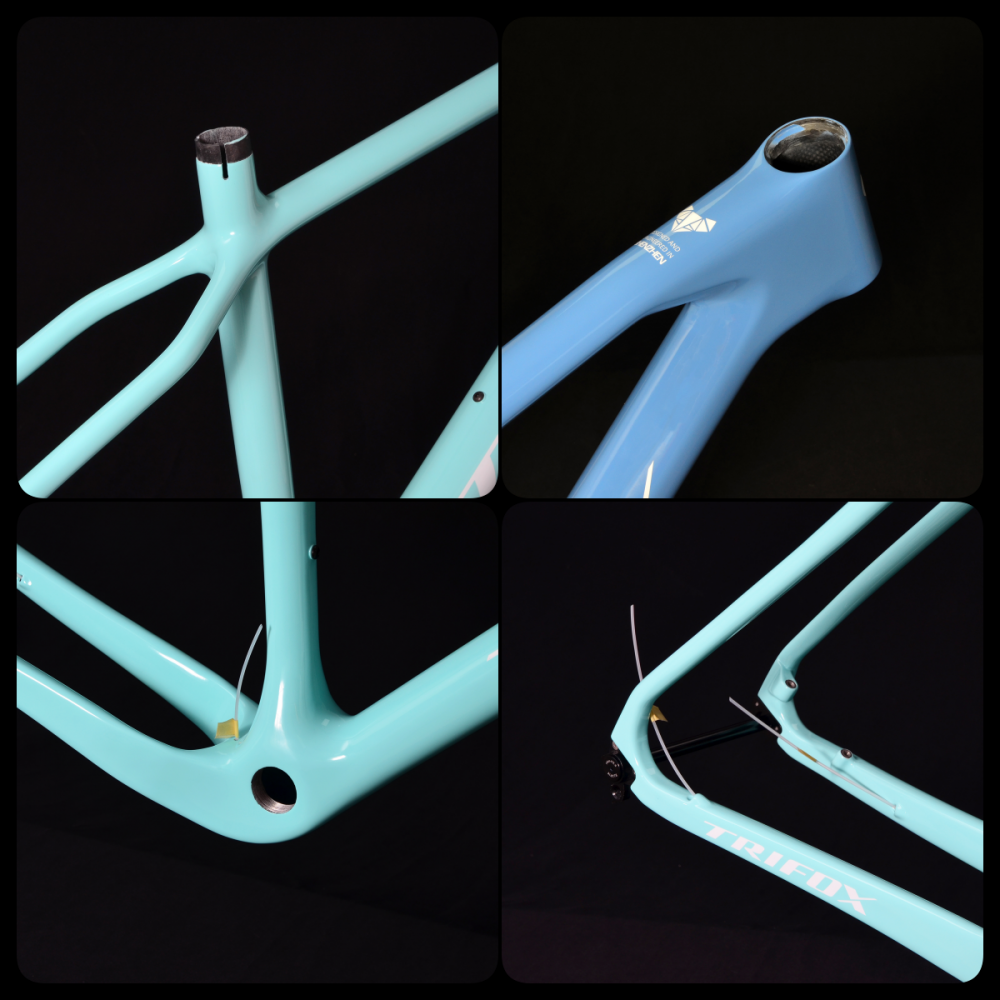

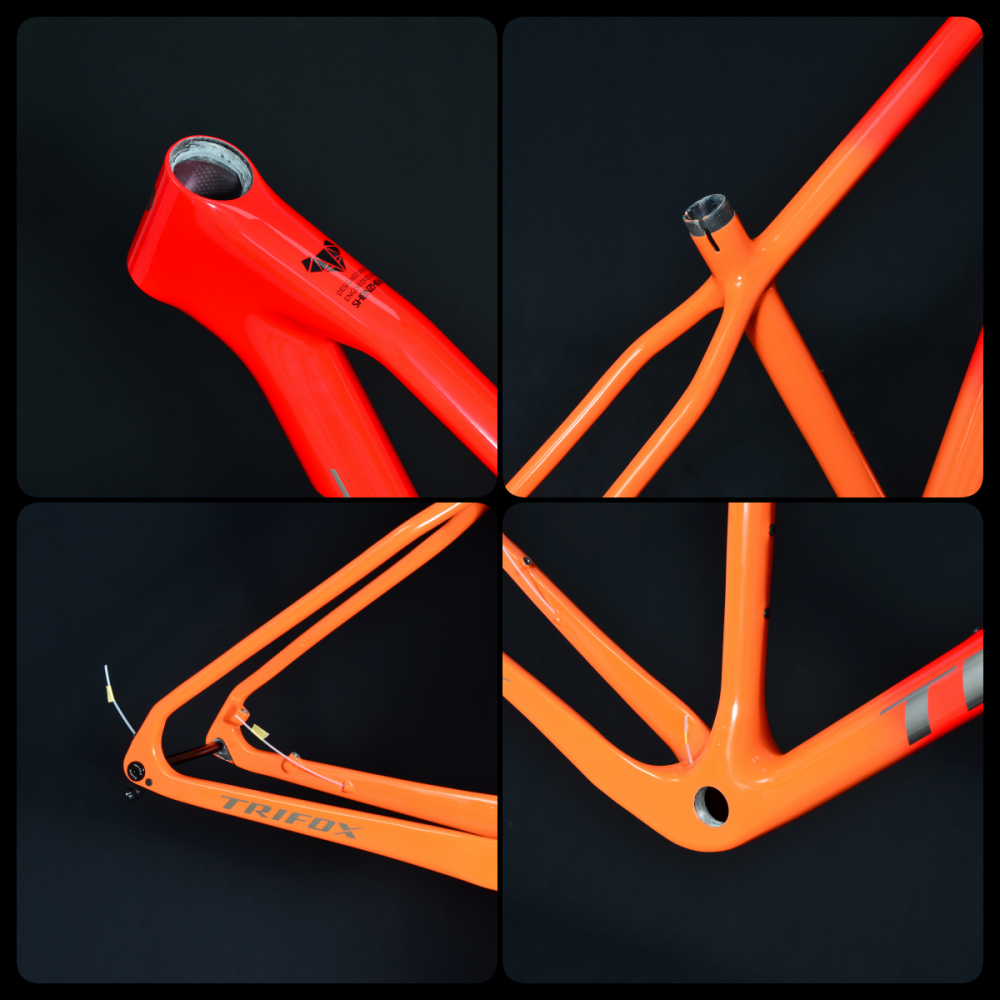

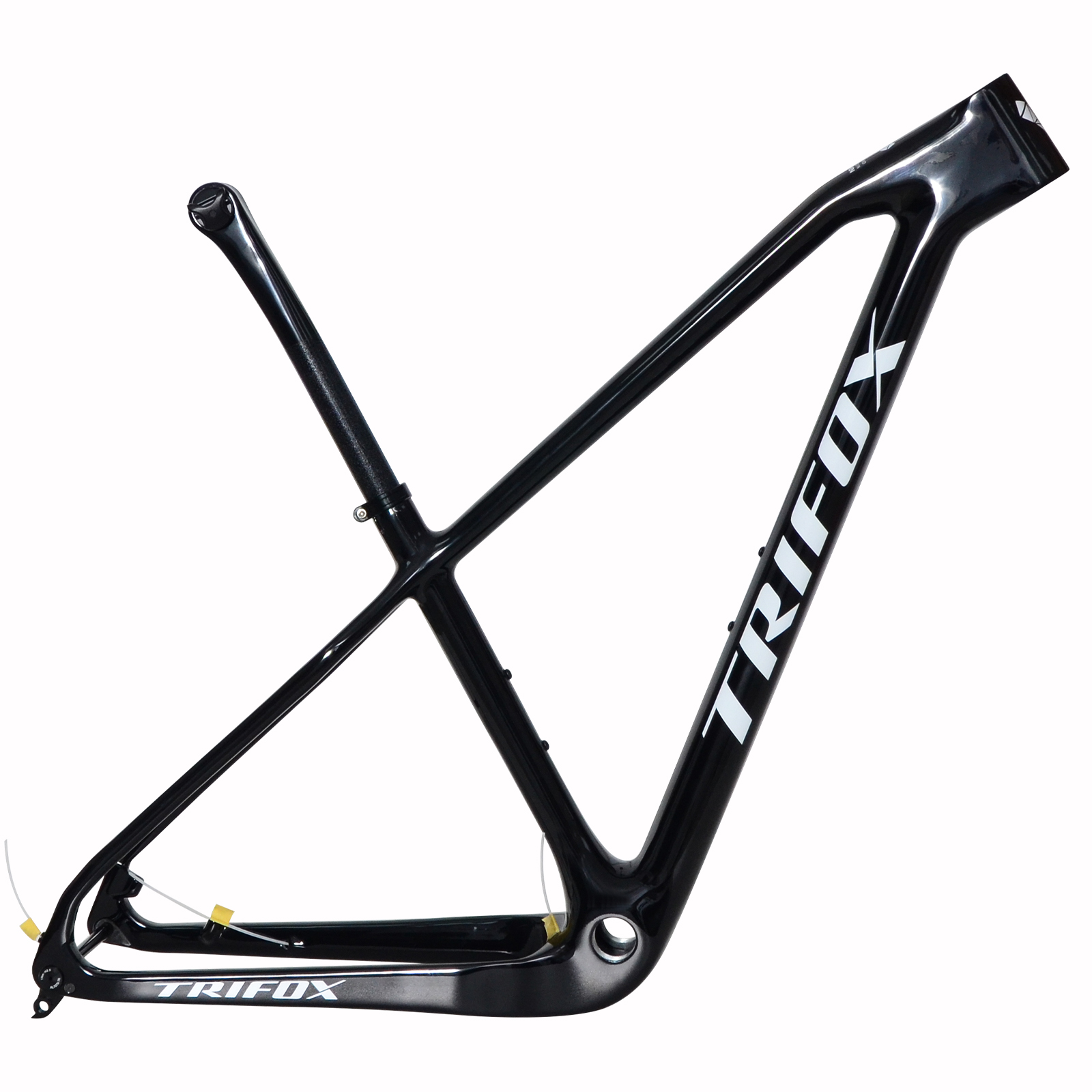

Real Shot
Product Geometry
| Place | Name | 15.5” | 17” | 19” |
| A(mm) | Stack | 596 | 606 | 615 |
| B(mm) | Rreach | 405 | 430 | 450 |
| C(mm) | Head tube length | 90 | 100 | 110 |
| D(°) | Head Tube Angle | 70 | 70 | 70 |
| E(mm) | BB Drop | 65 | 65 | 65 |
| F(mm) | Fork Lenght Full | 482 | 482 | 482 |
| G(mm) | Fork Rake/Offset | 45 | 45 | 45 |
| H(mm) | Front Center | 659 | 680 | 703 |
| I(mm) | Chainstay Length | 443 | 443 | 443 |
| J(mm) | Wheelbase | 1094 | 1115 | 1138 |
| K(mm) | Top Tube Length Horizontal | 587 | 615 | 638 |
| L(mm) | Seat Tube Lenght | 394 | 430 | 470 |
| M(°) | Seat Tube Angle | 73 | 73 | 73 |

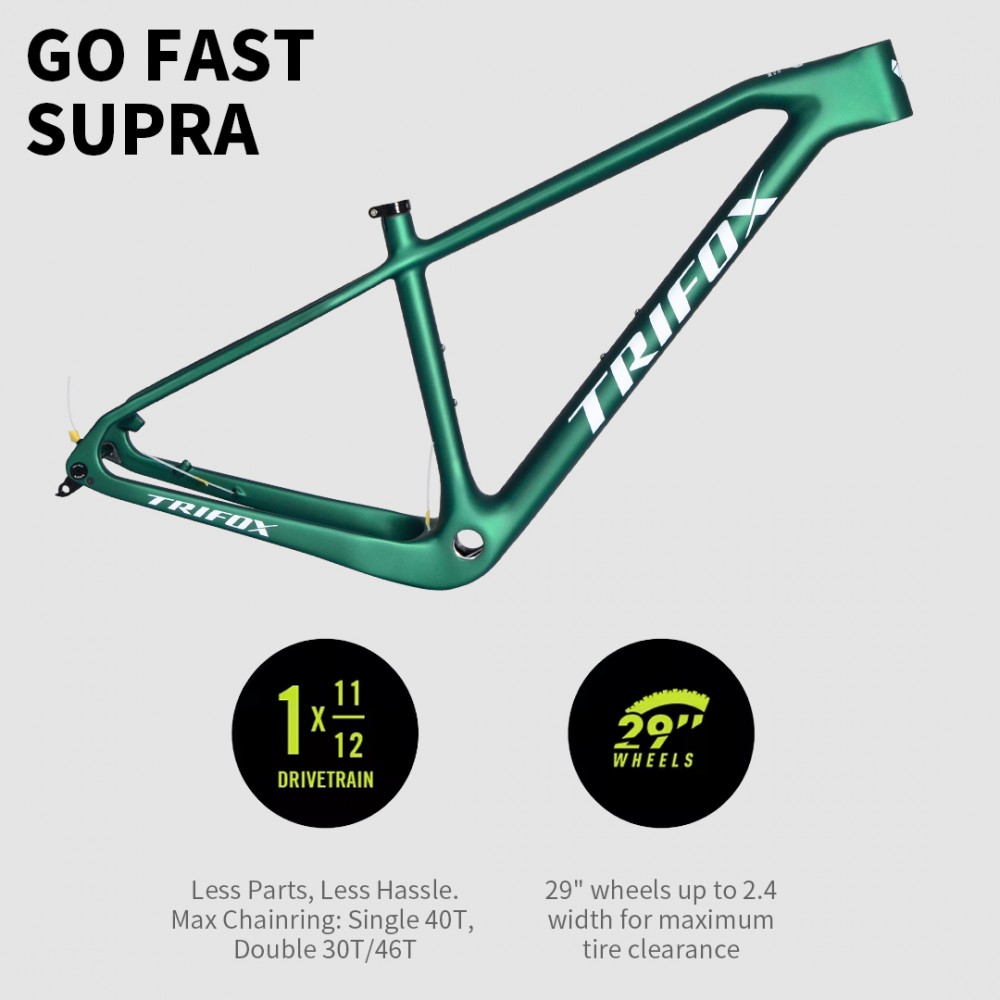

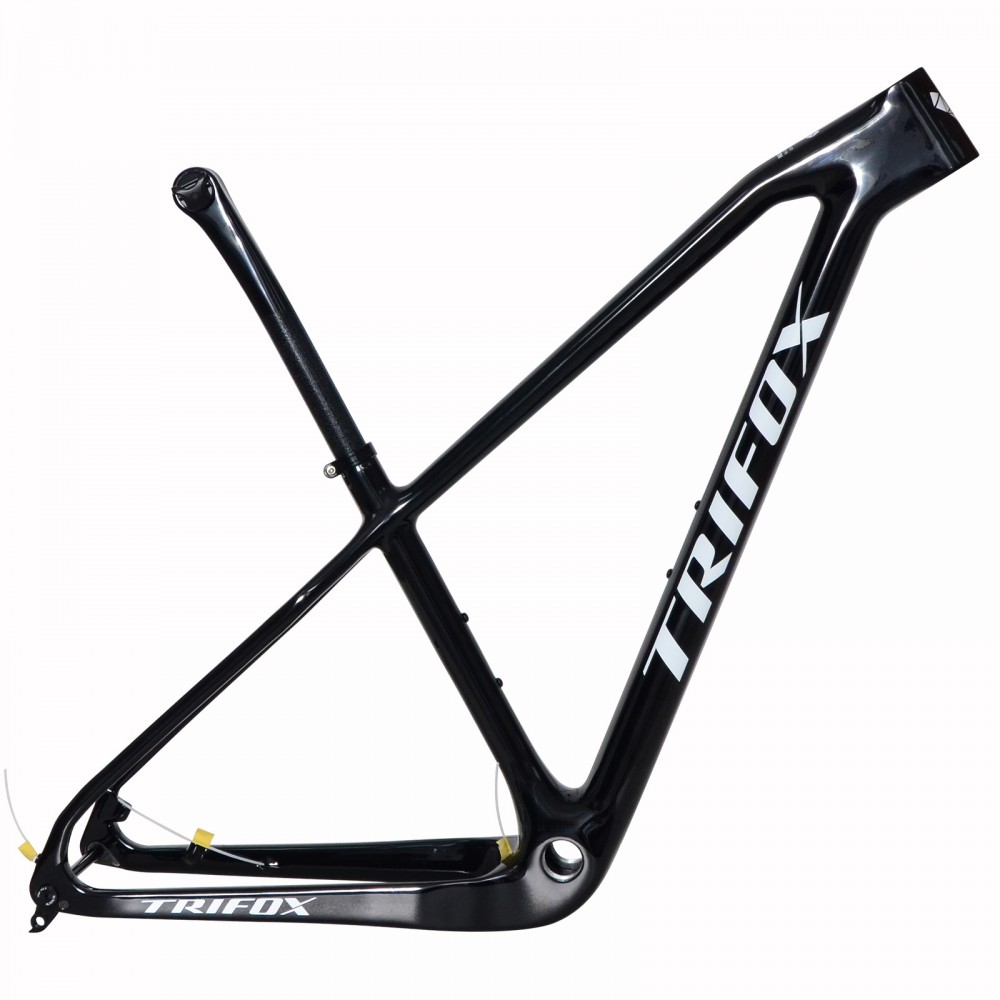

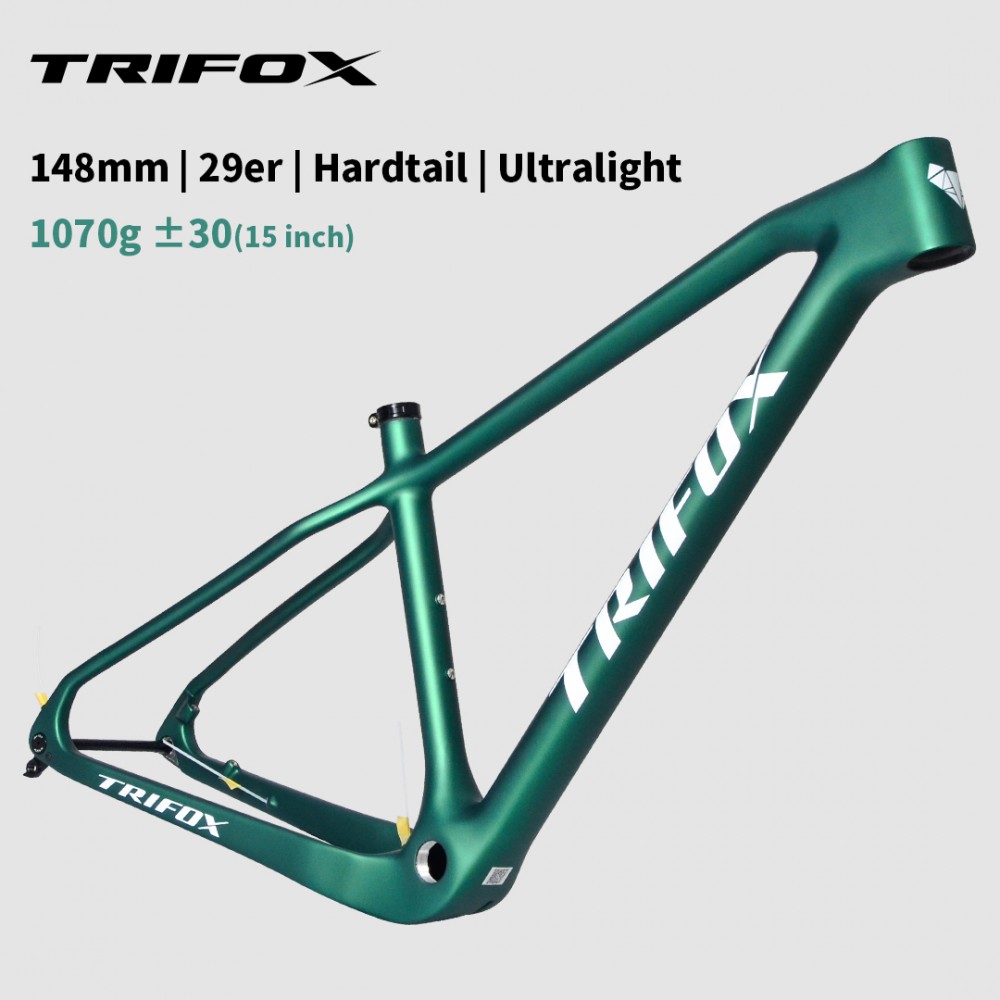

T800 29er carbon MTB hardtail frame

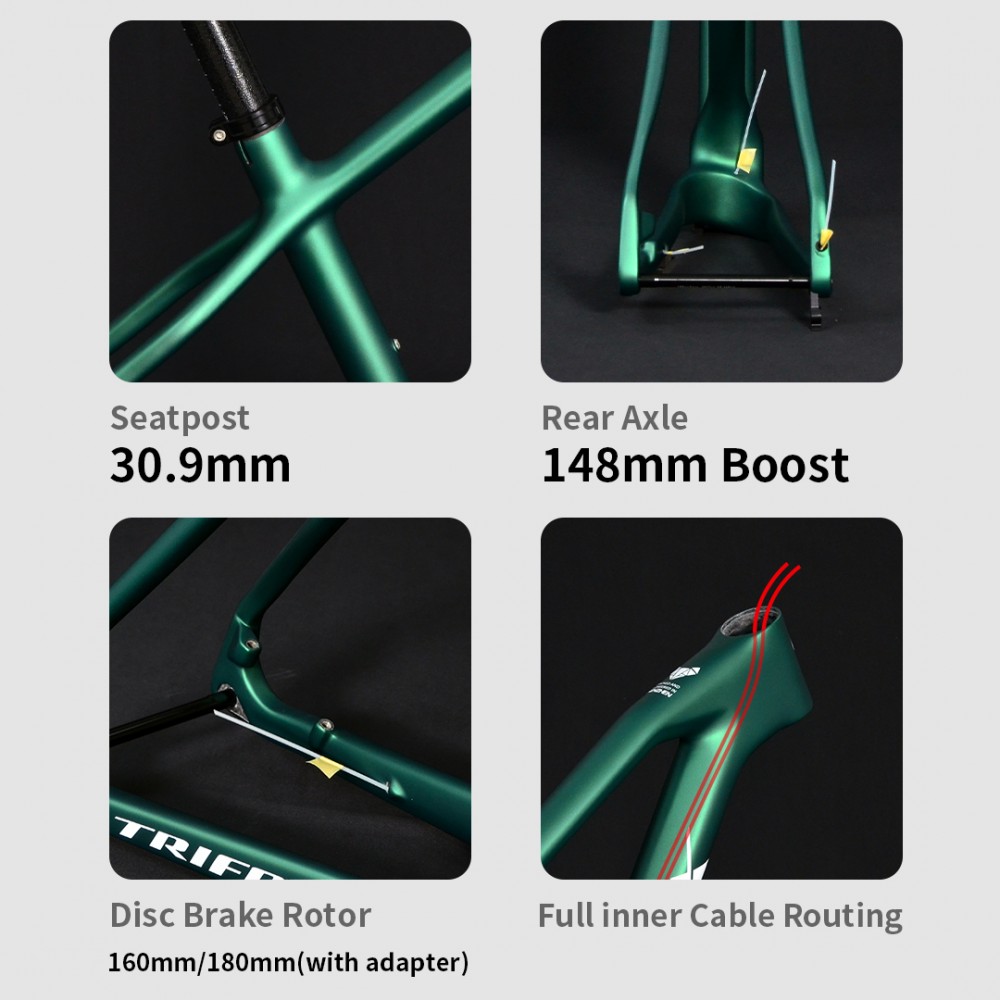

Full Internal Cable Routing and Unique Structure.
Features 3K Carbon Fiber Woven, stiffer and more textured.
The spray paint retains the effect of the 3K woven, which highlights the high quality of carbon fiber.
Suitable for seatpost with 30.8mm.
A variety of O.L.D space and a variety of stem size available for you.
Ergonomic design providing you a safer and comfortable riding.
Switch between Quick Release and Thru Axle at will(135QR and 142TA), Quick Release Skewer and Thru Axle Skewer can be changed each other depends on the style of Derailleur Hanger.
Product Weight
| MTB Frame (only frame) | ||
| 135QR | 15.5 inch | 992g |
| 17 inch | 1051g | |
| 19 inch | 1057g | |
| 142TA | 15.5 inch | 1028g |
| 17 inch | 1051g | |
| 19 inch | 1075g | |
| 148TA | 15.5 inch | 1017g |
| 17 inch | 1060g | |
| 19 inch | 1085g | |
| Components | ||
| Thru-Axle Skewer | 142TA & 148TA | 44g |
| Seatpost Clamp | 30.9mm | 14g |
| Seatpost | 400mm | 183g |
| Riser Bar | 90mm | 376g |
| 100mm | 380g | |
| 110mm | 386g | |

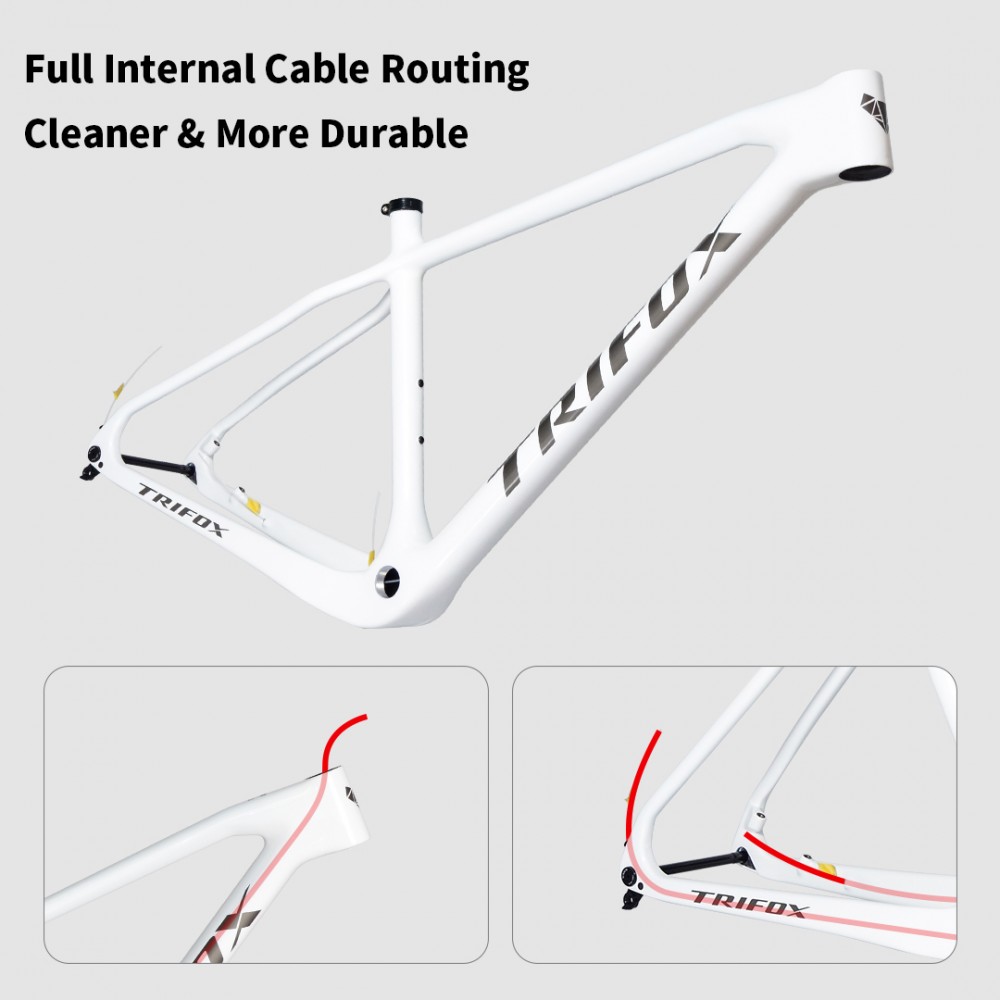

Internal wiring diagram
Product Details
