Carbon Road Bike Wheels WT11
-
SHIMANO HG(8-11s) Standard
-
SRAM XDR(12s) - purchased separately
-
40mm
-
45mm
-
50mm
-
60mm
- Overview
- Features
- Specs
- Sizing
- Customers Reviews

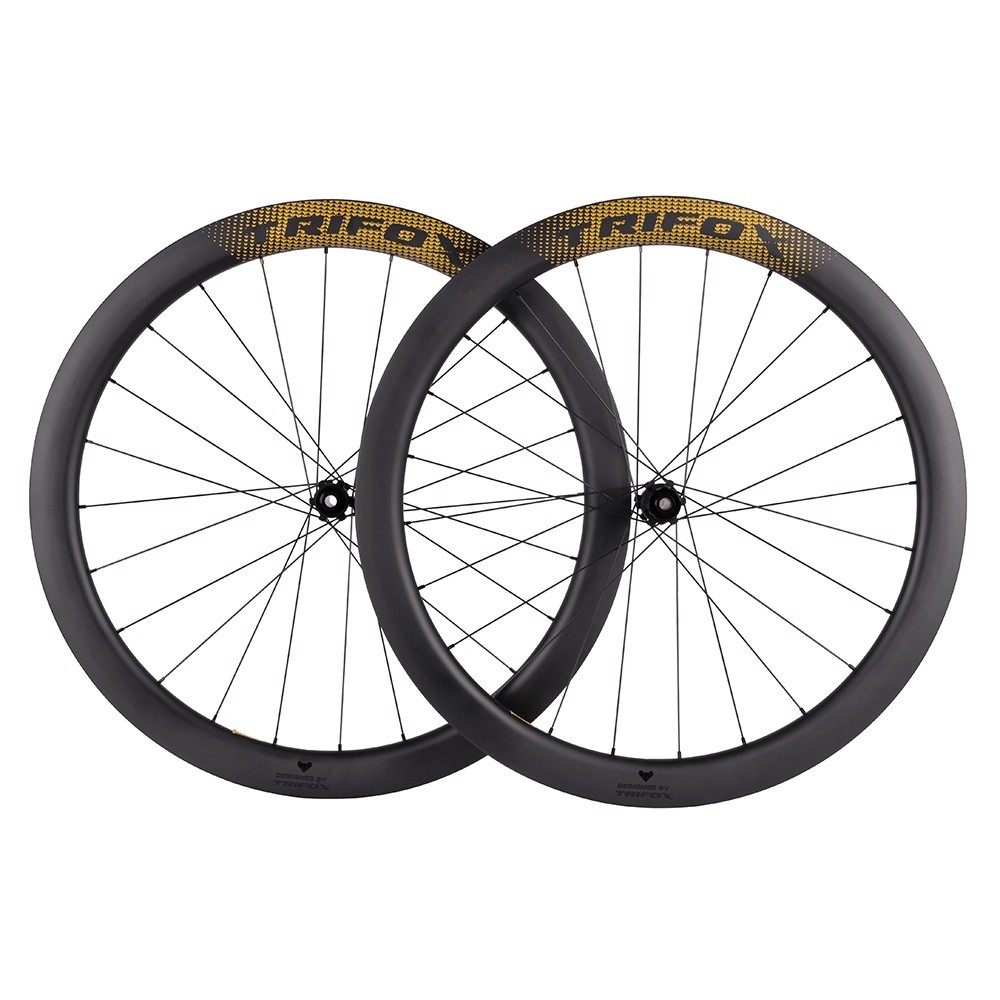

Trifox WT11 Carbon Disc Wheels offer exceptional performance for road cyclists with UD / Matte finish and unique gold TRIFOX logo. Crafted from 100% Toray T800 carbon fiber, the disc wheelset is lightweight, strong, and durable, ensuring improved aerodynamics, stiffness, and stability across various terrains. Utilizing Pillar spokes and spoke nipples, the straight pull 24-hole design provides excellent strength and corrosion resistance. The aluminum alloy T11 bicycle hub is compatible with Shimano and SRAM cassettes for optimal gearing options. The disc brake center lock design guarantees consistent braking power. The front thru-axle and rear thru-axle measure 12x100mm and 12x142mm. High-performance sealed hub bearings ensure smooth rolling and minimal friction. And the quick-release freehub body allows for easy maintenance without the need for tools. Besides, with various depth options, including 40mm, 45mm, 50mm, and 60mm sizes, the WT11 carbon wheels are compatible with 700 x 25C clincher tires, enabling customizable wheelset configurations to suit your specific cycling needs.
- Made of lightweight carbon fiber
- Highly sealed hub bearings
- Easy and simple maintenance without tools
- Compatible with Shimano 8/9/10/11 speed, SRAM XDR 12 speed

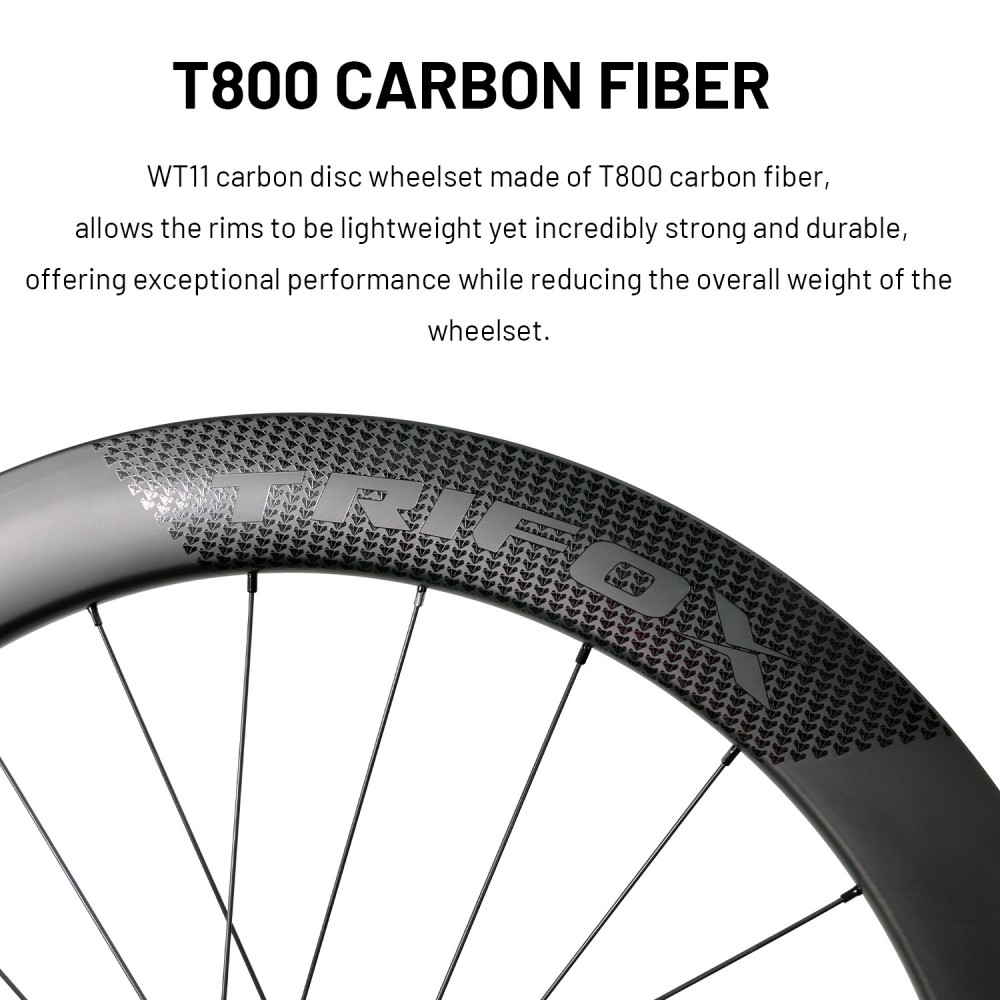

WT11 carbon disc wheelset made of 100% T800 carbon fiber, allows the rims to be lightweight yet incredibly strong and durable, offering exceptional performance while reducing the overall weight of the wheelset.
Wheel spokes and spoke nipples from the renowned brand Pillar, with 24 holes for both front wheel and rear wheel, straight pull style. The spokes are made of stainless steel, which provides excellent strength and corrosion resistance, ensuring long-lasting durability for your carbon wheelset. The spoke nipples are crafted from aluminum alloy, which offers a lightweight yet strong connection between the spokes and the rim.
Trifox T11 versatile road bike hub, made of aluminum alloy, compatible with Shimano 8 to 11-speed cassettes or SRAM XDR 12-speed systems, providing a wide range of gearing options for optimal performance.
The disc brake center lock design ensures consistent and efficient braking power, while the front thru-axle measures 12x100mm and the rear thru-axle is 12x142mm, enhancing the wheel's stability and rigidity.
Featuring two bearings in the front wheel and four bearings in the rear wheel, the T11 hub ensures smooth rolling and minimal friction, contributing to a more enjoyable and efficient riding experience on the road. With its advanced design and compatibility, the Trifox T11 road hub is an excellent choice for cyclists seeking a reliable and high-performing component for their road bikes.
The T11 road bike hub features a quick-release freehub body, making disassembly and installation a breeze. No tools are required for this process, as it can be easily operated by hand. This user-friendly design ensures that maintaining and servicing your hub remains hassle-free and convenient.

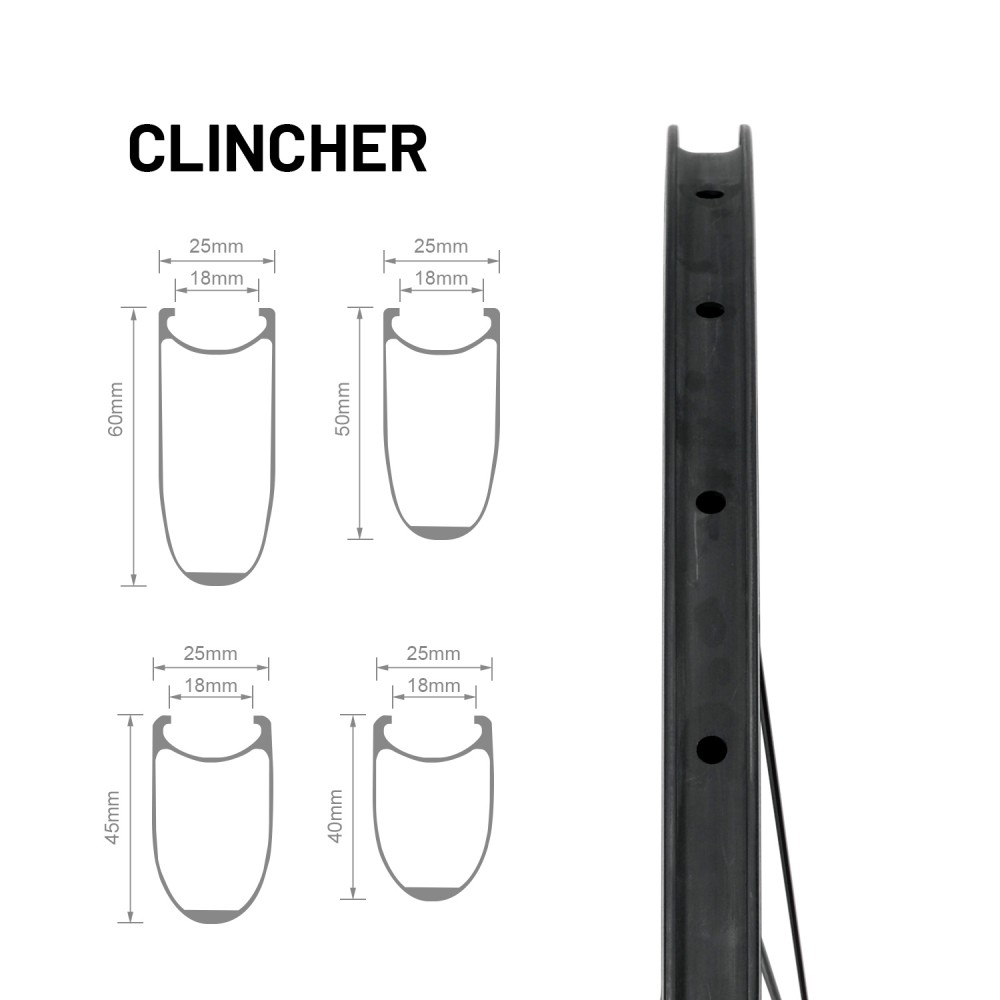

The WT11 carbon wheels feature 25mm outer width and 18mm inner width. Available depths in 40mm, 45mm, 50mm, and 60mm sizes. Compatible with 700 x 25C clincher tires. Allowing you to select the perfect fit for your wheelset configuration.
1 pair of wheelsets with hubs included
1 pair of rim tapes
4 pcs spare spokes
; ?>){kind=icon}

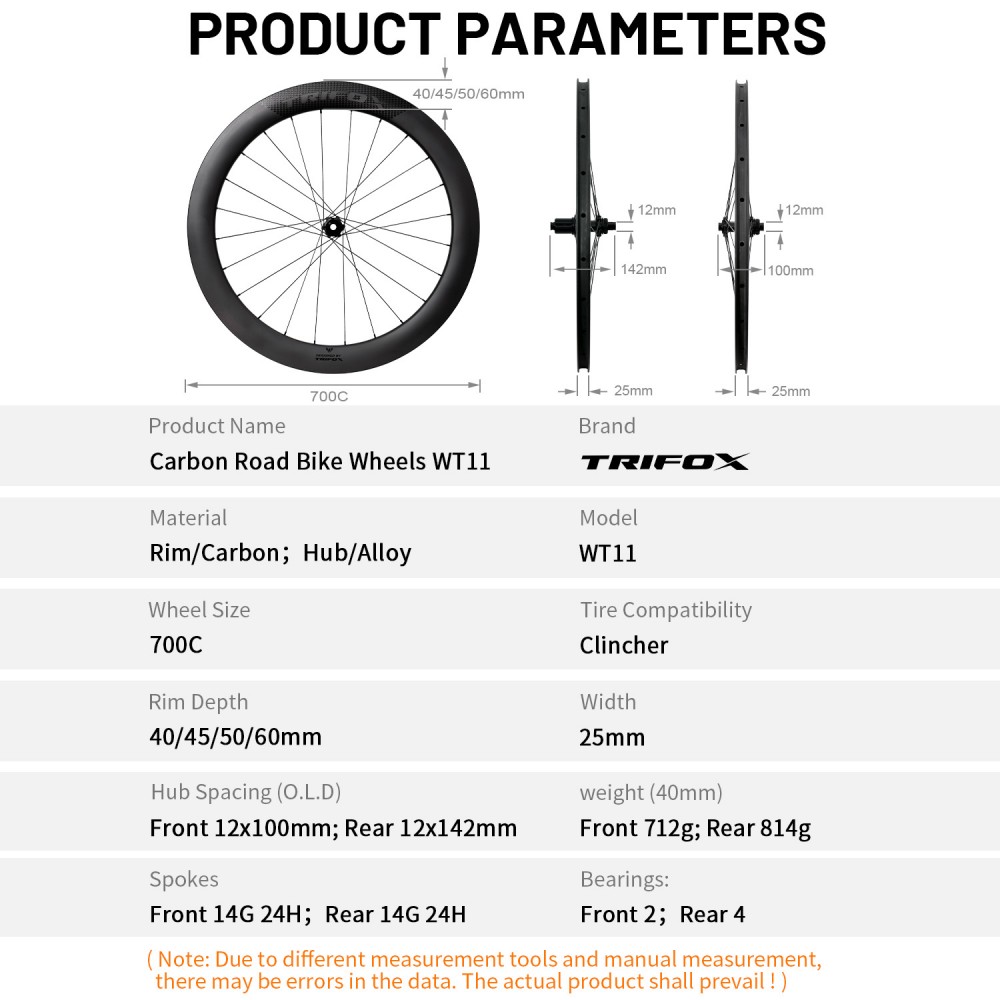

Rim | Model | WT11 |
|---|---|
| Type | Super Light Road Bike Wheelset |
| Wheel Size | 700C |
| Tire Compatibility | Clincher |
| Rim Depth | 40mm/45mm/50mm/60mm |
| Inner Width | 18mm |
| Outer Width | 25mm |
| Rim Finish | UD / Matte |
| Rim Material | 100% Carbon Fiber Toray T800 |
Spoke | Front Spoke | Straight Pull, 14G, 24H |
|---|---|
| Rear Spoke | Straight Pull, 14G, 24H |
| Spoke Type | Pillar Stainless Steel |
| Nipple Type | Pillar Alloy Secure Lock |
Hub | Hub Model | Trifox T11 |
|---|---|
| Hub Spacing (O.L.D) | Front 12x100mm; Rear 12x142mm |
| Hub Bearing | Front 2 Bearings; Rear 4 Bearings |
| Hub Material | Aluminum Alloy |
| Brake Compatibility | Disc (Center Lock) |
| Attachment | Thru Axle |
| Freehub Type | 4 Pawls |
| Cassette Compatibility | Shimano 8/9/10/11S / SRAM XDR 12S |
Other | Rider Weight Limit | 220lb / 100kg |
|---|---|
| Recommended Tire Sizes | 700 x 25C |
| Recommended Tire Pressure | 90-135psi |
| Package Content | 1 Pair of Carbon fiber Road Bike Thru Axle Wheels WT11 (come with hubs already) 1 Pair of Rim Tapes (Nylon Rim Tape Clincher, Wheel Strip Inner Tube Pad) 4 Pcs spare spokes |
| Guarantee | 2 years |
| Size | Weight (+-20g) | Weight (+-20g) |
|---|---|---|
| 40mm | 712g Front | 814g Rear |
| 45mm | 719g Front | 823g Rear |
| 50mm | 726g Front | 832g Rear |
| 60mm | 788g Front | 908g Rear |
