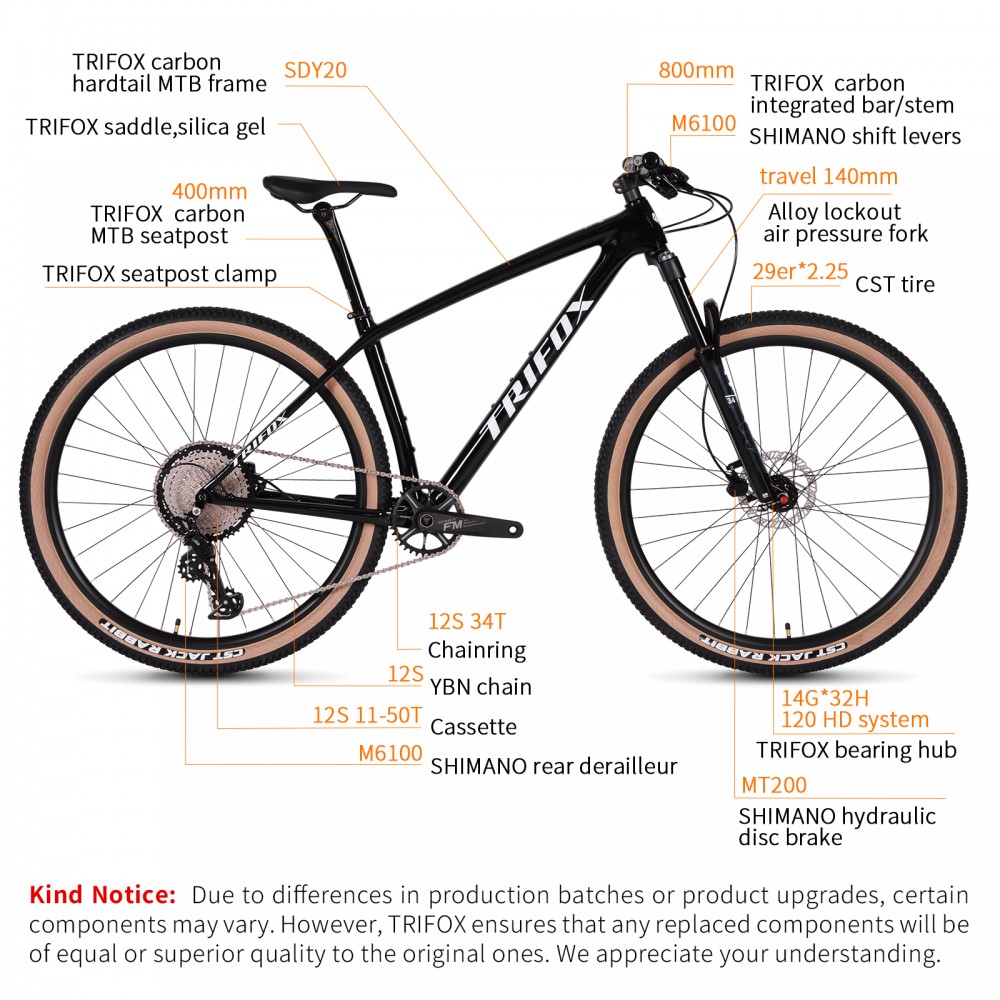

Ultra Light Carbon Hardtail MTB SDY20 BIKE Specifications
*Please note - spec applies to all sizes unless listed separately
*Please note - spec applies to all sizes unless listed separately
; ?>){kind=icon}
COCKPIT | Seatpost | TRIFOX Carbon fiber 400mm Mountain Seatpost, 2-bolt clamp, 30.9mm, T1000 |
|---|---|
| Saddle | TRIFOX Mountain Bicycle Comfortable, lightweight Saddle |
| Handlebar | TRIFOX Carbon intergrated handlebar, 28.6mm |
| Fork | TRIFOX Aluminum Air pressure lockout fork, 120mm travel, alloy steerer, 110 x 15mm |
DRIVETRAIN | Brake | SHIMANO BR-MT200, Hydraulic Disc, 160mm |
|---|---|
| Shift Levers | SHIMANO Deore M6100, 12-speed; SHIMANO Deore M6100, SGS, 12-speed |
| Cassette | 12-speed, 11-50T |
| Chainrings | 12-speed, 34T, Hollow integrated chainring |
| Chain | YBN 12-speed |
| Bottom Bracket | TRIFOX BSA - BB68 (φ 34mm, L 68mm) |
WHEELS & TIRES | Wheel | TRIFOX Alloy Mountain Bike Wheels WM823 BOOST |
|---|---|
| Tire | CST 29*2.1, 40mm, Clincher, 60MM F/V |
| Spoke | Pillar Stainless Steel; 14G*32H; 14G*32H |
| Hub Bearing | Front 2 Bearings; Rear 4 Bearings; Ceramic |
| Hub Material | Aluminum Alloy AL6061(body) + AL7075(Alxe) |
| Freehub Type | 6 Pawls, 3 Teeth, 120 HD SYSTEM |
| Freehub Body Material | 7075 aluminium alloy; Shimano 8/9/10/11S / SRAM XDR 12S |
| Braking System | 6-bolt Disc Brake |

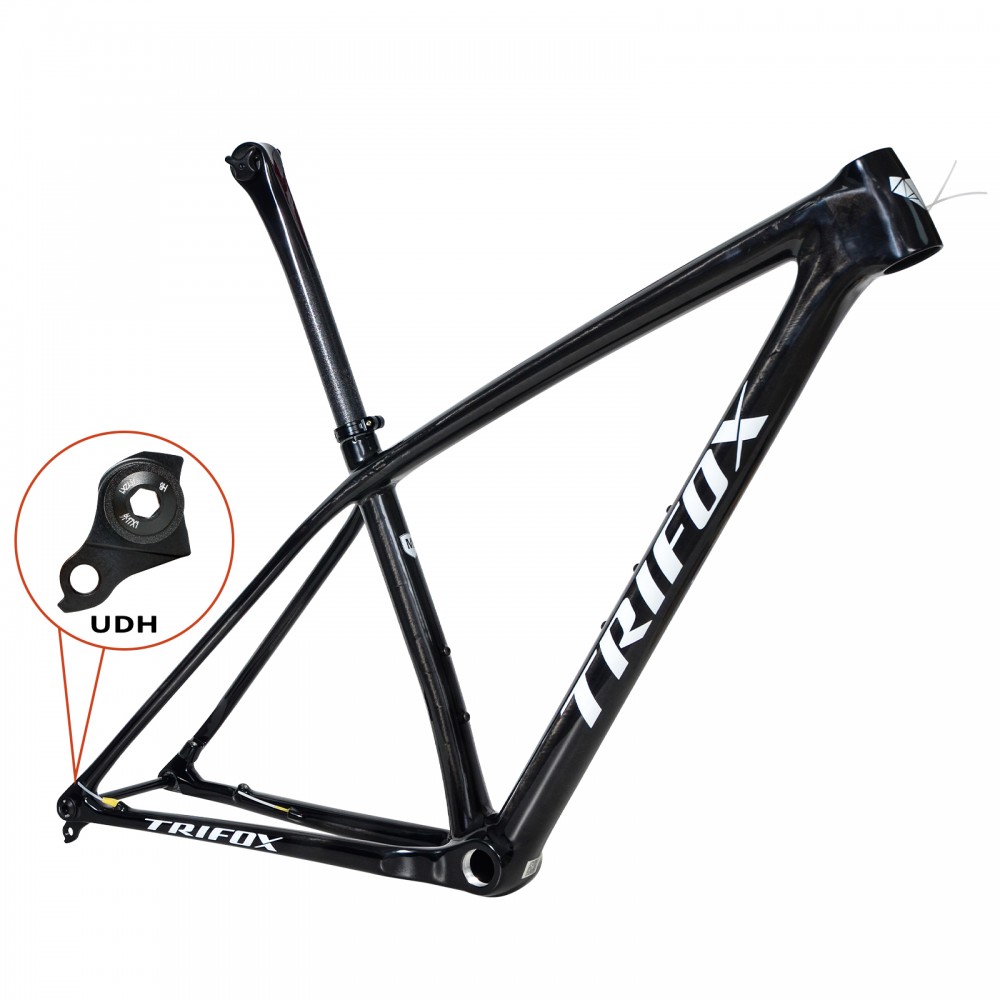

FRAMESET | Frame | 29er Carbon Mountain Hardtail Frame |
|---|---|
| Size | S/M/L |
| Color | Black |
BRAKES | Front Brake | SHIMANO BR-MT200, Hydraulic Disc, 160mm |
|---|---|
| Rear Brake | SHIMANO BR-MT200, Hydraulic Disc, 160mm |
Carbon Hardtail Mountain Bike Frame SDY20 Sizing guide
*All measurements provided in cm unless otderewise noted.
| Size | Rider Height | Inseam |
|---|---|---|
| S | 150-170cm | 63-77cm |
| M | 165-180cm | 78-86cm |
| L | 173-185cm | 87-95cm |
Ultra Light 29er Carbon Hardtail MTB Frame SDY20 Geometry
*All measurements provided in cm unless otherwise noted.
| Place | Frame | S | M | L |
|---|---|---|---|---|
| A (°) | Head Tube Angle | 68.5 | 68.5 | 68.5 |
| B (°) | Seat Tube Angle | 74 | 74 | 74 |
| C (mm) | Chainstay Length | 430 | 430 | 430 |
| D (mm) | BB Drop | 63 | 63 | 63 |
| E(mm) | Wheel Base | 1090 | 1115 | 1146 |
| F(mm) | Seat Tube Length | 400 | 430 | 470 |
| G (mm) | Stack | 608 | 608 | 622 |
| H (mm) | Top Tube Length Horizontal | 579 | 604 | 633 |
| I (mm) | Reach | 405 | 430 | 455 |
| J (mm) | Head Tube Length | 85 | 95 | 110 |
| K (mm) | Fork Length Full | 506 | 506 | 506 |
