Aluminum Mountain Frameset MK7 PRO 19-Inch
- Product Details
- Customers Reviews
Aluminum Boost Hardtail MTB Frame MK7 PRO 19-Inch
Parameter
| Brand | Trifox |
| Model | MK7 PRO |
| Product Name | Hardtail MTB Frame MK7 PRO |
| Type | MTB Frame |
| Style | Boost Frame; Triple butted, 29er Aluminum Mountain Hardtail Frame, Smooth processing integrated flat welding technology, Disc brake, 12*148mm,BSA-BB68 |
| Dropout | Thru-Axle, UDH Derailleur Hanger, |
| Material | 6061 Aluminum Alloy |
| Finish | Glossy |
| Painting | White Glossy, Black Glossy, Matt Green |
| Head Tube | 44-55mm (1-1/8"-1-1/2") |
| Seatpost diameter | 31.6mm |
| Seatpost Climp | 34.9mm |
| Bottom Bracket | BC 1.37*24T(BB68 - BSA -Threaded) |
| Disc Brake Rotor | 160mm |
| Max Tire | 27.5er * 2.8"; 29er * 2.4" |
| Crankset | Max 38T; Double Chainring 28T * 38T |
| O.L.D (BOOST) | Axle: Ø12*148mm |
| Braking System | Disc Brake |
| Package Content | 1 x Aluminum Alloy MTB Frame MK7 PRO 19-Inch |
| 1 x Rear Thru Axle Skewer | |
| 1 x UDH Rear Derailleur Hanger | |
| 1 set of headset | |
| Seatpost insertion length | 7cm to 12cm |
| Warranty | 2 years |
| Weight | 19''-1894g±30 (reference 175-190cm) |
Product Geometry
| Frame Part | 15" | 17" | 19" | |
| A (°) | Seat tube length | 67.5 | 67.5 | 67.5 |
| B(°) | Seat Tube Angle | 69 | 69 | 69 |
| C(mm) | Chainstay Length | 445 | 445 | 445 |
| D(mm) | BB Drop | 58 | 58 | 58 |
| E(mm) | Wheel Base | 1101.2 | 1125 | 1135.1 |
| F(mm) | Seat Tube Length | 381 | 432 | 483 |
| G(mm) | Stack | 604.3 | 631.6 | 622.8 |
| H(mm) | Top Tube Length Horizontal | 558.3 | 580.9 | 590 |
| I(mm) | Reach | 385 | 405 | 411.2 |
| J(mm) | Head Tube Length | 95 | 105 | 115 |
| K(mm) | Fork Length Full | 515 | 515 | 515 |

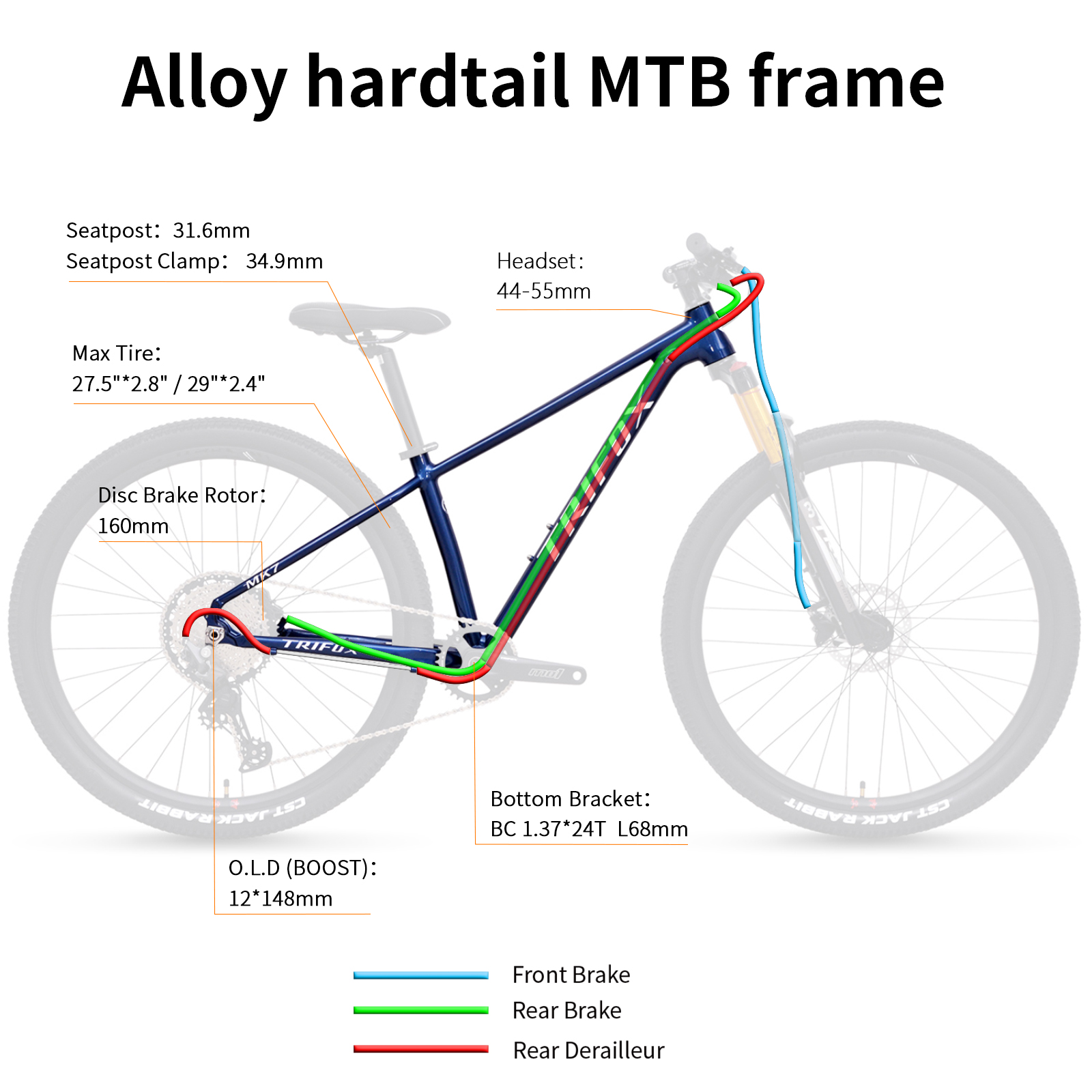

Internal cable routing diagram
VERSATILITY and PERFORMANCE: Just as capable of getting you to work or class, as it is checking off your local KOM or weekend group ride enough for whatever road you take it on.
LIGHTEST IN CLASS: Starting with premium butted and Triple-butted alloy, the mk7 frame tips the scales at just 1728 grams for a quick and nimble feel on the mtb.
INCREDIBLE CONFIDENCE: This premium mk7 alloy frame is light, fast, durable, and, did we mention, gorgeous? The excellent stiffness-to-weight ratio coupled with the unmatched stopping power of all-weather disc brakes delivers ultimate confidence at any speed.
Product Weight
| MTB Frame (Frame, Thru-Axle Skewer, Hange) | |
| 15" | 1755g ± 30g (reference 150-170cm) |
| 17" | 1858g ± 30g(reference 165-180cm) |
| 19" | 1894g ± 30g(reference 175-190cm) |
