Carbon MTB Frame MFM200

10 Reviews
$ 279.00 $639.99 -56%
Painting:
Size:
  • 15.5 (150 -165cm)
  • 17 (165 - 175cm)
  • 19 (175 - 190cm)
Dropout Hanger:
  • Quick Release
Qty:
1
In stock
Warranty policy, Learn More
Description

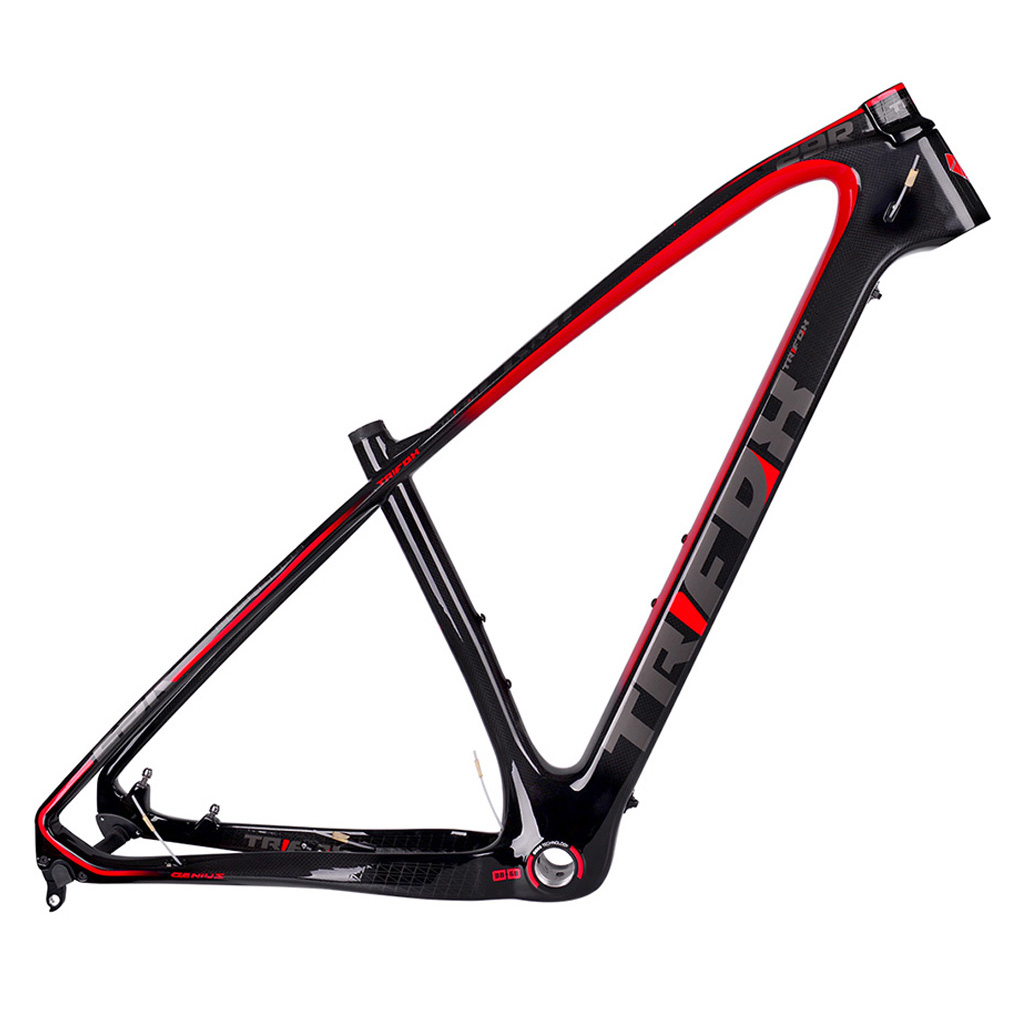

29er Carbon MTB Hardtail Frame MFM200

Trifox carbon mtb frame MFM200 Colors

Parameter

BrandTrifox
ModelMFM200
Product NameMTB Hardtail Frame MFM200
TypeMTB Frame
StyleHardtail Frame
MaterialT800 Full Carbon Fiber
Fabric3K
Available size29er 15.5/17/19 inches (S/M/L)
Headtube DiameterTapered 1-1 / 8" to 1-1 / 2"
Bottom BracketBB68 - BSA
Single chainring drivetrainMax 34T
Double chainring drivetrainCL48.5 44/30T
Triple chainring drivetrainCL50.0 42/32/24T
Max Fork Travel120mm
Quick Release O.L.DØ9mm x 135mm
Thru Axle O.L.DØ12mm x 142mm (Style: Thru Axle with lock nut)
Rear Disc Brake Rotor160mm / 180mm
Finished:Glossy(default) or Matt
Suitable For Seatpost31.6mm
Maximum tire size2.1"
Recommend Wheel Size29er
BrakeOil / Mechanical Disc Brake
HangerQuick Release Skewer and Thru Axle Skewer can be changed each other depends on the style of Derailleur Hanger
Package Content1 x Carbon MTB Hardtail Frame MFM200
1 x Rear Derailleur Hanger (Quick Release)
NOTE: The Thru Axle Rear Skewer is not included in the package
Seatpost insertion length7cm to 12cm
Warranty2 years

Trifox MFM200 mtb frames for sale Geometry

Product Geometry

Frame part
15.5
17
19
A(mm)BB center to the top of seat tube394432483
B(mm)Top tube length horizontal570585600
C(mm)BB Drop555555
D(mm)Chainstay length440440440
E(°)Seat tube angle737373
F(°)Head tube angle707070
G(mm)Front Center641656672
H(mm)Head tube length8595110
I(mm)Fork offset515151
K(mm)Stack591601615
J(mm)Reach390402412

➤T800 carbon Fiber Toray 29er mountain bike frame with BB68, the weight is only 1200g.

➤Features 3K Carbon Fiber Woven, harder and more textured.

➤suitable for seat post with 31.6mm.

➤Ultra-lightweight, strong, and durable.

➤Internal Routing and Unique Structure.

➤Ergonomic design providing you a safer and comfortable riding.

➤Switch between Quick Release and Thru Axle at will, Quick Release Skewer and Thru Axle Skewer can be changed each other depends on the style of Derailleur Hanger. Click here to buy Thru Axle Rear Derailleur Hanger for Carbon MTB Frame MFM200.

(NOTE: The thru-axle shaft hole of the frame is not threaded and must be equipped with a lock nut. Please pay attention to whether the total length is sufficient and whether the nut can enter the thru-axle shaft hole, pay attention to the specification matching.)

Trifox mtb hardtail frame Cable Routing

Product Weight

SizeWeight
15.5"1239 ± 20g
17"1279g ± 20g
19"1337g ± 20g
trifox mtb frame 29 MFM200 Details 1Trifox 29er hardtail frame MFM200 Details 2

Size Recommend

Frame Size15.5" / S17" / M19" / L
Recommend Height150cm ~ 165cm165cm ~ 175cm175cm ~ 190cm
4 feet 11 inches ~ 5 feet 5 inches5 feet 5 inches ~ 5 feet 9 inches5 feet 9 inches ~ 6 feet 3 inches
Trifox carbon fiber mtb frame MFM200 Real Shot
trifox chinese carbon frame mtb MFM200 Package Content

customers reviews ( 10 )

4 / 5.0
5 stars 80%
4 stars 20%
3 stars 0%
2 stars 0%
1 stars 0%

By FK

Frame came well packed but some additional work was required. It is prepared for split cable housings (and only cables go through frame) and I wanted housings in whole, so I had to drill and file the grommets. The other problem was that i was unable to insert 31.6 seatpost and I had to grind that too. Furtunately I have a lot of tools, for someone who isn't that luckz, it could be a big problem when assembling the frame.
Review
Review
Review
2021-10-19 08:18:00

By Jason Caron

I’ve owned my frame(bike) since January and it’s held up very well. I’m 200lbs and I do not take it easy on the trials. At first I was nervous about breaking the frame but after a few runs I have full confidence that the bike will hold up. I went with a 1X -11 XT drivetrain and custom wheel set. The wheels had to be dished because the frame wasn’t exactly true. That’s my only complaint. It has modern geometry so upgrades down the road won’t be an issue.
Review
2020-10-13 10:46:00

By Robert J

High quality product, recommend, helpful super fast shipping, top product without amount!! trifox and brand guys buy this brand has absurd value!!
Review
Review
Review
2020-02-03 12:00:00

By Lance J

Frame very beautiful, soon will assemble the bike. Attentive, responds promptly and friendly.
Review
Review
Review
Review
2019-12-09 12:00:00
Muy contento con la compra. Excelente servicio de atención y comunicación con el cliente. El producto vino muy bien empaquetado en una caja de cartón y embalado en plástico protector. Era la primera vez que cogía un cuadro de carbono y me llamó la atención lo ligero que es. La he montado con los componentes de mi MTB, cuyo cuadro es de aluminio y la diferencia de peso es abismal. El cuadro en sí es una preciosidad, los acabados de pintura y los detalles son una maravilla, las fotos no le hacen justicia, al natural es espectacular. Aún me queda montar el cambio y el sistema de freno trasero.
2022-11-24 02:40:10

By Carlos

Excelente calidad
2022-11-12 05:15:33
The frame looks amazing, better than the pictures.
2021-12-19 13:01:26
Very good!
2021-10-14 15:56:15

By Benj

The frame looks great with beautiful painting job. Fast delivery! Thank you so much TrifoxBike!
2021-04-01 01:08:00

By Davila

I finally received the material. Perfect condition. It takes a little long for shipment. :( I dp understand the delay at this hard time. Anywhere, thanks for Anna's help. :D
2021-01-27 02:33:00
