Carbon Road Bike Frameset X11
0 Reviews
$
729.99
$989.99
-26%
Painting:
Size:
-
XS-49
-
S-52
-
M-54
-
L-56
Qty:
In stock
Warranty policy,
Learn More
- Product Details
- Customers Reviews
Full Internal Cable Routing Carbon Road Bike Frameset X11

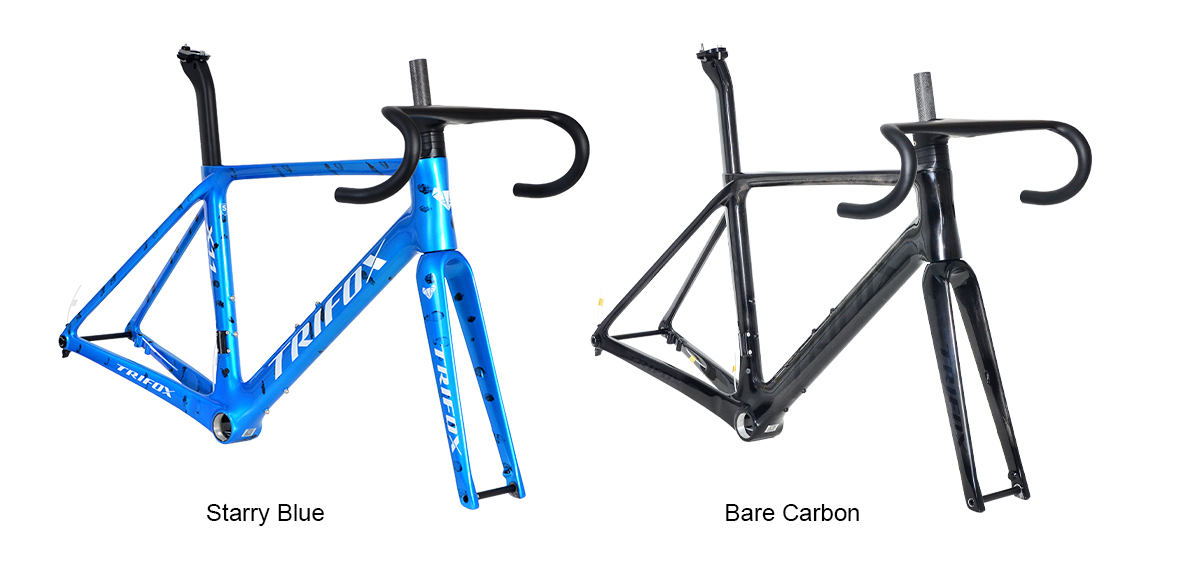

Paintings
Parameter
| Brand | Trifox |
| Model | X11 |
| Product Name | Bike Frameset X11 |
| Type | Road Bike Frame |
| Style | Full Internal Cable Routing Bike Frameset |
| Material | T800 Carbon Fiber |
| Sizes | XS(49cm)/S(52cm)/M(54cm)/L(56cm) |

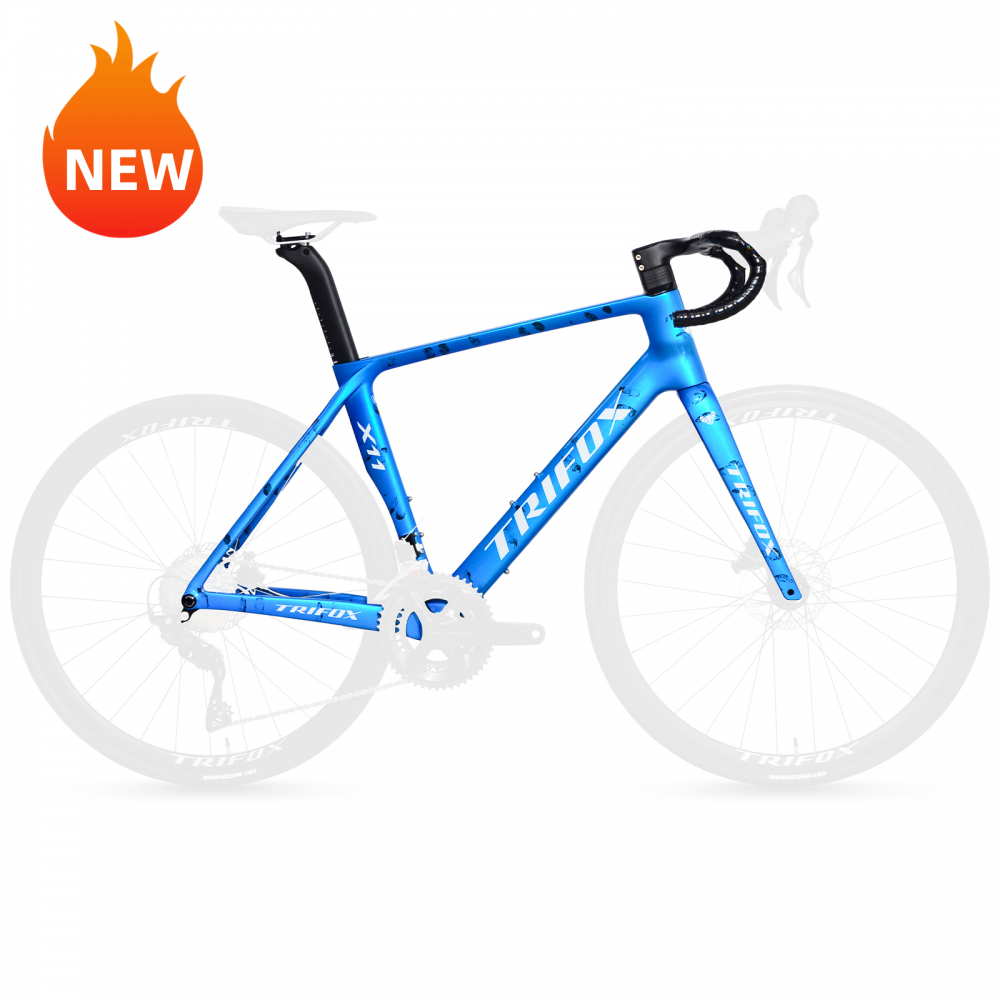

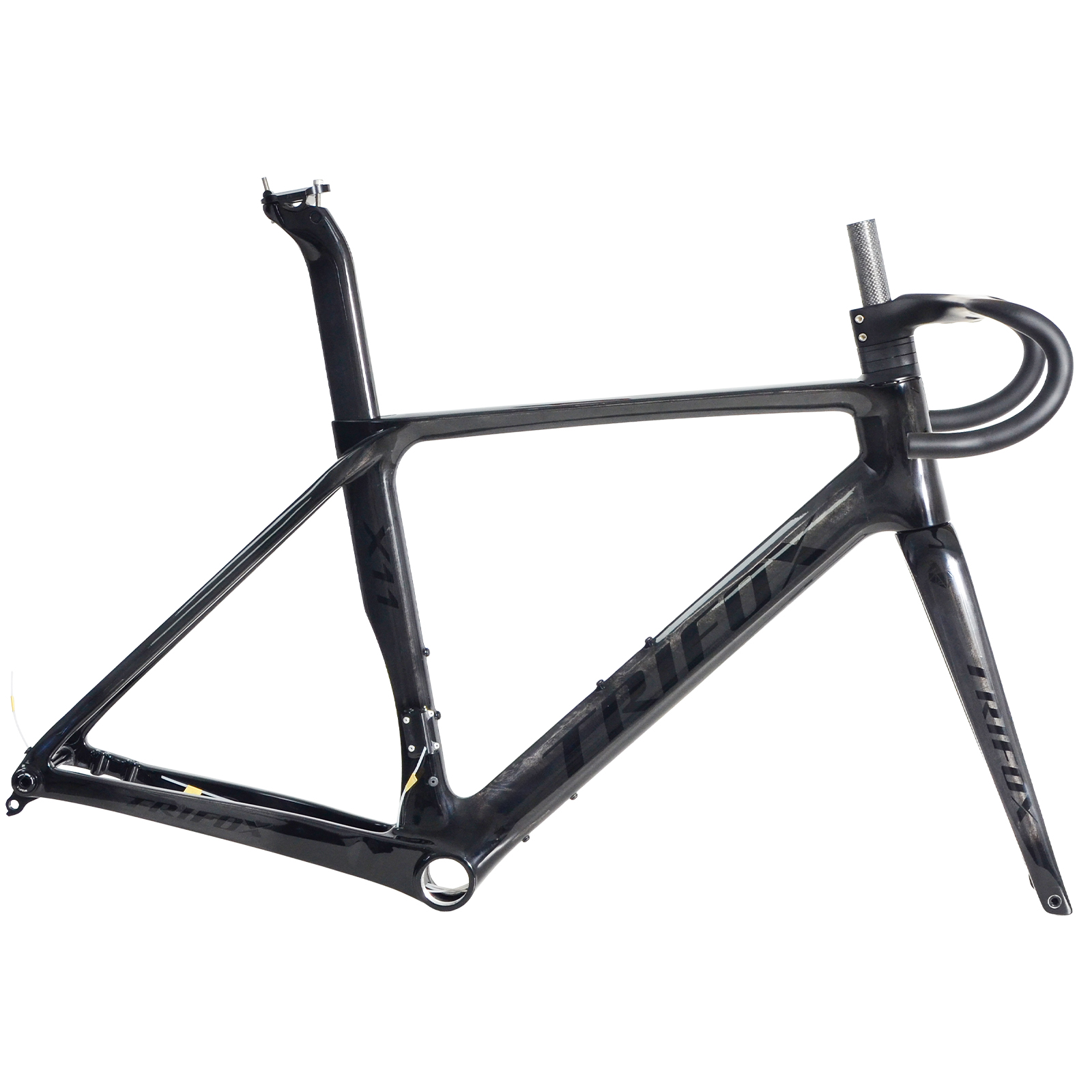

| Color | Starry Blue; Bare Carbon |
| Headset Size | Ø52 x 7mm |
| Bottom Bracket | T47 Bottom Bracket |
| Max Tire | 700 * 35C |
| Thru Axles | Rear:142mm*Ø12 |
| Front:100mm*Ø12 | |
| Disc Rotor | 140mm-160mm |
| Warranty | 2 Years |
| Seatpost insertion length | 7cm to 12cm |
| Package Content | 1 x Carbon Road Bike Frame X11 |
| 1 x Carbon Fork FX11 | |
| 1 x Carbon Seatpost SX11 | |
| 1 x Carbon Integrated Drop Handlebar DHX11 | |

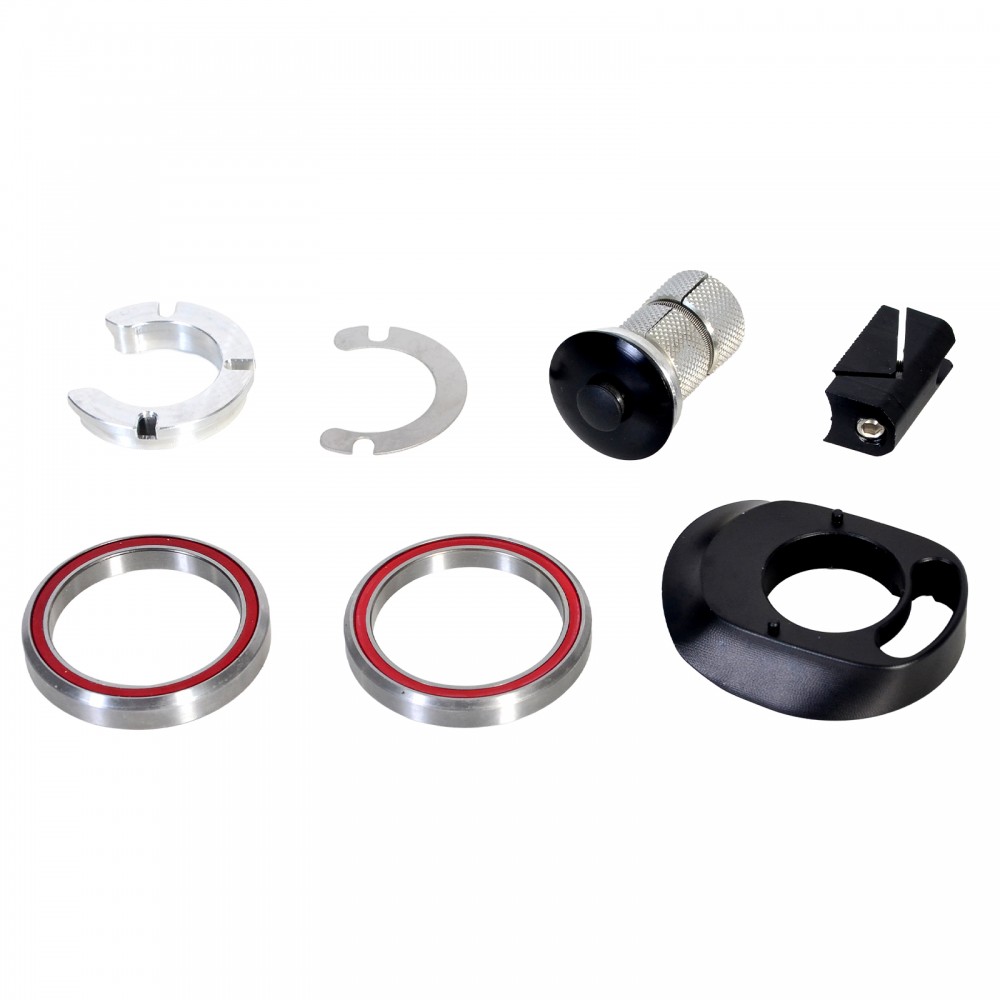

| 1 x Headset | |
| 1 x Rear UDH Derailleur Hanger HX11 |

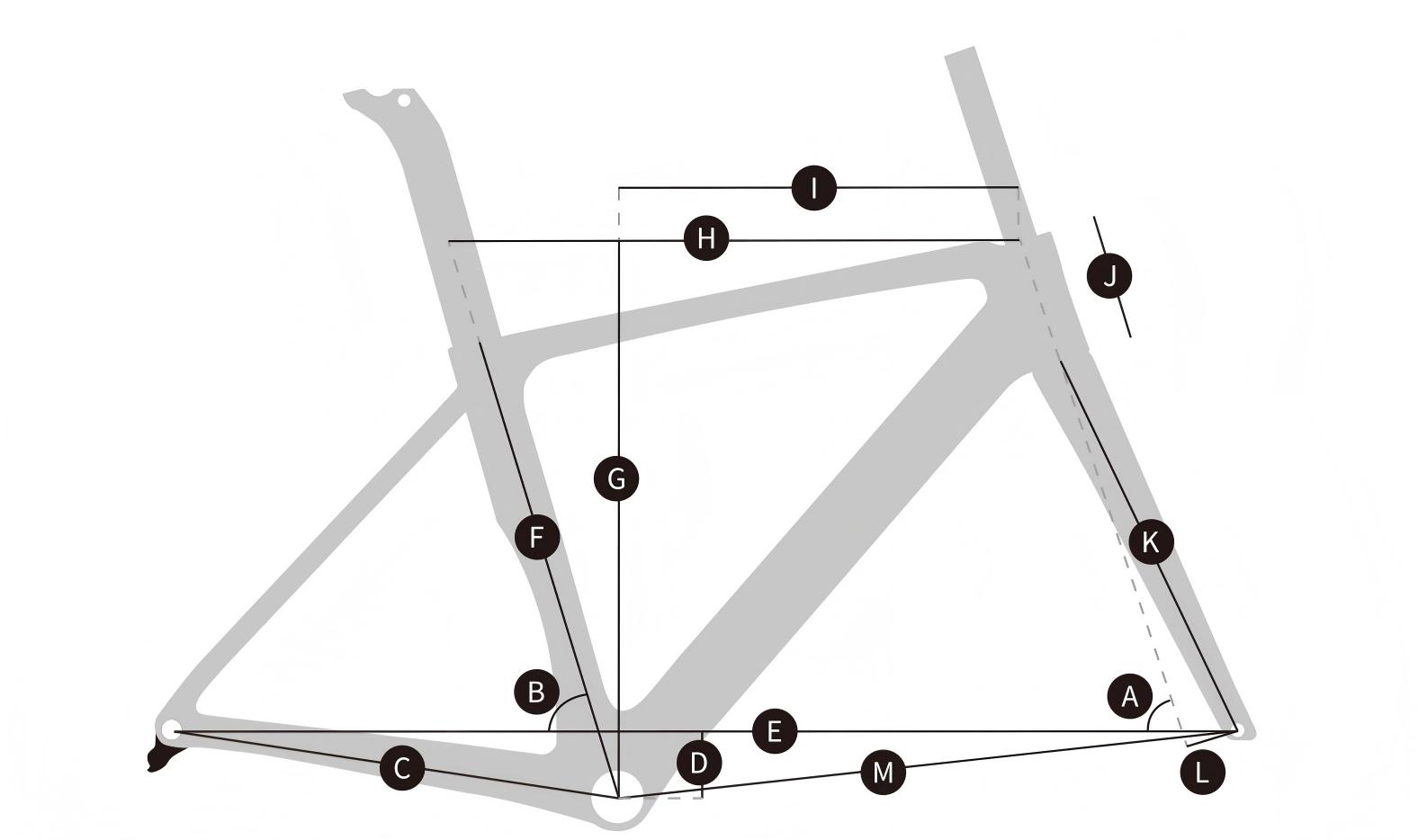

Product Geometry
| Frame Parts | XS(49cm) | S(52cm) | M(54cm) | L(56cm) | |
| Head Tube Angle | A(°) | 72 | 72 | 73 | 73 |
| Seat Tube Angle | B(°) | 74 | 74 | 73 | 73 |
| Chainstay Length | C(mm) | 415 | 415 | 415 | 415 |
| BB Drop | D(mm) | 60 | 60 | 60 | 60 |
| Wheelbase | E(mm) | 979 | 996 | 1000 | 1017 |
| Seat Tube Lenght | F(mm) | 400 | 431 | 463 | 481 |
| Stack | G(mm) | 510 | 534 | 558 | 580 |
| Top Tube Lenght Horizontal | H(mm) | 513 | 530 | 557 | 574 |
| Reach | I(mm) | 368 | 377 | 386 | 398 |
| Head Tube Length | J(mm) | 116.9 | 142.1 | 161 | 184.7 |
| Fork Lenght Full | K(mm) | 375.6 | 375.6 | 375.6 | 375.6 |
| Fork Rake/Offset | L(mm) | 50 | 50 | 50 | 50 |
| Front Center | M(mm) | 571 | 588 | 592 | 609 |
| Cyclist Height | N(cm) | 155-168 | 165-178 | 175-188 | 185-196 |
Size Recommend
| Frame Size | Recommend Height |
| XS(49cm) | 155-168cm |
| S(52cm) | 165-178cm |
| M(54cm) | 175-188cm |
| L(56cm) | 185-196cm |

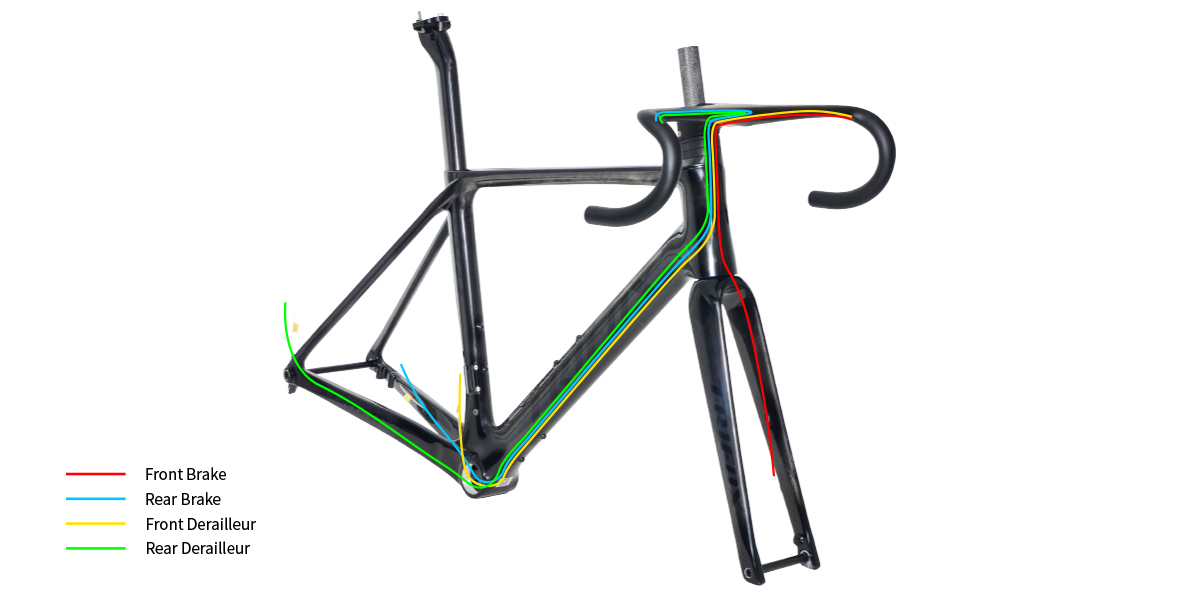

Internal cable routing diagram
Product Weight
| Bike Frame (only frame) ± 20g | |
| XS(49cm) | 965g |
| S(52cm) | 985g |
| M(54cm) | 1005g |
| L(56cm) | 1035g |
| Components ± 2g | |
| Rear Thru-Axle Skewer | 42g |
| Front Thru-Axle Skewer | 34g |
| Fork | 398g |
| Seatpost | 238g |
| Integrated Drop Bar - 90*400mm | 312 |
| Hanger | 30g |

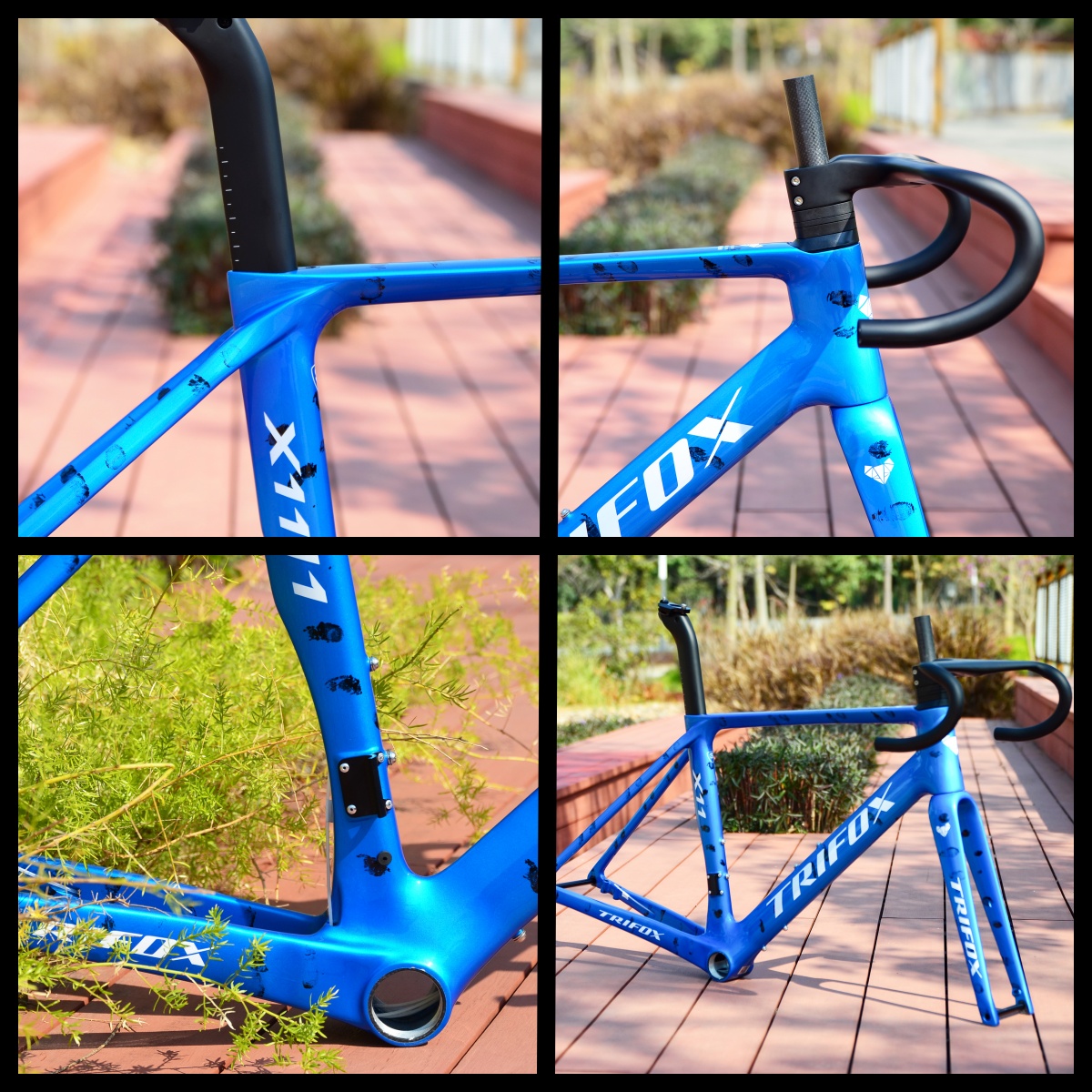

Product Details
