Carbon Road Bike Frame X12

17 Reviews
$ 689.99 $999.99 -31%
Painting:
Size:
  • xs-510mm
  • s-534mm
  • m-558mm
  • l-582mm
Qty:
In stock
Warranty policy, Learn More
Description

700C AERO Carbon Road Bike Frameset X12

Parameter

BrandTrifox
ModelX12
Product NameBike Frameset X12
TypeRoad Bike Frame
StyleAERO Frame
MaterialT800 Carbon
Fork Rake / Offset43mm
DropoutQuick Release
Weave3K
FinishMatte black with glossy color painting
Derailleur Cables RoutingInternal
Saddle installation methodLock up and down
Max Wheels & Tire Size700 x 25C
O.L.DFront: φ9x100mm
Rear: φ10x130mm
Headtube1-1/8" To 1-1/2" Tapered Integrated
Bottom BracketBSA - BB68 (φ 34mm, L 68mm)
Available sizesXS-510/ S-534/ M-558/L-582 mm
InstallableDI2 / Mechanical derailleurs
Warranty2 Years
Seatpost insertion length7cm to 12cm
Package Content1 x AERO Carbon Road Bike Frame X12
1 x AERO Fork
1 x AERO SeatPost
1 x Headset
1 x Aerostem
1 x Seatpost Clamp

The Trifox X12 is absolutely familiar to most cyclists, and its unique sinking aerodynamic shape ( Aerostem ) makes it competitive for the best rank in pneumatic road bikes. Since its birth, X12 has been endowed with innovation, fast speed, and fast response.

The new wiring mode of Trifox X12 is convenient for installation and maintenance.

Thanks to its excellent aerodynamics and unique design, Trifox X12 allows you to fly solo away from large groups or feel very active when riding on flat roads. It rewards your efforts with enough speed and can keep pace.

Thanks to the fact that X12 is a top AERO Frame, it performs extremely well on flat roads. When you accelerate away from a narrow corner or attack, it still responds quickly.

Product Geometry

Trifox Carbon Fibre Road Bike Frameset X12 Geometry

Product Geometry

SizeXSSML
A
(mm)
Stack510534558582
B
(mm)
Reach365375380384
C
(mm)
Head tube length116.9142.1161.0184.7
D
(°)
Head tuhe angle71.871.87373
E
(mm)
BB drop65656565
F
(mm)
Fork length full368368368368
G
(mm)
Fork rake/offset43434343
H
(mm)
Front Center560.7578.5584.4601.5
I
(mm)
Chainstay length405405405405
K
(mm)
Top tube length horizontal512.9530555.7572.9
L
(mm)
Seat tube lenght434459475508
M
(°)
Seat tube angle74747373

Internal cable routing diagram

700C Carbon Road Bike Frame X12 Internal cable routing diagram

Product Details

700C Carbon Road Bike Frame X12 Details 01700C Carbon Road Frameset X12 Details 02700C Carbon Road Frameset X12 Details 03

Product Weight

Size / ComponentsWeight
XS - 510mm1077g ± 20g
S - 534mm1125g ± 20g
M - 558mm1192g ± 20g
L - 582mm1199g ± 20g
AERO Fork368g ± 2g
AERO Seatpost243g ± 2g
AERO Stem - 90mm195g ± 2g
AERO Stem - 100mm196g ± 2g
AERO Stem - 110mm197g ± 2g

Real Shot

AERO Carbon Frame Road Bike X12 Real Shot

customers reviews ( 17 )

4 / 5.0
5 stars 88.3%
4 stars 11.8%
3 stars 0%
2 stars 0%
1 stars 0%
awesome frame, I do a full review here https://www.youtube.com/watch?v=Ju9Y3dWvXFY
2022-01-02 17:35:30
Great bike, looks amazing and was easy enough to assemble.
2022-01-02 15:41:16
El embalaje perfecto, el detalle que me ha dado Trifox y agradecer la paciencia de su servicio de atención al cliente. Me falta montarla pero me ha encantado todo, gracias
2021-12-18 05:46:00

By Sandy

Excellent frame. All the pieces arrived well wrapped in two weeks. The frame is stiff and the handlebar is so cool. I recommend this product.
2021-12-16 11:40:55
Beautiful designed and produced frame BUT;1) the top cap is not finished properly with big pitted holes on them (small problem)2) the BB shell BSA thread is filled with hardened epoxy on the leading edge of the threads which means l cannot even screw in my BB at all! No help from service except to start putting blame on me, so l had to solve the problem myself (also small problem) by using acetone and a small 24 TPI tapping tool to slowly dig out the epoxy from the leading edge.3) about a week after my order, the price of the same frame dropped to USD 499 !!! (l paid USD 689 !!!), that is a whopping USD 190 difference!4) in replacing the faulty top cap, l was asked to buy something small so l asked to purchase a spare rear deraileur hanger. I have to convince service that l shouldn't be made to pay for the USD 8 shipping fees when it can be put together with the replacement cap.5) you have one of the most expensive deraileur hanger in the world at USD30 !!!!
2021-11-29 12:11:37

By Donna

Thanks trifoxbike! I finally get the package before Xmas. All was good, the frame is light and the color looks so cool.
2020-12-18 02:01:00

By Bijan L

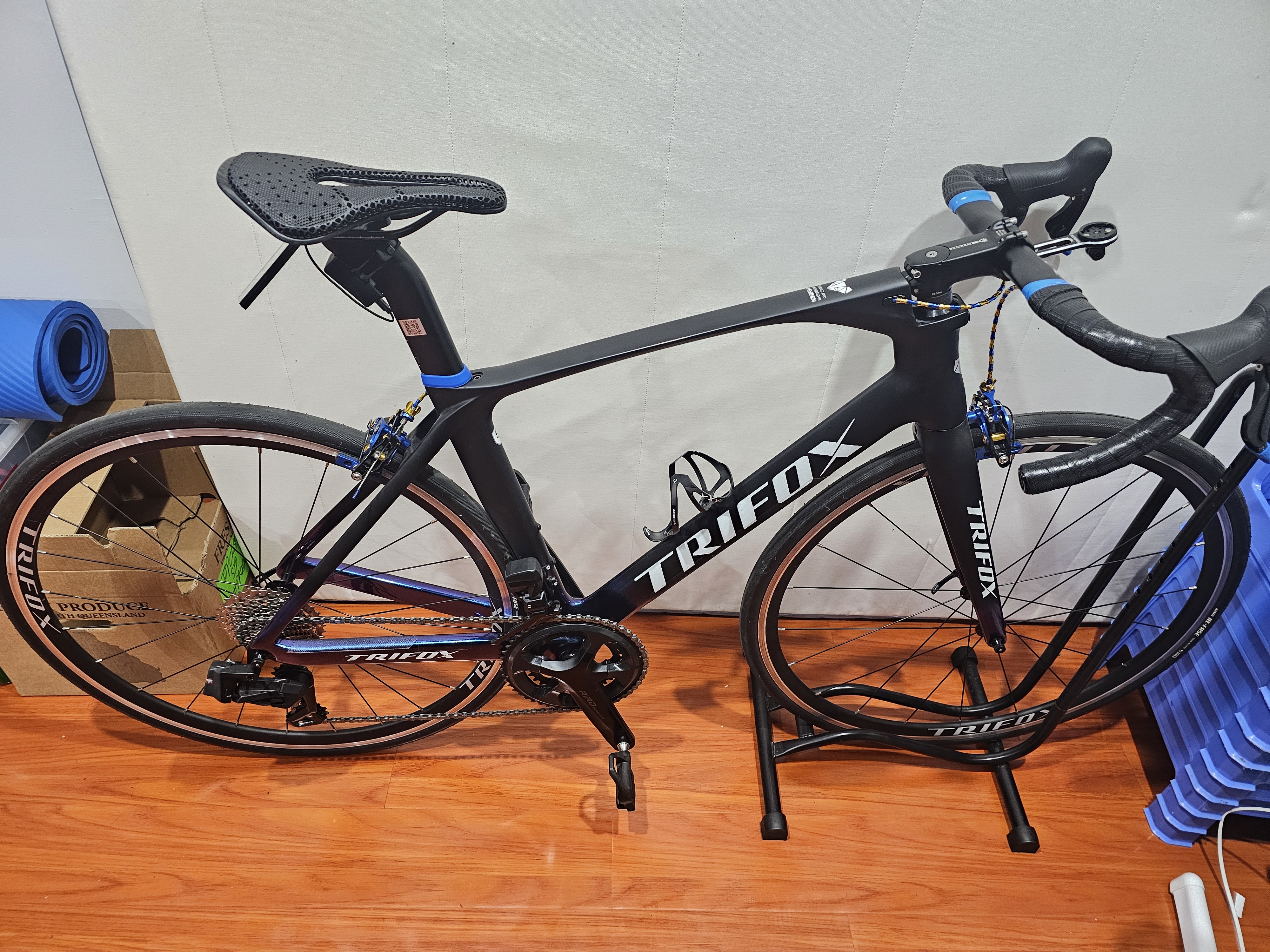

I just finished my bike. It looks awesome. The painting is amazing! Thanks for the fast shipping also!
2020-12-10 01:49:00

By Michael

Trifox carbon frame is great. The X12 is a great frame set. I’ve got over 2,000 miles in the last 4 months and it’s been great riding. Light and stiff.
2020-08-13 11:49:00

By Olin S

Solid FRAME for the price. You get what you paid for. Recommend.
2020-08-01 10:02:00

By Kristy

Absolutely beautiful frame. Lightweight and the paint looks awesome.
2020-07-29 10:20:00
