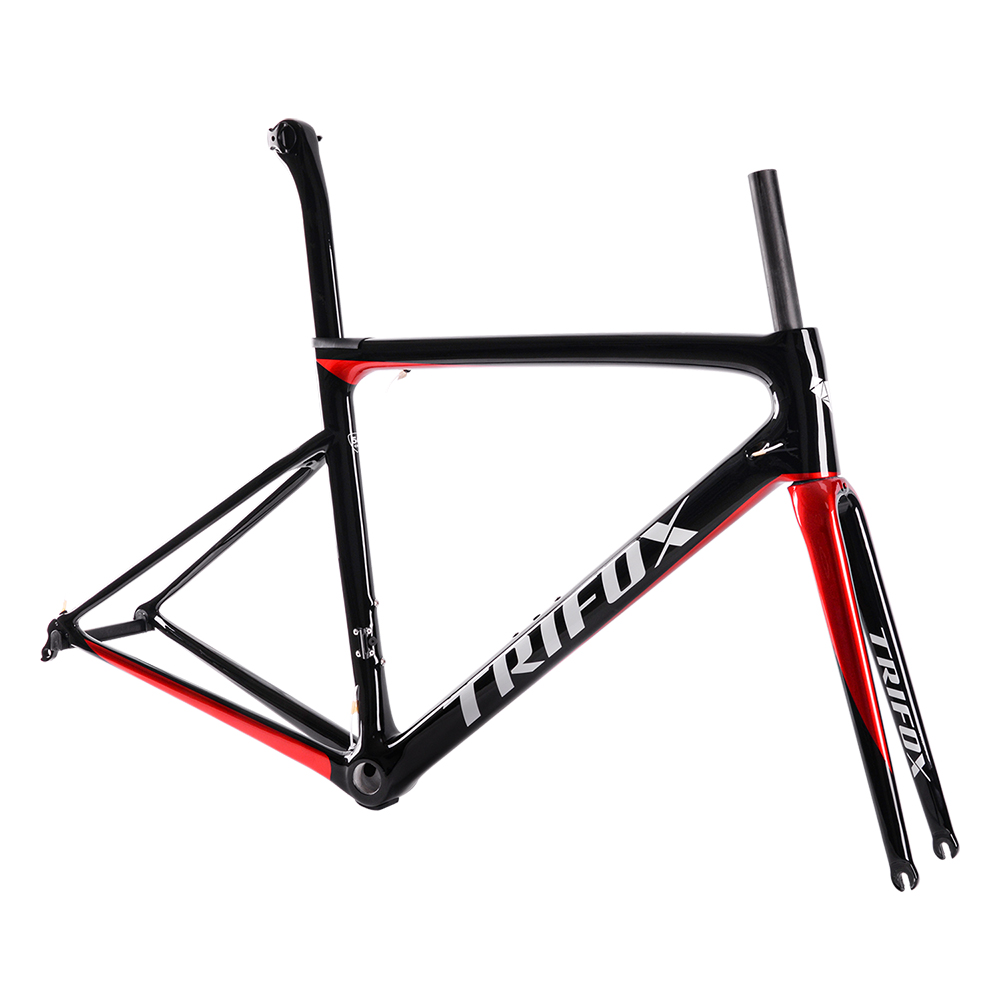

Carbon Road Bike Frame X16QR

5 Reviews
$ 649.90 $869.99 -25%
Painting:
Size:
  • 440-XS
  • 490-S
  • 520-M
  • 540-L
  • 560-XL
  • 580-XXL
Qty:
6
Preorder (About 30 Business Days)
Warranty policy, Learn More
Description

Lightweight Carbon Road Bike Frameset X16QR

Parameter

BrandTrifox
ModelX16QR
Product NameBike Frameset X16QR
TypeRoad Bike Frame
StyleSuper Light Bike Frame
Available sizes700C (44 / 49 / 52 / 54 / 56 / 58 cm)
Available ColorsChameleon Blue / Chameleon Purple / Hollow / Little Star / Red & White
MaterialT800 Full Carbon Fiber
FinishMatte black and glossy color painting
WeaveUD
Headtube1-1/8" To 1-1/2" Tapered Integrated
Bottom BracketBSA-BB68 (φ 34 mm, L 68 mm)
installableDI2 / Mechanical derailleurs
Max Wheels & Tire Size700 x 25C
O.L.DFront: φ9x100 mm; Rear: φ10x130 mm
Fork Rake / Offset50 mm
Braking SystemV Brake
saddle installation method:Lock left and right
DropoutQuick Release
Package Content1 x Carbon Road Bike Frame X16
1 x Fork
1 x Seatpost
1 x Headset
1 x Seatpost Clamp
1 x Rear Derailleur Hanger(on the frame)
Warranty2 years

Product Colors

Product Geometry

Trifox Bike Frame X16 Geometry
Frame Parts44cm49cm52cm54cm56cm58cm
StackA
(mm)
500514527544565591
ReachB
(mm)
365375380384395402
Head Tube LengthC
(mm)
105115126143163190
Head Tube AngleD
(°)
70.571.7572.57373.573.5
BB DropE
(mm)
747474727272
Fork Lenght FullF
(mm)
366366366366366366
Fork Rake/OffsetG
(mm)
474747444444
Front CenterH
(mm)
571574577579591606
Chainstay LengthI
(mm)
410410410410410410
WheelbaseJ
(mm)
9699739759789901005
Top Tube Lenght HorizontalK
(mm)
490508531540562577
Seat Tube LenghtL
(mm)
400431462481501522
Seat Tube AngleM
(°)
7675.5747473.573.5

Internal wiring diagram

Trifox carbon road bike frame X16QR Internal wiring diagram

Product Weight

Frame SizeWeight
44cm875g ± 30g
49cm887g ± 30g
52cm903g ± 30g
54cm914g ± 30g
56cm979g ± 30g
58cm987g ± 30g
FORK325g ± 2g
SEATPOST182g ± 2g

Product Details

Trifox lightest frameset X16QR Details 01Trifox cycle frameset X16QR Details 02Trifox carbon fiber bike frame X16 Details 03

Real Shot

Trifox carbon fiber cycle X16QR Real Shot

customers reviews ( 5 )

4 / 5.0
5 stars 80%
4 stars 20%
3 stars 0%
2 stars 0%
1 stars 0%
It arrived into the expected time. The frame quality looks good. I've tested it twice on the road and it worked perfectly. I think this frame is a good choice.

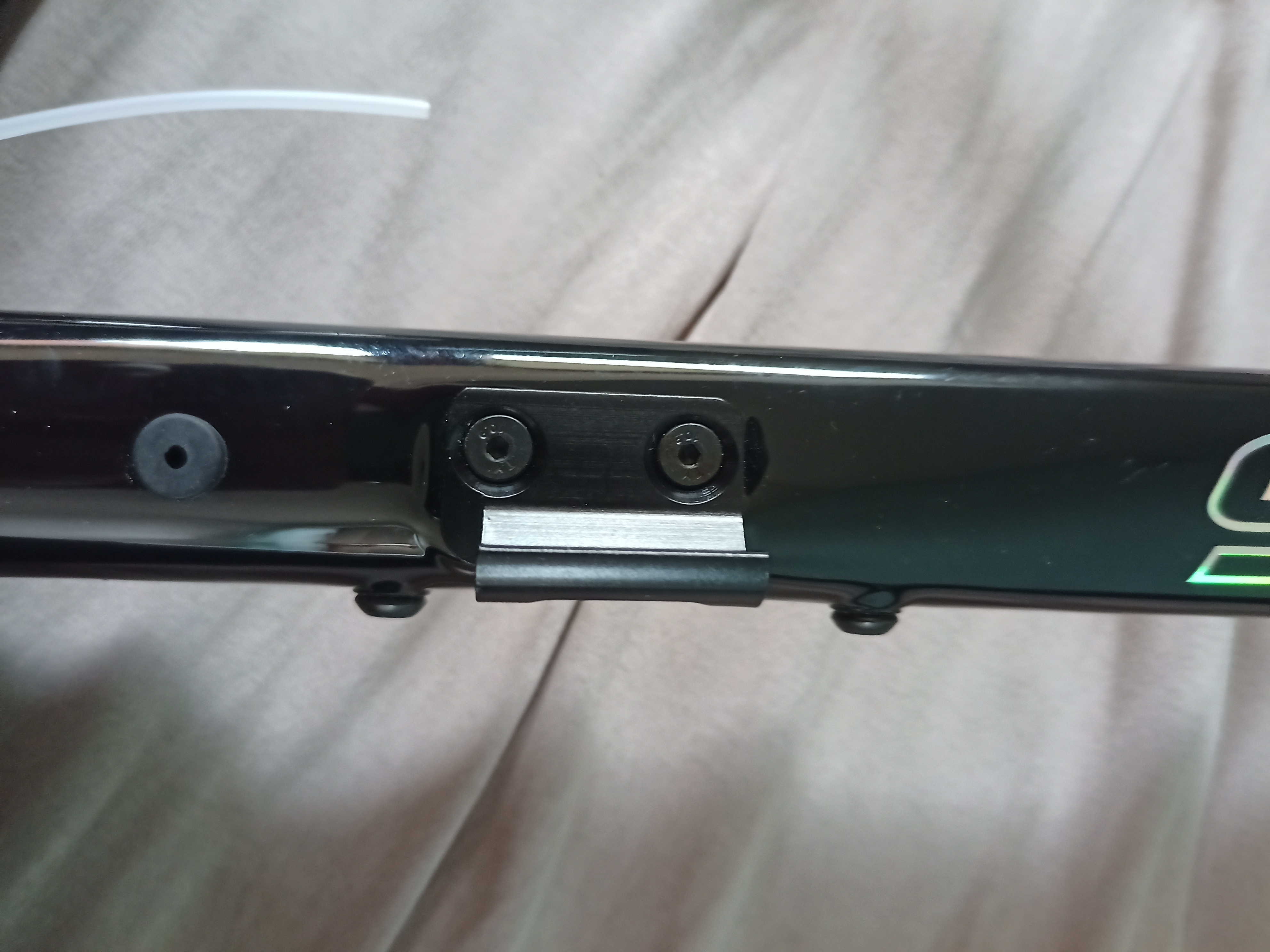

Review
2022-05-14 15:47:46
Very pleased overall. Required a bit of finesse in a few areas but overall very happy. Let's get into it:Pros: Frame, fork, seat post and the little bits (seat post clamp, headset, steerer compression plug, etc.) fit well and looked good except for the seat post clamp cover. The bike looked cleaner without the seat post clamp cover which is just a rubber flat piece that appears to be an after thought. Everything was packaged well and delivered in less than a week! Plenty of steerer tube length and seat post length for the wife (5'7" on a 54cm frame). Cable routing was easy and straight forward. The pre-installed guide tubes made it easy. The bottom access panel below the bottom bracket was easy to remove and replace to help route the derailleur cables. Only needed cable housing for the rear derailleur to frame, rear brake to frame, and four cockpit routings (rear brake to frame, both derailleurs to frame, and front brake lever to front brake caliper). Very clean and easy overall. Bottom bracket install was easy (BSA) and without issue. Shimano R7000 crankset spins smoothly. I was surprised by how good the color and paint looked and matched the image shown. It definitely changes colors, chameleon, but is also very true to the photo depending upon lighting.Cons:---Excess paint/overspray1) Rear Drop Outs - Would not accept new Shimano WH-RS500 properly. Had to sand/file a small amount of clear coat from the drop outs and the wheel sits perfectly.2) Rear Brake Caliper Mounting Hole - Would not accept new Shimano R7000 brake caliper bolt or nut. Had to sand/file a large amount of paint and clear coat from the hole to get the caliper and nut into mounting hole. Also, the rear brake caliper mounting hole leaves little clearance for tool access. It was accessible (~1mm excess clearance) but smaller frame sizes may have more difficulty depending upon design / placement.3) Saddle Clamp - Saddle clamp into the post was a bit difficult. Initially ended up spreading the saddle rails to get it to fit. Ended up sanding/filing some of the excess clear coat / paint away from the seat post through hole to get better engagement with the "Reese's Peanut Butter Cups" clamps which allowed better saddle engagement and security.---Front brake caliper, Shimano R7000, is at limit of pad adjustment and barely contacts rim adequately. This may become a concern once the brake pad wears as one side will wear "up" and the other side "down". The "up" side may contact the tire. https://www.youtube.com/watch?v=q4ay12CSF48&t=155s---Seat post could not be lowered into seat tube fully. There was excess layup material in the seat tube several inches down. Ended up cutting the seat post to fit so not a problem in the end, but not necessarily optimal.Wife says she likes the color and it is very light weight.Actual weights 54cm:Frame - 950 gSeat Post - 185 gFork - 360 gMisc frame set parts (headset, spacers, seat post clamp, etc.) - 192 gTotal -1687 g before trimming seat post and fork stem.Image of bike after initial spin... still tweaking some positions :)
2022-10-10 05:40:06

By Humberto

Very responsible, excellent service and fast action.
2021-12-13 02:36:07

By Joe Dowling

The frame was delivered to Ireland (Europe) in about 3 weeks in perfect condition, well packaged. A few weeks later I built the bike up using a combination of parts from an old bike and some new parts. It rides really well, I've had it up in 3 different mountain ranges around Ireland so far and it climbs beautifully (very light) and descends with no issues, very stable. Love it !!
2021-08-09 05:28:00

By Miranda W

I bought the frame for my son. It was beautiful than expected. Five scores for sure!
2020-12-25 06:36:00
