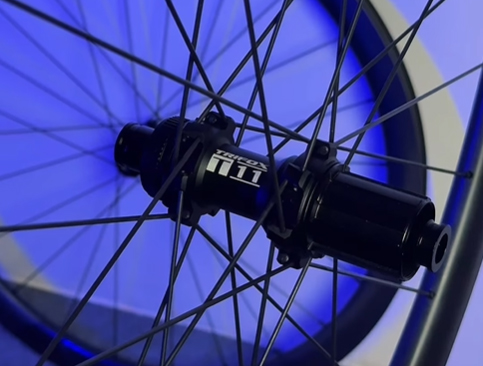

Your disc brake wheelset's hub is the critical link between your drivetrain and your stopping power. Choose wrong, and you'll face compatibility headaches or costly fixes. Here's how to match your hub to your drivetrain flawlessly, using the Trifox T11 Centerlock Road Hub as an example.

1. Axle Standard First:

- What it is: How the hub attaches to your frame (fork/rear triangle). Common standards:

Road: Quick Release (QR), 12x100mm (front), 12x142mm (rear) thru-axle.

Gravel: Often 12x100mm front, 12x142mm rear, but sometimes Boost (110/148mm) for wider tires.

- Why it matters: Your frame dictates this. The Trifox T11 Hub typically offers 12x100mm front and 12x142mm rear thru-axle options – the current road standard. Check your frame specs!

2. Brake Interface:

- Centerlock (CL): Uses a lockring to secure the rotor (like a cassette). Requires specific CL rotors. Lighter, simpler installation.

- 6-Bolt (ISO): Uses 6 bolts to attach the rotor. Compatible with almost all rotors.

- The Trifox T11 is Centerlock, meaning you need CL rotors (Shimano, SRAM, TRP, etc., offer them). Choose CL for its clean look and ease.

3. Drivetrain Compatibility: The FREEHUB BODY:This is crucial! The freehub body determines which cassette fits.

- Shimano/SRAM Road 8/9/10/11-speed: Uses the HG (Hyperglide) freehub body. This is the most common. The Trifox T11 uses a standard HG freehub, compatible with Shimano Tiagra, 105, Ultegra, Dura-Ace (11s & below), SRAM Apex, Rival, Force (11s & below).

- Shimano 12-speed Road (Dura-Ace R9200, Ultegra R8100): Requires the new Micro Spline freehub body. Not compatible with HG.

- SRAM XDR: Used for SRAM's 12-speed road cassettes (especially the 10-28t, 10-30t). Requires an XDR freehub body.

- Campagnolo: Requires a specific Campagnolo freehub body. Not compatible with HG.

Why the Trifox T11 HG Hub is a Smart Choice:

For riders using Shimano 11-speed or below (like Tiagra 4700, 105 R7000, Ultegra R8000) or SRAM 11-speed road groups, the HG freehub is perfect. It's the universal standard for this tier, ensuring easy cassette compatibility and future wheel upgrades. Combined with its durable Centerlock interface and standard road thru-axles, it's a reliable, high-value foundation for a performance road wheelset.



The Takeaway:

Don't overlook the hub! Match these three elements:

1. Axle Standard (Match your frame: e.g., 12x100/142mm)

2. Brake Interface (Choose CL or 6-Bolt; T11 uses CL)

3. Freehub Body (Match your cassette: T11 uses HG for Shimano/SRAM 11s & below)

Choosing correctly ensures smooth shifting, secure braking, and a hassle-free ride. The Trifox T11 exemplifies a well-specified, versatile hub for mainstream road drivetrains. Double-check your specs before you buy!
