A carbon integrated drop bar is one of the most transformative upgrades you can make to your road bike. It cleans up your cockpit, improves aerodynamics, and delivers a level of stiffness and feedback that traditional bar-and-stem setups simply can’t match. But with the Trifox DHB1000 available in three widths (360mm, 380mm, 400mm) and three stem lengths (90mm, 100mm, 110mm), choosing the right combination is essential to unlocking its full potential. Here’s how to select the perfect fit.



1. Handlebar Width: Match Your Shoulders

Your handlebar width should be determined by the width of your shoulders—specifically, the distance between the bony protrusions at the top of your shoulders (your acromioclavicular or AC joints). This measurement, in centimeters, is your starting point.

Width by Shoulder Width:

• Less than 38cm → 360mm
• 38–40cm → 380mm
• More than 40cm → 400mm

A bar that matches your shoulder width promotes a natural, neutral wrist position, reduces strain on your neck and shoulders, and improves breathing and power output on the bike.

Narrower Bar (360mm): A 360mm bar reduces your frontal area, making you more aerodynamic. It suits riders with narrower shoulders or those who prioritize an aggressive, aero position—common among racers and time-trialists.

Wider Bar (400mm): A 400mm bar offers more leverage and stability, especially on descents. It suits riders with broader shoulders or those who prefer more control and confidence when cornering at speed.

Middle Ground (380mm): The 380mm option is the most popular choice, striking a balance between aerodynamics and control for the majority of riders.

2. Stem Length: Dial in Your Reach

The stem length determines how far you stretch to reach the handlebars. Getting this right is critical for comfort and power transfer.

For most road bikes, the ideal stem length falls between 90mm and 110mm, which makes the DHB1000’s options perfectly suited for a wide range of riders.

Stem Length Guide:

• 90mm – Shorter reach = more upright, quicker steering. Best for smaller frames or riders wanting less stretch.
• 100mm – The balanced “sweet spot”—neutral handling and reach. Suits most riders with average proportions.
• 110mm – Longer reach = more stretched, stable, aero position. Best for larger frames or flexible riders.

Choose 90mm if you have a smaller frame, shorter arms, or prefer a more upright, comfortable position.
Choose 100mm if you’re of average height and proportions—it’s the most common and versatile length.
Choose 110mm if you have a larger frame, long arms, or ride in an aggressive, stretched-out racing position.

Beyond Width and Length: Reach and Drop

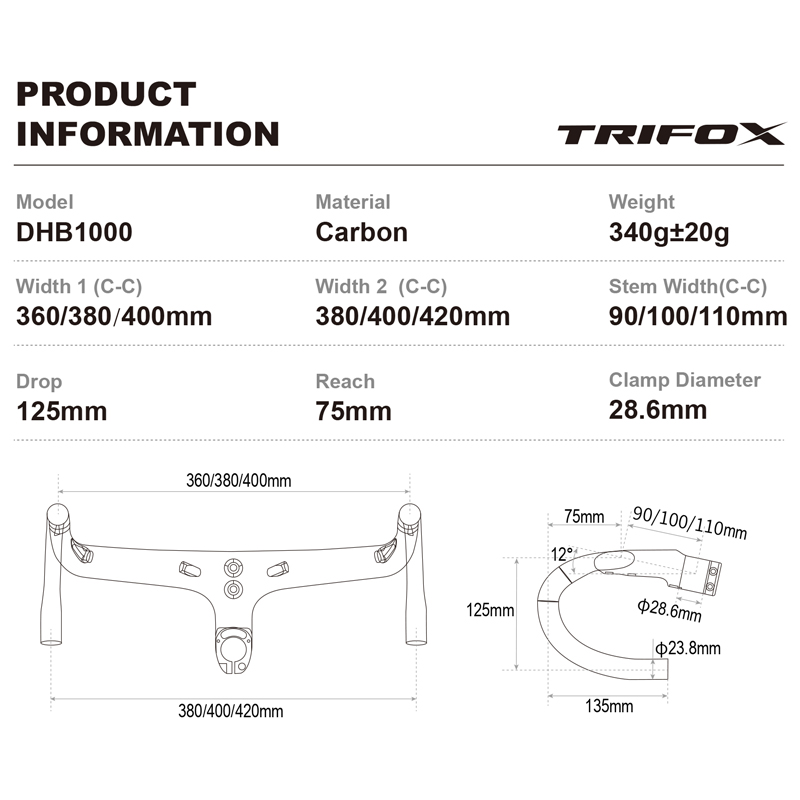

The DHB1000 features a 75mm reach (compact) and a 125mm drop (moderate). These numbers are just as important as width and stem length.

75mm Reach: This compact reach is forgiving on your lower back and shoulders, making it ideal for long rides without sacrificing an efficient aero position.
125mm Drop: This moderate drop makes it easy to transition from the hoods to the drops, reducing wrist and neck strain while still allowing you to get low when you need to sprint or descend.

The DHB1000: A Premium Integrated Cockpit

The Trifox DHB1000 is a carbon integrated drop bar that combines these adjustable dimensions with the benefits of a one-piece design. Constructed from T800 carbon fiber, it delivers the stiffness needed for precise handling and the vibration damping that keeps you comfortable on long rides. With fully internal cable routing, this best carbon bars for road bike option not only looks pro but also reduces drag and protects your cables from the elements. Available in 360mm, 380mm, and 400mm widths, and 90mm, 100mm, and 110mm stem lengths, the DHB1000 allows you to dial in your perfect cockpit fit.
