For years, mountain bikers believed you had to choose: an efficient climbing bike or a confident descending bike. A short-travel XC race machine would dance up climbs but leave you white-knuckled on steeps, while a long-travel bruiser could plow through anything but felt like pedaling a couch uphill. The compromise seemed inevitable — until modern carbon full‑suspension engineering changed the rules.

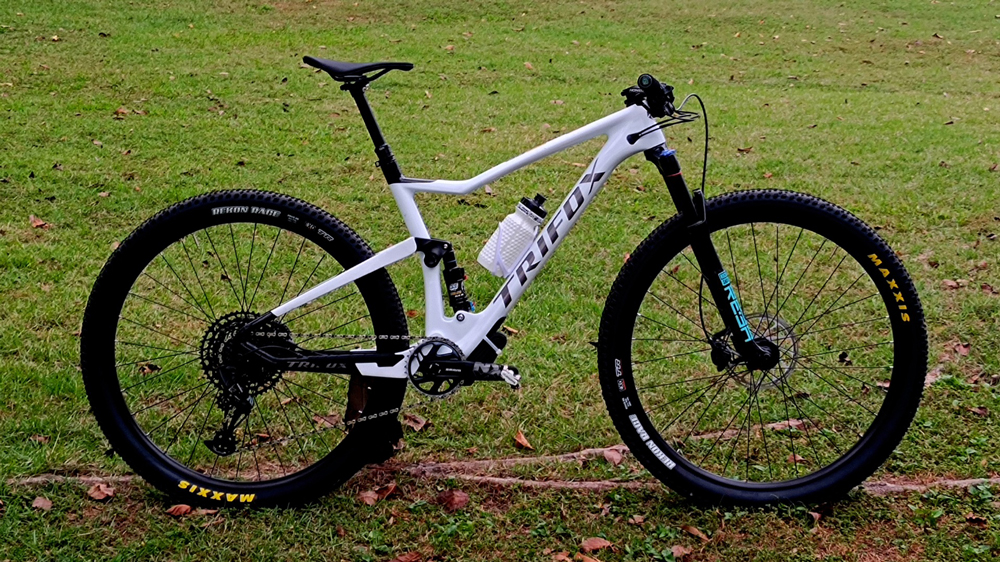

The Trifox MFM100 frameset is designed to deliver the best of both worlds. Whether you‘re chasing a podium in an XC race or enjoying an all‑day trail adventure, this T800 carbon platform proves you can have climbing efficiency and descending confidence in one bike.



Geometry: The Foundation of Versatility

A frame’s geometry determines how it responds to rider input. The MFM100 uses a carefully balanced 68.5° head tube angle and 74.7° seat tube angle — numbers that sit right in the sweet spot between XC urgency and trail stability.

The slightly slacker head angle (compared to traditional XC bikes) provides confidence on descents, keeping the front wheel planted and stable at speed. Meanwhile, the steeper effective seat tube angle places the rider directly over the bottom bracket for efficient power transfer on climbs. This combination creates a bike that climbs with authority and descends with composure — no compromises needed.

For riders in the market for a medium bike frame, the MFM100’s M size (17.5“) offers a 440mm seat tube and a generous 470.2mm reach, providing a spacious yet planted cockpit for riders from 170‑185cm. The proportional geometry across all four sizes (XS, S, M, L) ensures every rider gets the same balanced handling characteristics.

Suspension Kinematics: The Science of Simultaneous Efficiency

The real magic happens in the rear suspension. The MFM100 employs a Horst‑link four‑bar linkage, a proven design that separates pedaling forces from bump forces. The key is the anti-squat curve — a measure of how the suspension resists compressing under pedaling loads.

At the sag point (where the bike sits with a rider on board), the anti-squat is tuned high enough to resist pedal bob, keeping the bike stable and efficient during seated climbing. But deeper in the travel, the anti-squat tapers off, allowing the suspension to absorb impacts without harshness. Meanwhile, the anti-rise curve (which affects suspension behavior under braking) is tuned to keep the rear wheel active and glued to the trail even when you‘re grabbing anchors on a steep chute.

This sophisticated kinematics tuning is paired with a Trunnion‑mounted rear shock — a design that reduces friction and allows for a more linear, predictable suspension feel. The Trunnion mount eliminates long eyelets, saving weight and enabling cleaner frame lines, while improving small‑bump sensitivity for better traction on loose or choppy terrain.

Together, these design elements create a bike that climbs with the urgency of a hardtail (no wasted energy from pedal-induced bob) yet descends with the plushness and control of a bike with much more travel.

Carbon Construction: Where Stiffness Meets Compliance

Carbon fiber’s anisotropic nature is the final piece of the puzzle. Unlike aluminum, which has uniform stiffness in all directions, carbon allows engineers to orient fibers to be stiff exactly where needed and compliant exactly where desired.

In the MFM100’s T800 carbon layup, high‑modulus fibers are oriented along the downtube and chainstays to resist pedaling forces and prevent wasteful flex. Yet the same structure allows controlled flex in the seatstays, absorbing rear‑wheel impacts and reducing vibration transmitted to the rider. This selective stiffness is the reason a carbon full-suspension frame can feel both rigid under power and forgiving over rough ground.

The result is a frame that weighs just 2,235g (size M, including hardware) — impressively light for a full‑suspension chassis — yet provides the lateral rigidity needed for precise cornering and the vertical compliance that keeps you fresh hour after hour.

Boost Spacing and Modern Standards

The MFM100 fully embraces modern mountain bike standards. Boost 148x12mm rear spacing (with a 15x110mm fork interface) widens the hub flanges, creating a stiffer, stronger rear wheel that tracks more accurately through corners and resists flex under hard pedaling. Internal cable routing keeps the frame clean and protects hoses from trail debris.

Real‑World Rider Feedback

Riders who have built up the MFM100 consistently praise its balanced character. One owner noted the bike is “very fast and rigid … the suspension behaves very well, absorbing small irregularities in the terrain and it does not rock anything at all.” Another described it as “very reactive when you hit it with acceleration … the force you apply to the pedals goes directly to the wheels.” On descents, users report that the bike “tracks straight on steep, rocky runs” and stays composed under hard hits. This is the combination that makes a frame truly versatile: efficient power transfer for climbs and predictable, planted stability for descents.

Value: Premium Performance Without the Premium Price

Historically, a full‑carbon, full‑suspension frame with this level of engineering cost $2,000‑$3,000. The MFM100 disrupts that paradigm entirely. At just $899 (frequently on sale at $699‑$789 for certain sizes), it is a genuine best carbon frameset under 1000 — a full modern‑geometry, T800 carbon, Boost‑spaced chassis at a price normally reserved for high‑end aluminum frames.

To achieve this value, Trifox uses a direct‑to‑consumer model, eliminating retail markups. The result is a frame that punches well above its price class, offering the kind of balance between climbing and descending that typically requires spending two or three times as much.

Who Is This Frame For?

The MFM100 is the ideal platform for:

- Cross‑country racers who want efficient pedaling on climbs without sacrificing control on technical descents.
- Trail riders who cover varied terrain — climbs, descents, flow trails, and chunky sections — all in a single ride.
- Riders upgrading from an entry‑level hardtail, seeking the comfort and control of full suspension without a five‑figure investment.
- Value‑conscious builders who want a modern, capable, lightweight full‑suspension platform that won’t break the bank.

You no longer have to choose between a climbing bike and a descending bike. The Trifox MFM100 carbon full‑suspension frame proves that careful geometry, sophisticated suspension kinematics, and intelligent carbon layup can deliver the best of both worlds. It climbs with efficiency, descends with confidence, and offers exceptional value for riders who want a true one‑bike solution. Whether you‘re racing XC or exploring new trails, this frame is ready.
